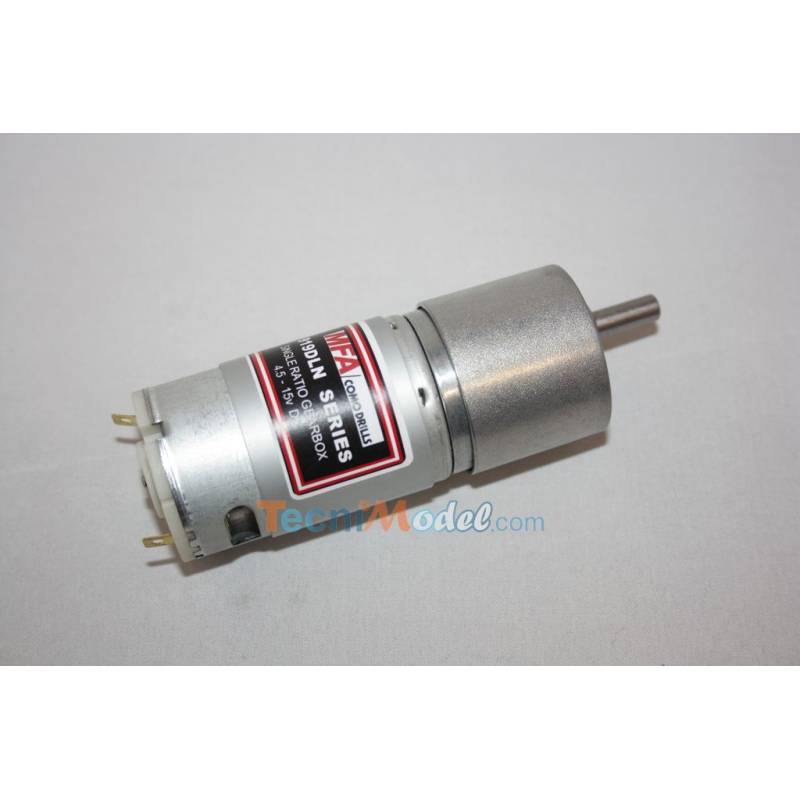

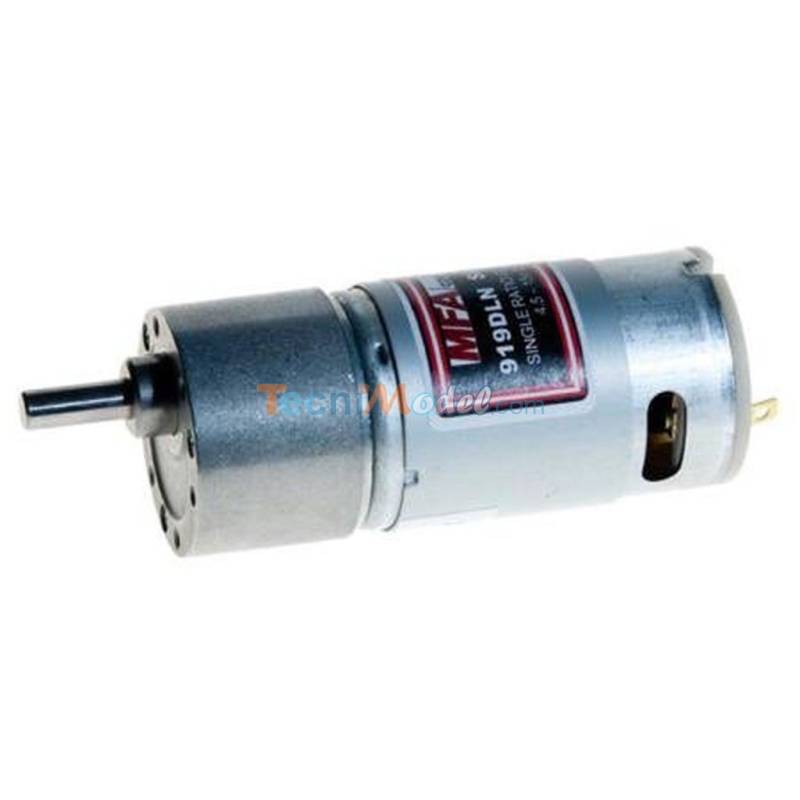

Gear motor 540 5 poles 100:1
REF MFA 919D1001LN
100:1 discount
This new generation of gearboxes is equipped with 540 type 5-pole engines which gives them a much greater torque (about 45% more than the standard engine) as well as a clear reduction in engine operating noise.

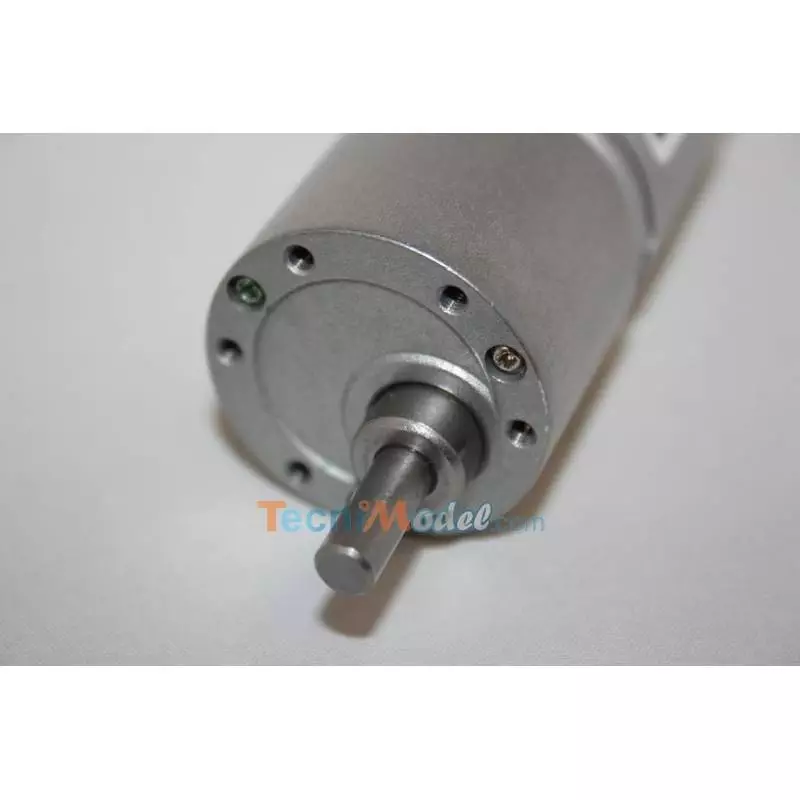

Shaft diameter Ø 6 mm, off-axis output.
See the attached document ( "download" on this page) for technical information.
Engine information:
| Empty | At maximum yield | ||||||||
| Voltage range | Nominal voltage | speed (rpm) | Conso (A) | speed (rpm) | Conso (A) | torque (g/cm) | Power (W) | Yield (%) | Blocking torque |
| 4.5v 15v | 12v CONSTANT | 6000 | 0,25 | 5216 | 1,26 | 206 | 11 | 73 | 1756 |
Table of output speeds (in rpm, ) as a function of the supply voltage:
| 4.5v | 6v | 9v | 12v | 15v | |
| 919D1001LN | 21 | 28 | 45 | 59 | 76 |
919DLN.pdf
Documentation gearmotor 919DLN
