MAX Gear Motor 6:1 gearbox
MAX Gear Motor 6:1 gearbox
Reference : MOKR42276
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB02
MAX Gear Motor 6:1 from Krick
Krick 42276
Made in the EU
MAX GEAR geartrains are characterized by their quiet operation and low power consumption. Universally applicable for many applications. Whether as a boat propulsion or as a slow-rotating engine for special functions, MAX GEAR gearboxes are the solution.
Depending on the reduction ratio, the gearboxes are designed with one or more stages. Sturdy metal gears are installed in the closed gearbox. The metal housing keeps noise levels very low.

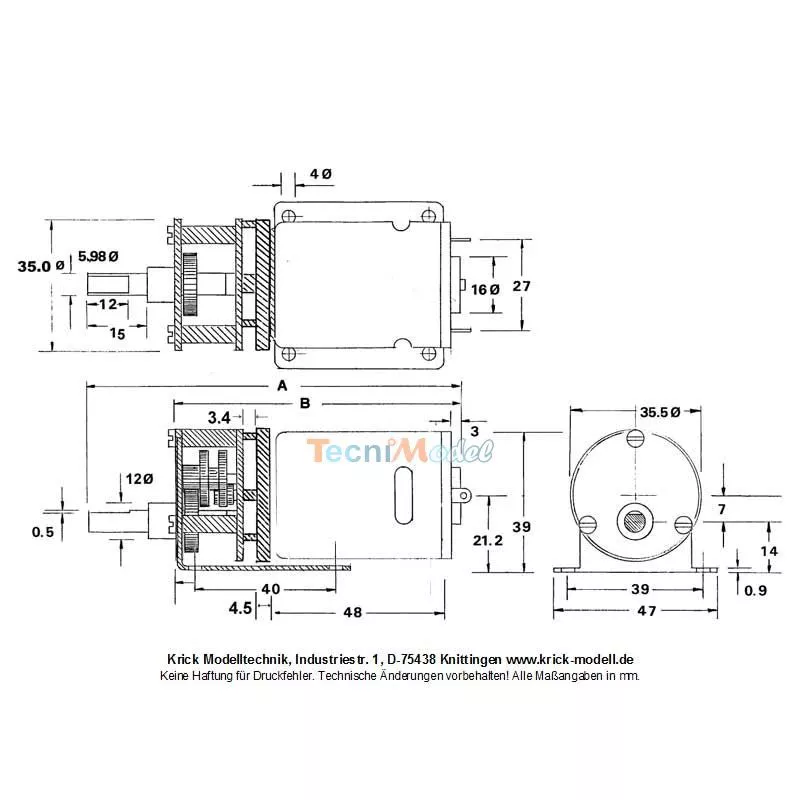

Technical specifications
- Reduction ratio 6: 1
- Weight 274 g
- Dimensions LxHxL 92 x 40 x 47 mm
- output shaft 6 x 15 mm
- Height output shaft approx. 14 mm
- Dimensions of the engine housing 36 mm x 50 mm
- Voltage range 4.8 - 14.4 V
- Current consumption at 12 V approx. 0.5 A without load
- Current consumption at 12 V approx. 2.95 A at max. Efficiency
- Output speed at 12 V approx. 2600 rpm
- Blocking current max. 12 A
- Torque 73 Ncm
- Antiparasiality
