MAX Gear Motor 2.5:1 gearbox
Krick 42275
MAX GEAR gearbox are characterized by their quiet operation and low power consumption. Universally applicable for many applications. Whether as a boat propulsion or as a slow-rotating engine for special functions, MAX GEAR gearboxes are the solution.
Depending on the reduction ratio, the gearboxes are designed with one or more stages. Sturdy metal gears are installed in the closed gearbox. The metal housing keeps noise levels very low.
Content of the delivery:
- Motor with gearbox 2.5: 1 mounted
- Fixed motor mounting bracket
- instruction

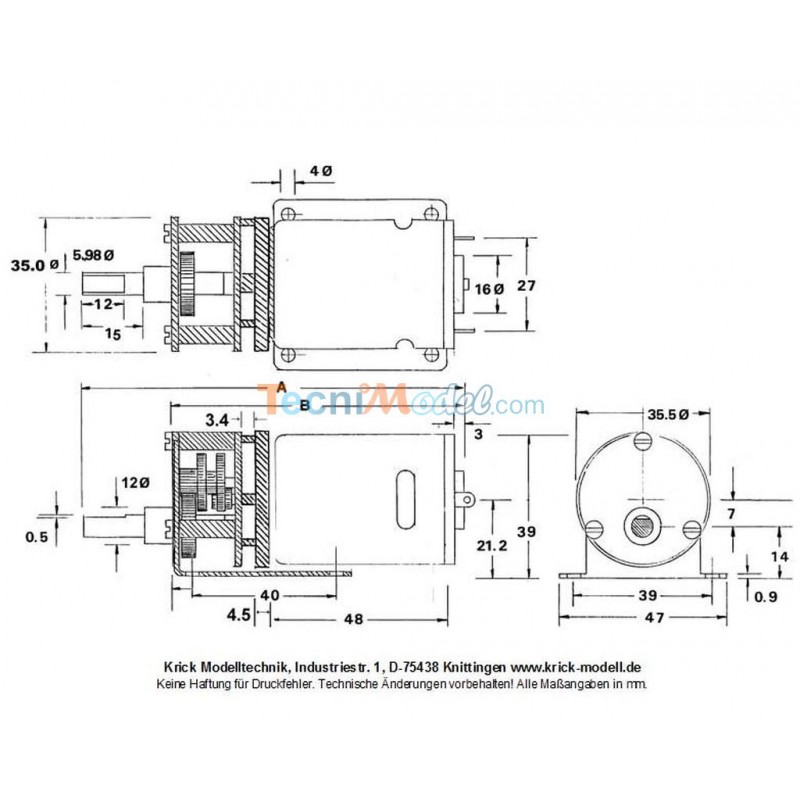

Technical specifications:
- Reduction ratio 2.5: 1
- Weight 270 g
- Dimensions LxHxW 101 x 40 x 47 mm
- output shaft Ø6mm x 15mm
- Shaft outlet height approx. 14 mm
- Engine housing dimensions 36 mm x 50 mm
- Voltage range 4.8 - 14.4 V
- Current consumption at 12 V approx. 0.5 A without load
- Output speed at 12 V approx. 6320 rpm without load
- Current consumption at 12 V approx. 2.95 A at max. Efficiency
- Output speed under load at 12 V approx. 5360 rpm at max. Efficiency
- Blocking the current max. 12 A
- Torque 30 Ncm
- No suppressors installed.
