AA08

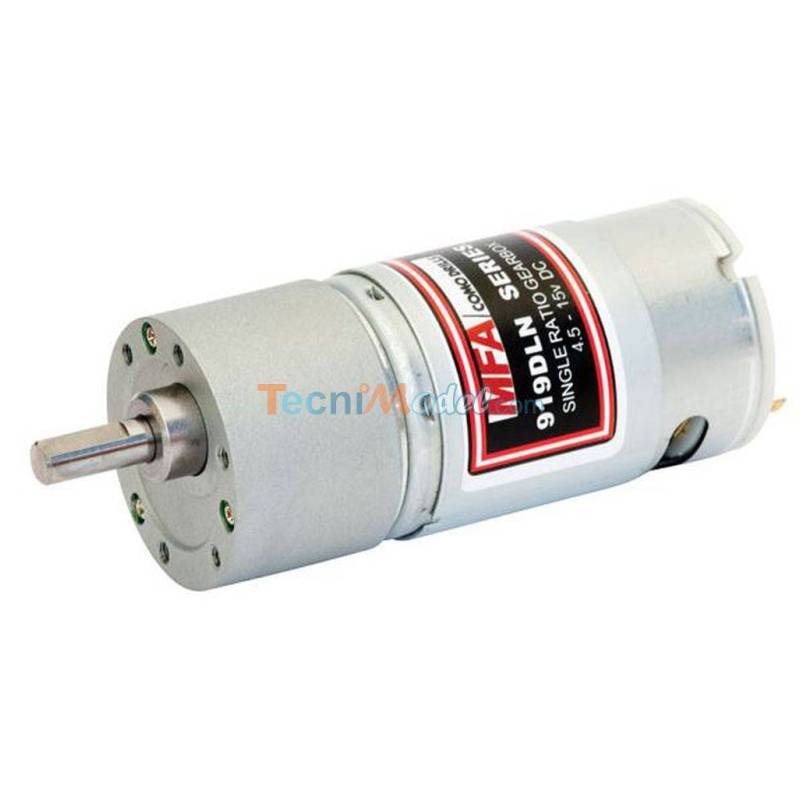

540 5 pole 6:1 gearbox
MFA 919D61LN
6:1 discount
This new generation of gearboxes is equipped with 540 type 5-pole engines which gives them a much greater torque (about 45% more than the standard engine) as well as a clear reduction in engine operating noise.
Shaft diameter Ø 6 mm, off-axis output.
See the attached document ( "download" on this page) for technical information.
Engine information:
| Empty | At maximum yield | ||||||||
| Voltage range | Nominal voltage | speed (rpm) | Conso (A) | speed (rpm) | Conso (A) | torque (g/cm) | Power (W) | Yield (%) | Blocking torque |
| 4.5v 15v | 12v CONSTANT | 6000 | 0,25 | 5216 | 1,26 | 206 | 11 | 73 | 1756 |
Table of output speeds (in rpm, ) as a function of the supply voltage:
| 4.5v | 6v | 9v | 12v | 15v | |
| 919D61LN | 350 | 478 | 735 | 992 | 1262 |
