Hobbywing U-Bec 10A (2-6S) v2

U-Bec 10A V2 from 2 to 6S

Hobbywing 30603003

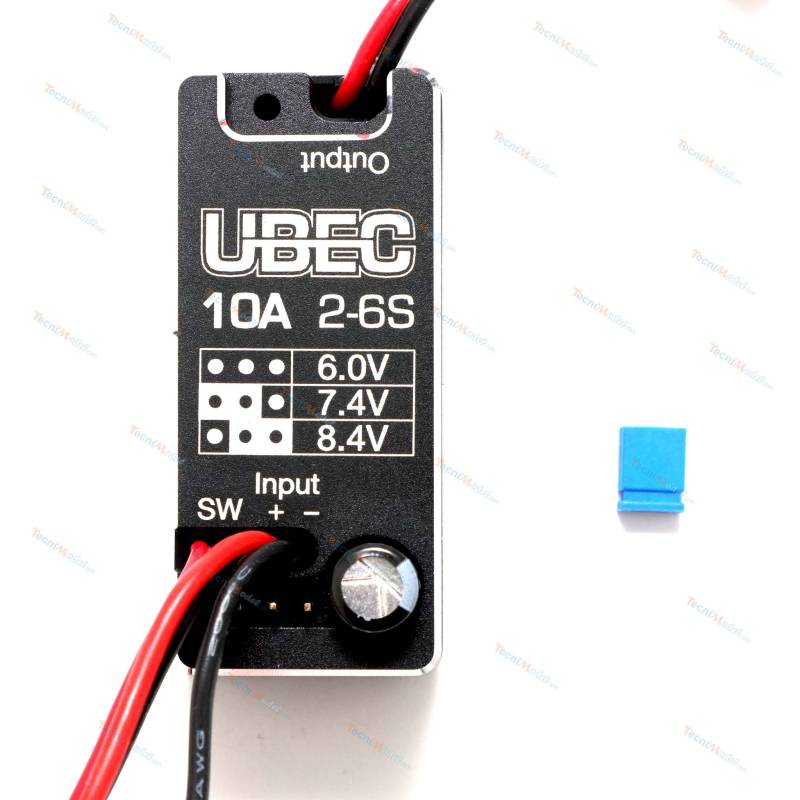

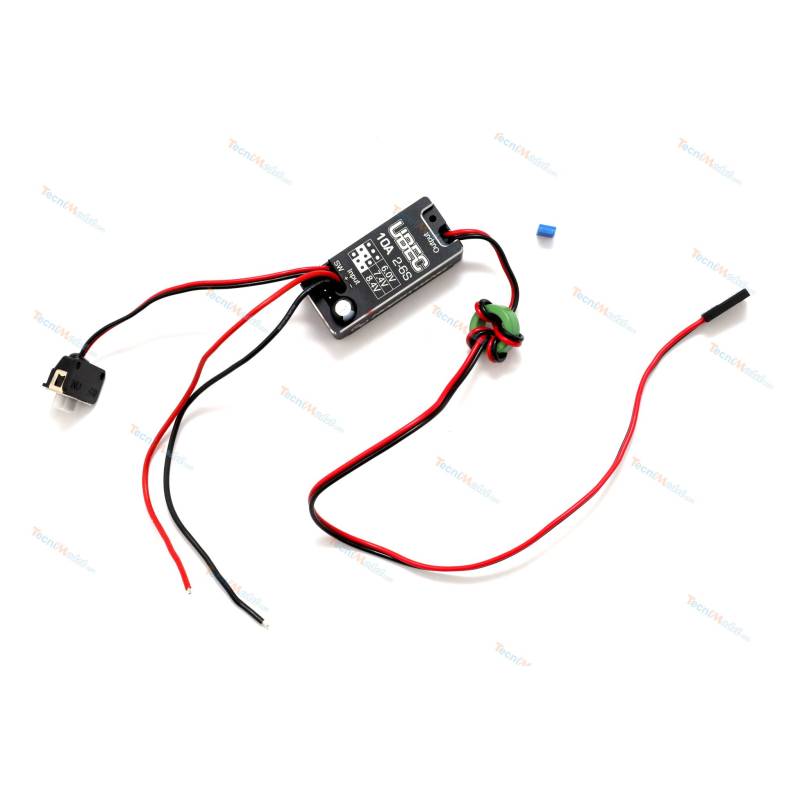

The UBec 10A V2 uses an efficient DC-DC regulator with a conversion efficiency of over 90%. The all-metal housing is designed to help dissipate heat and reduce electromagnetic interference. The UBEC's output voltage is adjustable over three levels (6.0/7.4/8.4 V) with a continuous current of 10A and a maximum of 15A. The voltage specifications allow the use of a wide range of servos and electrical equipment such as lights, winches, windscreen wipers and so on. At the same time, the UBEC features overcurrent protection, output short-circuit protection, overtemperature protection and an IP67 dust-tight design. It can be widely used on caterpillars, trucks and other electric models.

Features:

• Supply voltage: 6V to 25.2V (2-6S LiPo)
• Output voltage: 6.0 / 7.4 / 8.4V (3 jumper setting options)
• Continuous output current: 10A
• Peak output current: 15A
• Connector
  • Input: bare wire
  • Output: servo socket type JR/Graupner
• Dimensions : 45 x 20 x 16.2mm
• Weight: 34g
