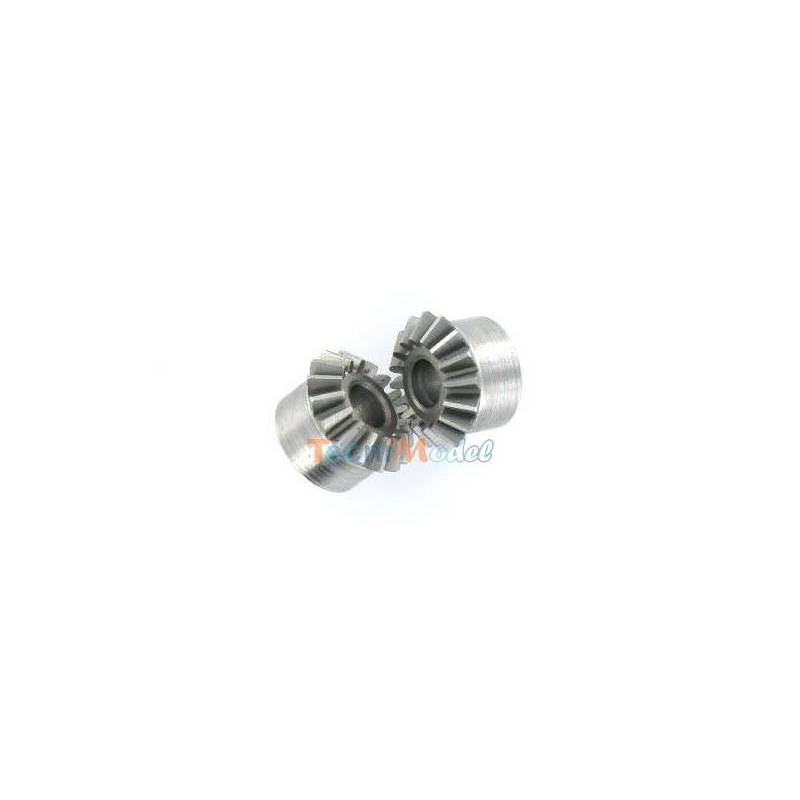

Pair of sprockets conical torque steel 16 teeth 1:1
Pair of sprockets conical torque steel 16 teeth 1:1, module 1
Reference : ACVE231748
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AD05
Pair of sprockets conical torque steel 16 teeth 1:1
Two steel sprockets for 90° angle return with a 1:1 reduction ratio
16-tooth sprockets
Module: 1
Central bore: Ø6mm, shoulder diameter: Ø14mm
Tightening on the shaft by a headless M3 screw
Size of a sprocket: length 11mm, outer diameter Ø17mm
