Lifting mechanism geared motor
Lifting mechanism motor for Tipper or loader arm LR634, reduction 50:1, 300 rpm under 6v
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AI01

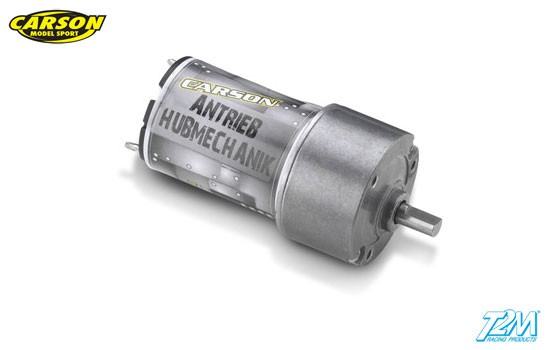

Dumpster lifting mechanism motor
Ref Carson 500907066
Geared motor adapted to drive the Tipper lifting system Carson ref 500907056 or lifting the arm of the tracked loader LR634.
Antiparasiality engine
Rated voltage: 6v
Voltage range: 3 to 9v
Unladen rotation speed: 300 rpm
Empty consumption: 500 mA
La load rotation speed: 270 rpm
Blocking consumption: 2 A
Maximum torque: 600 mN.m
50:1 discount
Weight: 125g
Total length: approx. 75mm
Reduction housing diameter: approx. 33mm
Reduction case length: approx. 19.5 mm
Engine diameter: approx. 27mm
Motor length (including terminals): approx. 44mm
Tree length: approx. 10mm
Shaft diameter: 5mm
