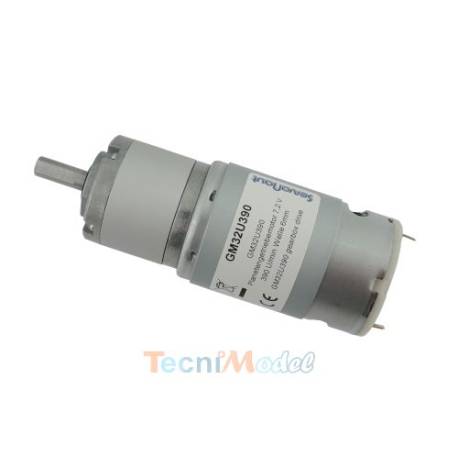

GM32U390 7.2v 390 rpm gearbox

Gear motor 7.2v 390 rpm

GM32U390 Servonaut

The replacement of the GM32U370.

Engine reducer ideal for the propulsion of radio controlled trucks Tamiya, to replace the engine / gearbox assembly.

• gear bike 7,2 V 390 RPM 37x86mm axis 6mm
• integrated anti-suppressor capacitors
• rated voltage: 7.2 V
• empty speed: 470 rpm
• rated speed: 390 rpm
• rated output power: 21 W
• Maximum output power: 47 W
• rated torque: 34.6 Ncm
• Dimensions: Ø37 x 86 mm without shaft; shaft diameter 6 mm

Comparison with the GM32U370:

• GM32U370 Comparison --> new GM32U390
• Max power: 14W / maxi 32W --> new 21W / maxi 47W
• Unladen rpm: 430 --> new 470
• rated speed (rpm): 370 --> new 390
• Rated torque (N.cm): 25.5 Ncm -> new 34.6 Ncm

Not delivered: Mounting bracket for Tamiya UAT1 or UAT2 chassis and gimbal nuts (see Accessories tab)
