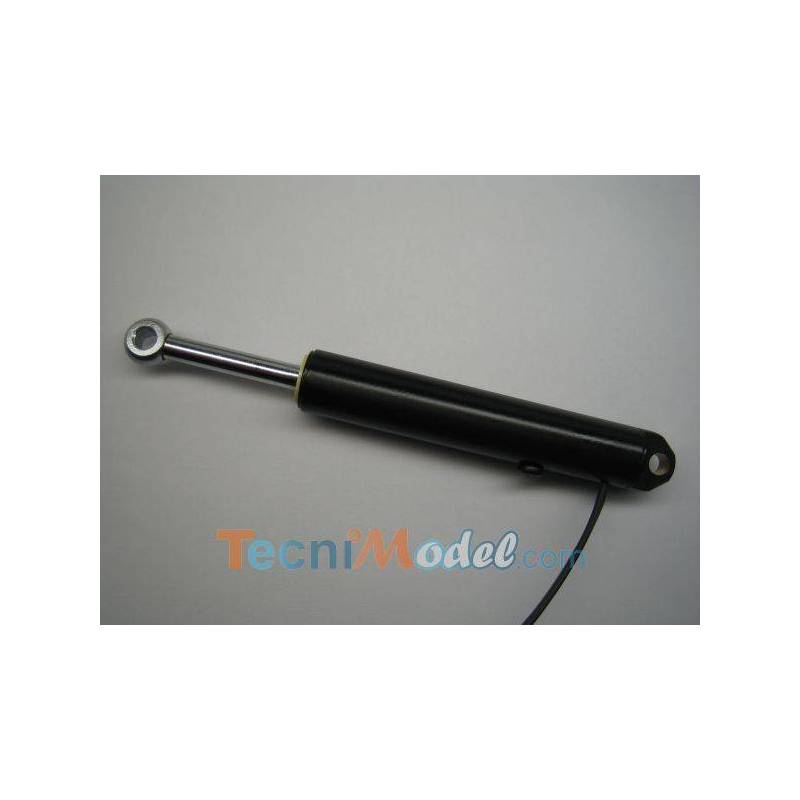

Titan SX 70 electric cylinder
1 Titan SX 70 electric cylinder, 70mm stroke, 11kg thrust, speed 2.0 cm/s, 12v power supply.
Reference : VESITITAN70SX
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AE02
1 Titan SX 70 electric cylinder
Brand: SICON
Mandatory use of a THOR control module"Titan SX 1"for the operation of a cylinder or a THOR control module"Titan SX 2"for the operation of two cylinders in parallel (see "accessories").
Supply voltage:
Lipo Battery 3S (11.1v) or Nimh 10 elements (12v)
New design, more powerful, faster and quieter.
Brass construction
Thrust: approx. 8 kg
Speed: 2.0 cm/s
Size:
- Extended length (distance from anchor points): 209mm
- Retracted length (distance from anchor points): 139mm
- Stroke: 70mm
- Body diameter: Ø15mm
- Rod diameter: Ø6mm
- Diameters of anchor points: Ø5mm
| Diameter | 15mm |
|---|---|
| Length | 139-209mm |
| Manufacturer | SICON |
| Number of Li-ion battery cells | 3S |
| Delivered painted | Yes |
| LED voltage | 11.1v - 12v |
