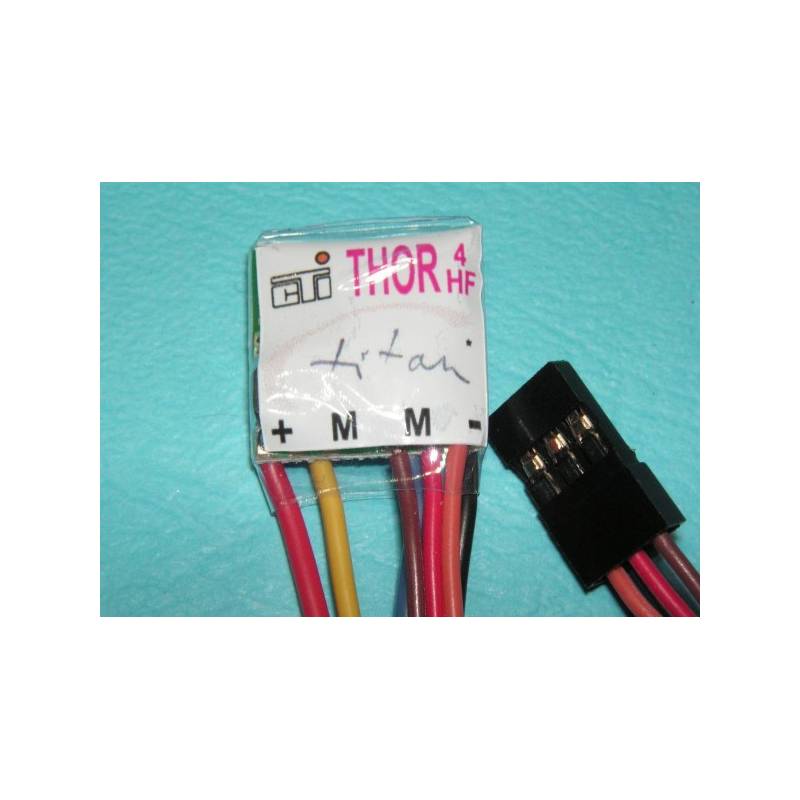

Titan 1 control module for 1 Titan electric cylinder CTI

Control module for Titan cylinder

For 1 Titan cylinder CTI

NOT SUITABLE FOR VERINS TITAN SX

The THOR Titan actuator controller allows you to control a Titan electric cylinder proportionally from a radio controller.
The THOR Titan cylinder controller operates on the principle of measuring the consumption of the cylinder and ensures the engine shutdown when the cylinder is at the end of the stroke, by detecting the increase in consumption at this moment.
This module is designed exclusively for the control of a single TITAN electric cylinder, with a 12v (10 Nimh elements) or 11.1v (Lipo 3S) power supply

Feeding:

Lipo Battery 3S (11.1v) or Nimh 10 elements (12v)

BEC system:

The THOR Titan has a BEC power supply for the receiver (5v output). However, it should not be used to power servo motors as this could affect the current measurement of the module and interfere with the operation of the actuator. In this case, disconnect the red wire that connects the module to the receiver.


Any use other than for a Titan electric cylinder, in the context of modeling, is prohibited and voids the warranty.

Connection:

Connect the yellow wire of the controller to the yellow wire of the cylinder and the blue wire of the controller to the blue wire of the cylinder.

Connect the red wire to the "plus" of the battery and the black wire to the "minus" of the battery.
Connect the three-wire cord (yellow/red/brown) to the receiver.

Preferably disconnect the red wire that connects the module to the receiver.
