1 Titan 90 electric cylinder, 90mm stroke
1 Titan 90 electric cylinder, 90mm stroke, 6kg thrust, 12v voltage
Reference : VECTI506090
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AE03

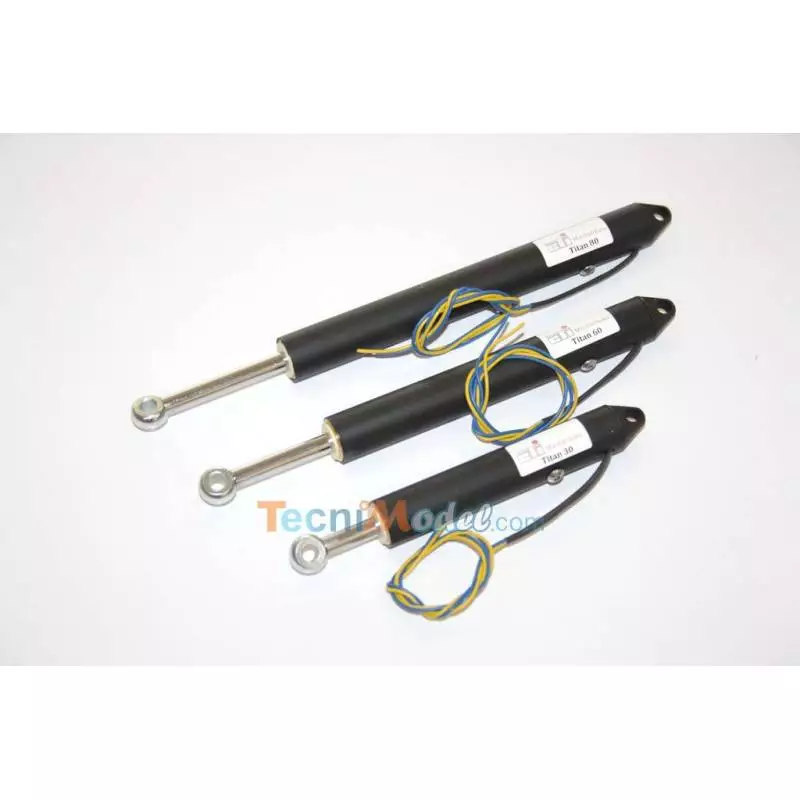

1 Titan 90 electric cylinder
Necessarily use a THOR control module "TITANRegler" for the operation of this cylinder.
The power supply of the cylinder is done by the THOR module "TITANRegler"
Supply voltage:
Lipo Battery 3S (11.1v) or Nimh 10 elements (12v)
New design, more powerful, faster and quieter: no more locking of the cylinder at the end of the stroke.
Brass construction
Thrust: 6 kg
Speed: 1.5 cm/s
Size:
- Extended length (distance from anchor points): 243mm
- Retracted length (distance from anchor points): 153mm
- Stroke: 90mm
- Body diameter: Ø15mm
- Rod diameter: Ø6mm
- Diameters of anchor points: Ø5mm
Titan_Green_Table
Titan Cylinder Dimension Chart
