FOXY 700 BB Turbo 12V brushed motor
Class 700 electric motor with brushes, specially designed for direct drive of boat propellers. Suitable for propellers turning at around 8,000 rpm, on fast models such as lifeboats, pilot boats, military vessels, etc...
Reference : MOFO3BD1035
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB02

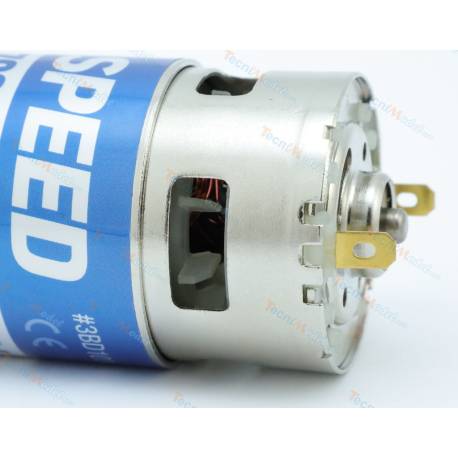

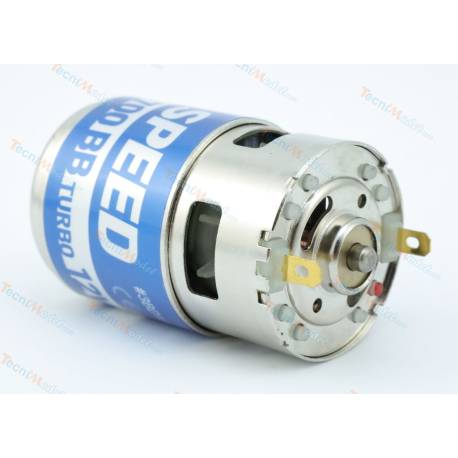

FOXY 700 BB Turbo 12V brushed motor
FOXY 3BD1035
Class 700 brush motor, specially designed for direct drive of boat propellers.
Shaft rotation is ensured by a ball bearing on the output side and a bearing at the rear of the motor. The motor is ventilated.
Supplied without interference suppression, please order interference suppression capacitors (see "Accessories" below).
Features :
- Rated voltage: 12V
- Voltage range: 7.2V to 20V
- No-load speed: 11600 rpm at 12V
- Recommended inverter: 60A to 80A
- Shaft: Ø5mm, length 14mm
- Mounting: 29mm center distance, M4 thread (screws not supplied)
- Housing dimensions: Ø42 mm x 66 mm (diameter x length)
- Overall dimensions: Ø44.2 mm x 92 mm (diameter x length)
- Shaft output boss diameter: Ø17mm
- Weight: 340g
