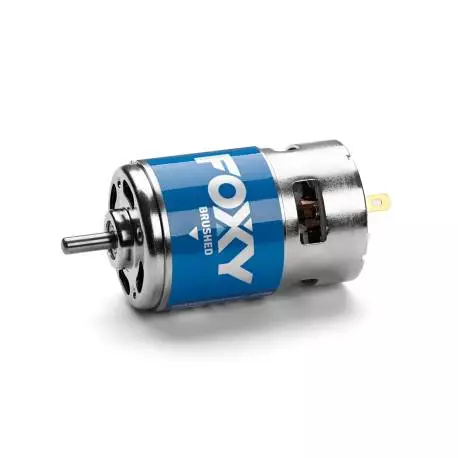

FOXY Speed 700 BB Turbo 9.6V brushed motor
FOXY 3BD1030
Class 700 brush motor, specially designed for direct drive of boat propellers.
Shaft rotation is ensured by a ball bearing on the output side and a bearing at the rear of the motor. The motor is ventilated.
Supplied without interference suppression, please order interference suppression capacitors (see "Accessories" below).
Features :
- Rated voltage: 9.6V
- Voltage range: 4.8V to 12V
- No-load speed: 15200 rpm at 9.6V
- Recommended inverter: 60A to 80A
- Shaft: Ø5mm, length 14mm
- Mounting: 29mm center distance, M4 thread (screws not supplied)
- Housing dimensions: Ø42 mm x 66 mm (diameter x length)
- Overall dimensions: Ø44.2 mm x 92 mm (diameter x length)
- Shaft output boss diameter: Ø17mm
- Weight: 340g
