FLYSKY FS-i4X

The Flysky FS-i4X is an easy-to-use, entry-level 4-channel radio control system designed for aircraft, gliders and boats, and also suitable for land-based models such as construction machinery and trucks (not suitable for Tamiya MFC-01 and MFC-03 multi-function units).

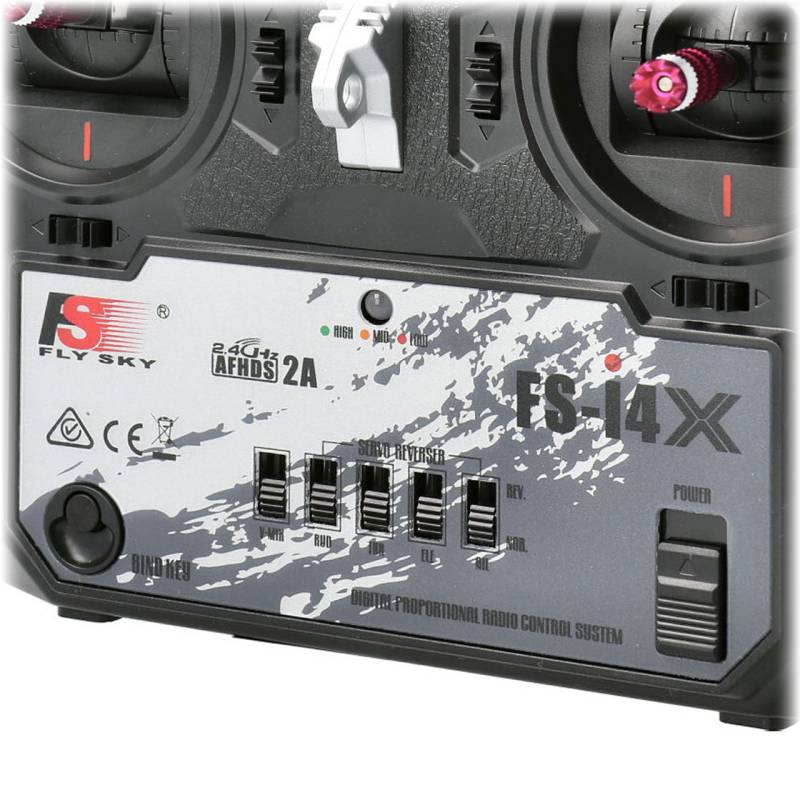

It features channel reverse functions, as well as a mixing function between channels 1 and 2. It features AFHDS2A and AFHDS protocols, and can control up to 10 channels after internal modification.

The radio control is supplied as standard in mode 2 (left-hand notched stick), but can easily be converted to mode 1 (right-hand notched stick). A conversion kit for automatic sefl-centering of the notched control stick is available as an option (see "accessories" below).

Features :

• Product model : FS-i4X
• Channels: default 4 (can be extended to 10)
• Models: fixed-wing aircraft, gliders, robotics, land vehicles or boat models
• Wireless frequency: 2.4GHz
• Transmission power: <20 dBm
• Wireless protocol: AFHDS and AFHDS2A
• Range: 500 ～ 1500m (in the air)
• Channel resolution: 1024

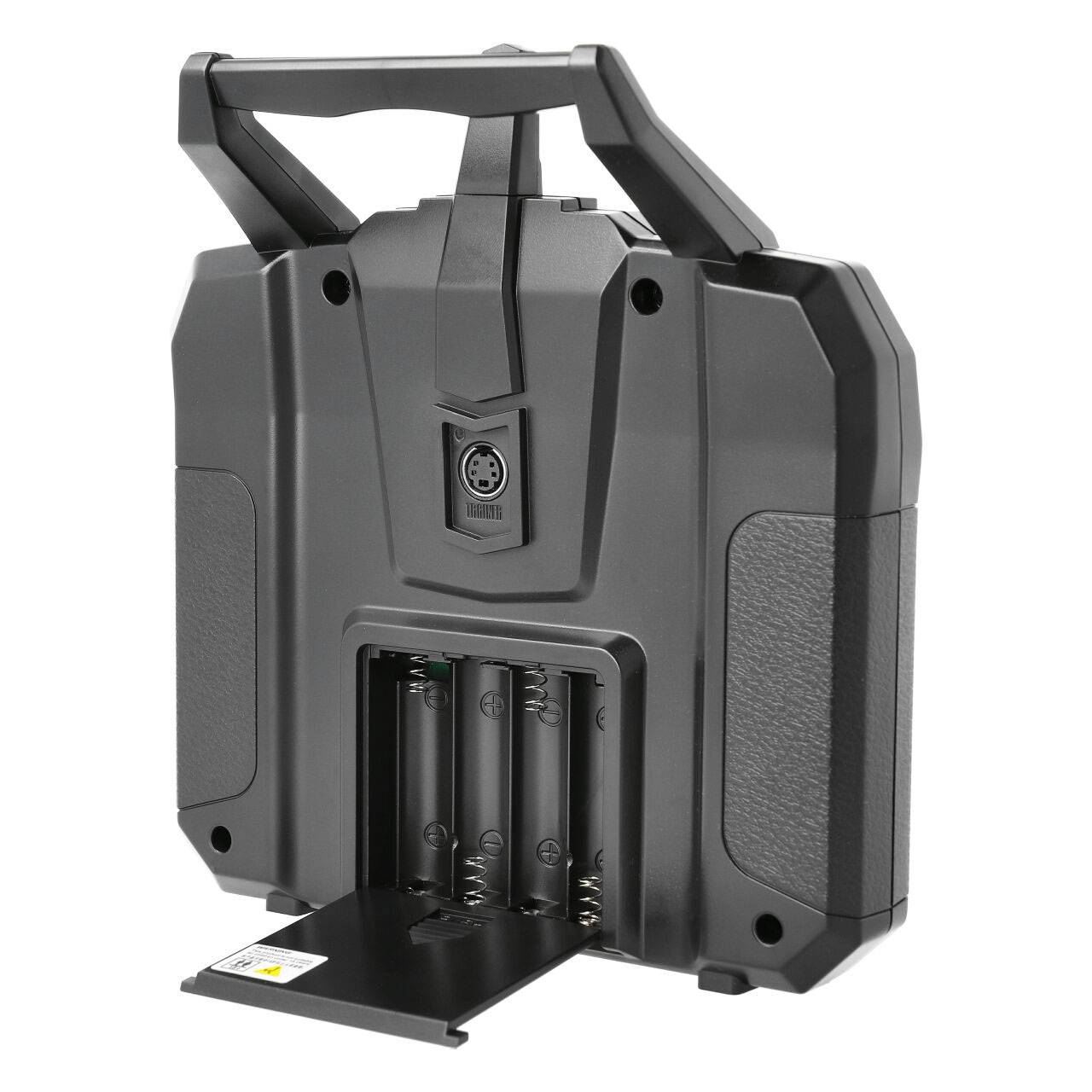

• Power supply: 4 batteries or 4 AA-size NiMh batteries
• Charging port: None
• Low voltage indicator: <4.8V
• Antenna type: single antenna
• Data port: PS / 2 (PPM)
• Temperature range: 0°C to +60°C
• Humidity range: 20% - 95
• Online update: No
• Color: Black
• Dimensions: 174x89x190m
• Weight: 323g
• Certification: CE, RCM, FCC ID: N4ZFLYSKYI4

Scope of delivery:

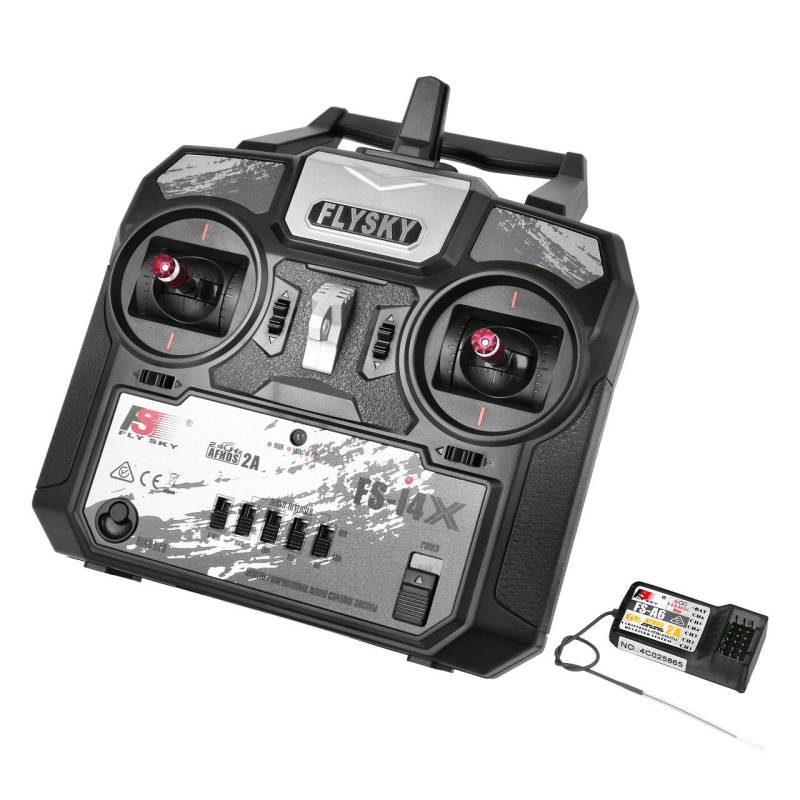

• FS-i4X 4-channel 2.4Ghz radio control system

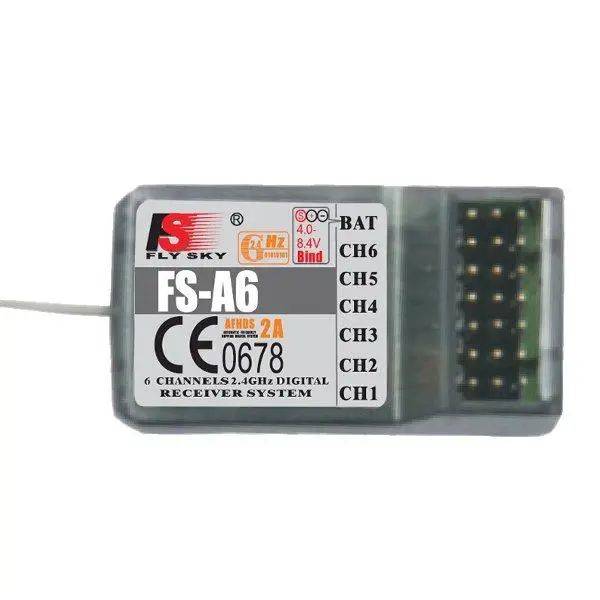

• 6-channel A6 AFHDS 2A receiver

Association process with original receiver:

Transmitter and receiver have been paired prior to delivery. If you are using another transmitter or receiver, follow the steps below to pair the transmitter and receiver:

1. Connect the supplied link cable (servo plug with bridge wire) to the receiver's BAT port.
2. Switch on the receiver. If the receiver has entered pairing mode, the LED will start flashing rapidly.
3. Hold down the "bind" button while powering up the transmitter to switch it too to pairing mode.
   If the receiver LED starts flashing slowly, this means that the receiver has left pairing mode.
4. Switch off transmitter and receiver.
5. Remove the link cable from the receiver.
6. Switch transmitter and receiver back on.
   If the transmitter and receiver have successfully paired, the receiver LED will glow red.
7. Check that the servos are working as intended. If anything goes wrong, repeat the procedure from the beginning.

This procedure only applies to the FS-A6 receiver, other receivers may require a different procedure.

Compatible receivers :

• AFHDS2A: FS-iA10B receiver and A6 receiver
• AFHDS: FS-GR3E receiver
