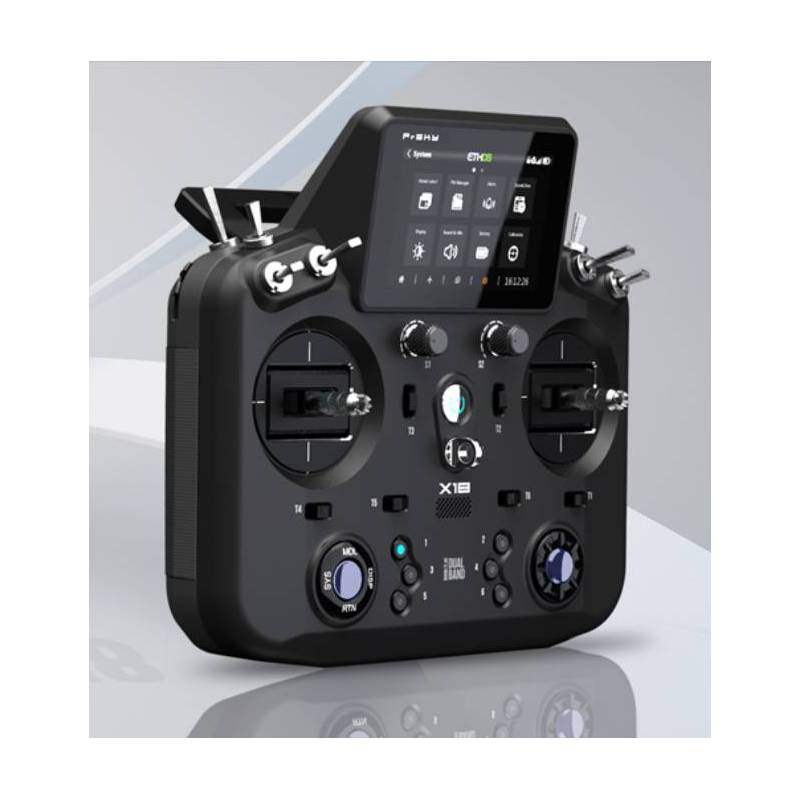

FrSky Tandem X18 Black Radio with battery and case

FrSky Tandem X18 Black Radio with battery and case.

With ETHOS operating system.

By default, the radio is in mode 2, with the control stick toggled on the left. You can choose to have us convert it to mode 1.

By default, the radio is in mode 2, with the control stick toggled on the left. You can choose to have us convert it to mode 1.

Choice of available configurations:

• Standard FrSky (No Tecnimodel configuration) : The radio control is delivered in factory configuration without any configuration or parameters made by Tecnimodel. The radio is delivered with a left-hand notched stick (mode 2) by default.
• Standard FrSky (Mode 2 to Mode 1 conversion): The radio is delivered in factory configuration without any configuration or parameters made by Tecnimodel. Tecnimodel modifies the joystick configuration from mode 2 to mode 1.
• FrSky Factory (All Joystcks wuth neutral): The radio control is delivered in factory configuration without any configuration or parameters made by Tecnimodel. Tecnimodel disables stick detent: both sticks return to neutral.

These new FRSKY radios, with their ETHOS system, offer a wide range of functions, making them ideal for multi-function modelling (trucks, construction machinery and boat models). Parameter setting is simplified thanks to the color touchscreen. The 24 channels available enable you to control most models, whatever their complexity and number of functions.

Introducing the X18

When you are investing in a new radio and considering what requirements are important to you, if weight and comfort are primary considerations, followed by the benefit of the excellent system features of ETHOS, then the FrSky Tandem X18 series radios are obvious appropriate choices.

The Tandem X18 series dual-band telemetry radios benefit from an enhanced ergonomic design with rounded and more comfortable hand grips, along with an improved case design to make the radio fully stable when standing. The radio includes easy-to-reach sliders and switches, 4 standard stick trims with additional 2 extra trims added to provide more flexibility with flight attitude adjustments while operating the radio. The X18 series include further enhancements with integrated flash storage which improves and simplifies storage operation and use, and the interior of the radio has been designed with space and weight in mind, while still keeping all ETHOS setting and control features for the pilot to enjoy.

Internal 900MHz/2.4GHz Dual-Band & External Module Bay.

The TD dual-band RF system combines both the features and advantages of FrSky 900MHz and 2.4GHz RF together in one system. The TD features real simultaneous dual-band longrange control with telemetry that achieves reliable end-to-end 4ms latency while maintaining a robust and high-quality signal link. The entire range of TD, ACCESS & ACCST D16 receivers are supported. The built-in TANDEM RF System supports ACCESS and ACCST D16 protocols.
In addition, the Tandem X18 series radios include a rear Lite version module bay to offer more options to connect external devices. FrSky welcomes working compatibility with the 3rd party products with their own developed technology following FrSky verified 3rd party compatibility-testing program.

ETHOS operating system

ETHOS is a thoroughly new operating system, designed from the ground up by RC experts, providing users a powerful, intuitive, and flexible experience that can maximize the fun of RC Hobby!

Scope of delivery:

• Radio remote control FRSKY Tandem X18 Black.
• 2S Li-Ion Battery
• Carrying case
• Neck strap

Key features

• Integrated dual-band RF module TD-ISRM 900M/2.4G.
• 480*320 color touchscreen.
• 4 standard trimmers + 2 additional trimmers.
• 6 custom buttons in fast mode.
• 2 momentary buttons.
• Integrated storage memory.
• Lite type external module bay.
• Integrated 6-axis gyroscope sensor.
• Haptic vibration alerts and voice outputs.
• Supports 2S Li-ion battery charging system.
• High-speed PARA wireless drive system.
• High-precision Hall-effect sensor handles with metal panel.
• MC18 CNC-machined high-precision Hall-effect sensor handles with 10 ball bearings, adjustable 45°/60° handle travel.

TD-ISRM RF module

• Built-in dual-band TD 900M/2.4G RF module
• Supports multiple working modes
  • ACCST D16 2.4Ghz mode (compatible with ACCST receivers with D16 V2 or later FW)
  • 2.4Ghz ACCESS mode (compatible with ACCESS receivers)*.
  • 900Mhz ACCESS mode (compatible with ACCESS R9 868/915MHz receivers)*

(*Capable of working simultaneously in ACCESS mode)

• • TD 2.4G and 900M mode (compatible with TD receivers)
  • Long-range, low-latency control with telemetry*

(*range up to 50 to 100KM and up to 4ms latency)

ETHOS system

• Clear, intuitive user interface design.
• Support for two system display operating modes (touch and non-touch).
• Support for multilingual switching.
• Hardware/software version and factory version detection.
• Support for LUA script execution.

Features:

• Dimension: 200*192*95mm (L*W*H)
• Weight: 687g (battery excluded) / 820g (battery included)
• Operating system: ETHOS
• Internal RF module: TD-ISRM
• Number of channels: Up to 24 channels
• Operating voltage range: 6.5 ~ 8.4V (Li 2S battery)
• Operating temperature : -10°C~60°C (14°F~140°F)
• Operating current: 240mA@7.4V (typ.)
• Charging current: ≤1A ±200mA
• USB adapter voltage: 5V+0.2V
• USB adapter current: >2.0A
• Backlit LCD touchscreen resolution: 480*320
• Compatibility: ACCST D16 & ACCESS & TD receivers
• USB charging - Requires USB type C cable
