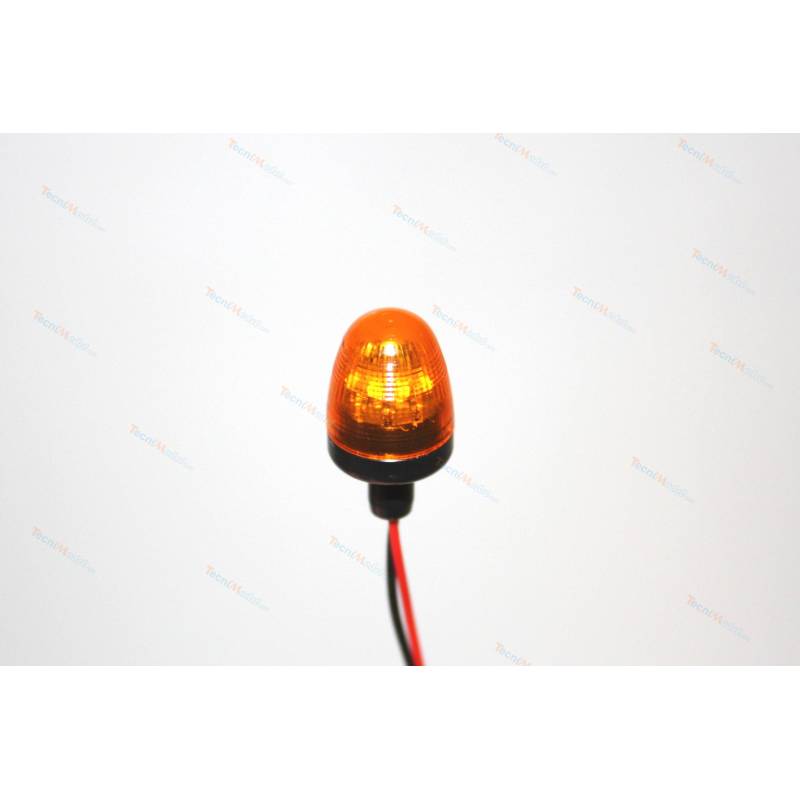

1 Orange beacon Ø12mm rounded cap and tubular base

1 Orange beacon Ø12mm rounded cap and tubular base

Pistenking RX12-OR

To control beacon on/off via radio, a control module is required (relay-type module or PS4a), see accessories.

Orange flashing beacon
Rounded cabochon
Tubular base Ø3mm internal length 6mm
Dimensions: Ø12mm
Height 15.5mm
Scale 1/12th

Beacon with 10 leds

Operating voltage: 4 - 12 v
Consumption: approx. 35 mA
Rotation speed: 60 - 200 rpm adjustable in 3 steps

Electronics integrated into beacon: no additional circuit board required, simplifying wiring: one "plus" and one "minus" wire to connect.

Features:
- 3 speeds, 10 flash types
- Wide voltage range
- Realistic operation
- Innovative LED technology
- Reverse polarity protected
- Simple two-wire connection
- Integrated electronics
- Long life
- Simple installation
- Maintenance-free
- Mock-up appearance

Connection information
