Linear servo HiTEC HLS12 30mm 50:1
HITEC 1-02453
The HiTEC HLS12 range of linear actuators offers precise linear motion in a compact format.
These actuators are controlled via a traditional PWM interface, compatible with common radio controls, enabling easy integration into existing systems. Linear push and pull motion can be precisely positioned over the entire stroke, from fully retracted to fully extended.
Inside, a Coreless brush motor combined with a robust metal gearbox and 32-bit programmable digital electronics ensure reliable power transmission and smooth starting.
The wide operating voltage range from 4V to 8.4V simplifies power supply in mobile systems.
Features :
- Coreless motor with robust gearbox
- Ø5mm screw
- Operating voltage: 4V to 8.4V
- Nominal voltage: 7.4V
- No-load consumption: 130mA
- Power consumption at standstill: 620mA
- Operating temperature range : -10°C to +50°C
- Plug: Graupner/JR
- Cable length: 160mm
- Cable cross-section: 24AWG
- Protection: IP4X
| Voltage range | 4V to 8.4V | |||||||||||
| Nominal voltage | 7,4V | |||||||||||
| Reduction | 50:1 | 100:1 | 210:1 | 380:1 | ||||||||
| No-load speed | 30.9mm/s | 16.1mm/s | 7.5mm/s | 4.1mm/s | ||||||||
| No-load current consumption | 130mA | |||||||||||
| Load characteristics | Load (kgf) | Speed (mm/s) | Power consumption (mA) | Load (kgf) | Speed (mm/s) | Consumption (mA) | Load (kgf) | Speed (mm/s) | Consumption (mA) | Load (kgf) | Speed (mm/s) | Power consumption (mA) |
| Maximum efficiency point | 1,2 | 23,5 | 250 | 2,1 | 12,7 | 250 | 4,4 | 5,6 | 250 | 8 | 3,1 | 250 |
| Maximum power point | 2,1 | 17,3 | 370 | 3,8 | 8,6 | 370 | 7,7 | 4 | 370 | 12,4 | 2,3 | 370 |
| Maximum force (lift) | 2,7 | 8,2 | 490 | 5,2 | 4 | 490 | 9,9 | 2,8 | 490 | 14,8 | 1,5 | 490 |
| Locking force | 3.1kgf | 6.2kgf | 12.4kgf | 22.2kgf | ||||||||
| Blocking current consumption | 620mA | |||||||||||
| Maximum static force | 25.2kgf | |||||||||||
| Stroke | 30mm | 50mm | 100mm | |||||||||
| Repeatability | ±0.2mm | ±0.3mm | ±0.5mm | |||||||||
| Maximum lateral load (extended) | 4.1kgf (40N) | 3kgf (30N) | 1.5kgf (15N) | |||||||||
| Overall dimensions | 82x15x18mm | 102x15x18mm | 152x15x18mm | |||||||||
| Weight | 34g | 40g | 56g | |||||||||

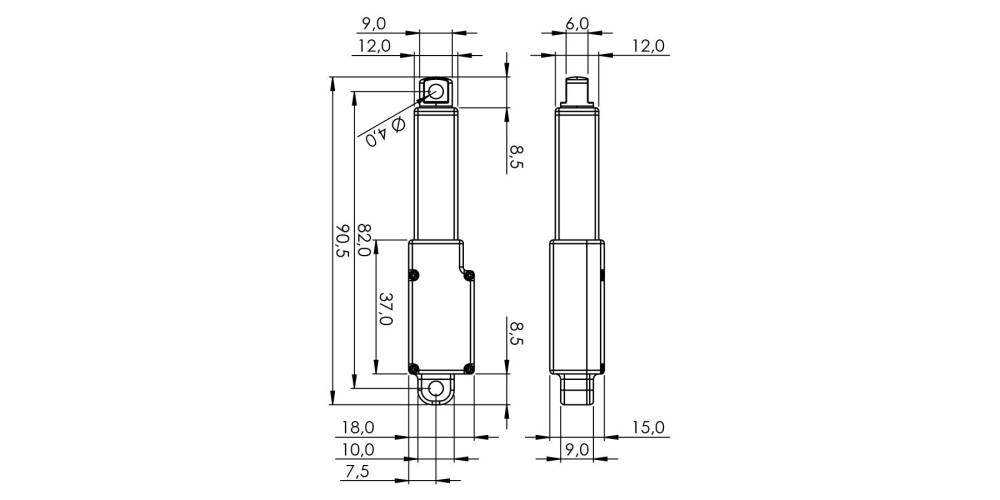

Dimensions :
| Length | 82-112mm |
|---|---|
| Voltage (V) | 4V - 8.4V |
| Connector | Graupner Servo /JR |
| Race | 30mm |
| Reduction | 50:1 |
