Linear servo HiTEC HLS12 100mm 100:1
HITEC 1-03234
The HiTEC HLS12 range of linear actuators offers precise linear motion in a compact format.
These actuators are controlled via a traditional PWM interface, compatible with common radio controls, enabling easy integration into existing systems. Linear push and pull motion can be precisely positioned over the entire stroke, from fully retracted to fully extended.
Inside, a Coreless brush motor combined with a robust metal gearbox and 32-bit programmable digital electronics ensure reliable power transmission and smooth starting.
The wide operating voltage range from 4V to 8.4V simplifies power supply in mobile systems.
Features :
- Cored Metal Brush motor with robust gearbox
- Ø5mm screw
- Operating voltage: 4V to 8.4V
- Nominal voltage: 7.4V
- No-load consumption: 130mA
- Power consumption at standstill: 620mA
- Operating temperature range : -10°C to +50°C
- Plug: Graupner/JR
- Cable length: 160mm
- Cable cross-section: 24AWG
- Protection: IP4X
| Reference | RAHI02453 | RAHI02456 | RAHI02459 | RAHI03232 | RAHI03233 | RAHI03234 | RAHI02454 | RAHI02457 | RAHI02460 | RAHI02455 | RAHI02458 | RAHI02461 |
| Voltage range | 4V to 8.4V | |||||||||||
| Nominal voltage | 7.4V | |||||||||||
| Reduction | 50:1 | 100:1 | 210:1 | 380:1 | ||||||||
| No-load speed | 30.9mm/s | 16.1mm/s | 7.5mm/s | 4.1mm/s | ||||||||
| No-load current consumption | 130mA | |||||||||||
| Load specifications | Load (kg) | Speed (mm/s) | Current consumption (mA) | Load (kg) | Speed (mm/s) | Current consumption (mA) | Load (kg) | Speed (mm/s) | Current consumption (mA) | Load (kg) | Speed (mm/s) | Current consumption (mA) |
| Maximum force | 2.7 | 8.2 | 490 | 5.2 | 4 | 490 | 9.9 | 2.8 | 490 | 14.8 | 1.5 | 490 |
| Stall force | 3.1kgf | 6.2kgf | 12.4kgf | 22.2kgf | ||||||||
| Stall current | 620mA | |||||||||||
| Stroke | 30mm | 50mm | 100mm | 30mm | 50mm | 100mm | 30mm | 50mm | 100mm | 30mm | 50mm | 100mm |
| Repeatability | ±0.2mm | ±0.3mm | ±0.5mm | ±0.2mm | ±0.3mm | ±0.5mm | ±0.2mm | ±0.3mm | ±0.5mm | ±0.2mm | ±0.3mm | ±0.5mm |
| Max. lateral load (extended) | 4.1kgf (40 N) | 3kgf (30 N) | 1.5kgf (15 N) | 4.1kgf (40 N) | 3kgf (30 N) | 1.5kgf (15 N) | 4.1kgf (40 N) | 3kgf (30 N) | 1.5kgf (15 N) | 4.1kgf (40 N) | 3kgf (30 N) | 1.5kgf (15 N) |
| Overall dimensions | 82x15x18mm | 102x15x18mm | 152x15x18mm | 82x15x18mm | 102x15x18mm | 152x15x18mm | 82x15x18mm | 102x15x18mm | 152x15x18mm | 82x15x18mm | 102x15x18mm | 152x15x18mm |
| Weight | 34g | 40g | 56g | 34g | 40g | 56g | 34g | 40g | 56g | 34g | 40g | 56g |

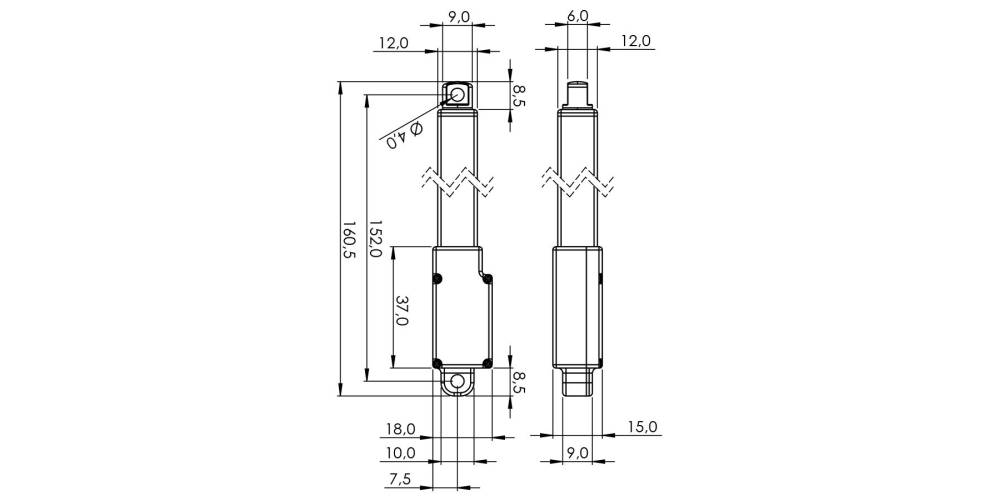

Dimensions :
| Length | 152-252mm |
|---|---|
| Voltage (V) | 4V - 8.4V |
| Connector | Graupner Servo /JR |
| Race | 100mm |
| Reduction | 100:1 |
