Ramp motorisation system for Goldhofer BAU STN-L3
PistenKing ramp motorisation system for the Goldhofer BAU STN-L3 low-loader semi-trailer from Carson
Reference : PCPITRUALRAM
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AH01
Ramp motorisation system for Goldhofer BAU STN-L3
PistenKing TRU-AL-Rampe
Please note: this system is designed for the Goldhofer Carson 500907060 (GOLDHOFER BAU STN-L3), but is not suitable for the Goldhofer TU4 Carson 500907400 trailer

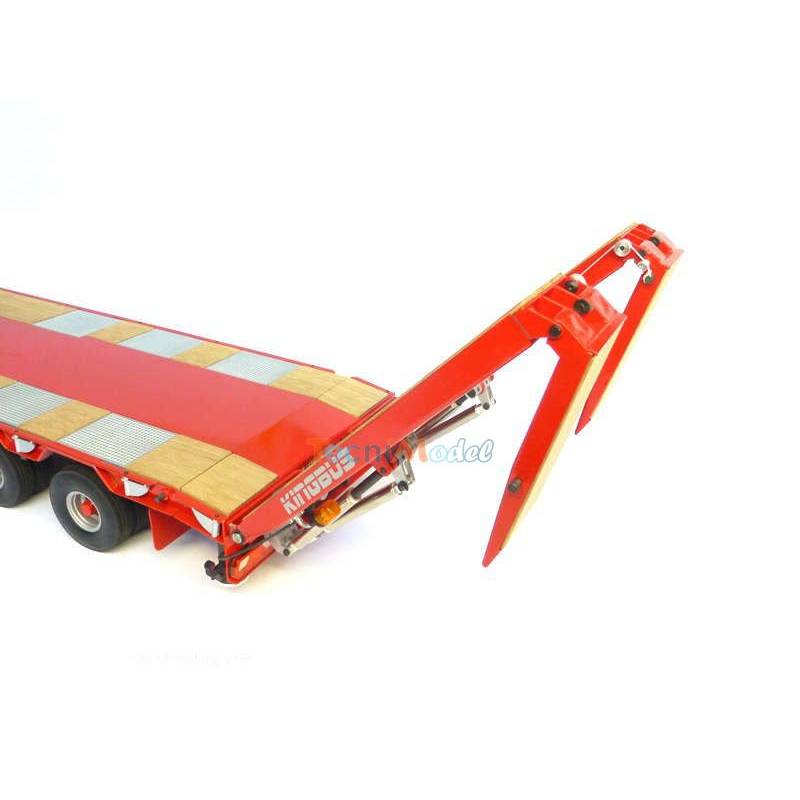

With this motorised system, the ramps on Carson’s Goldhofer trailer can be motorised and controlled remotely.

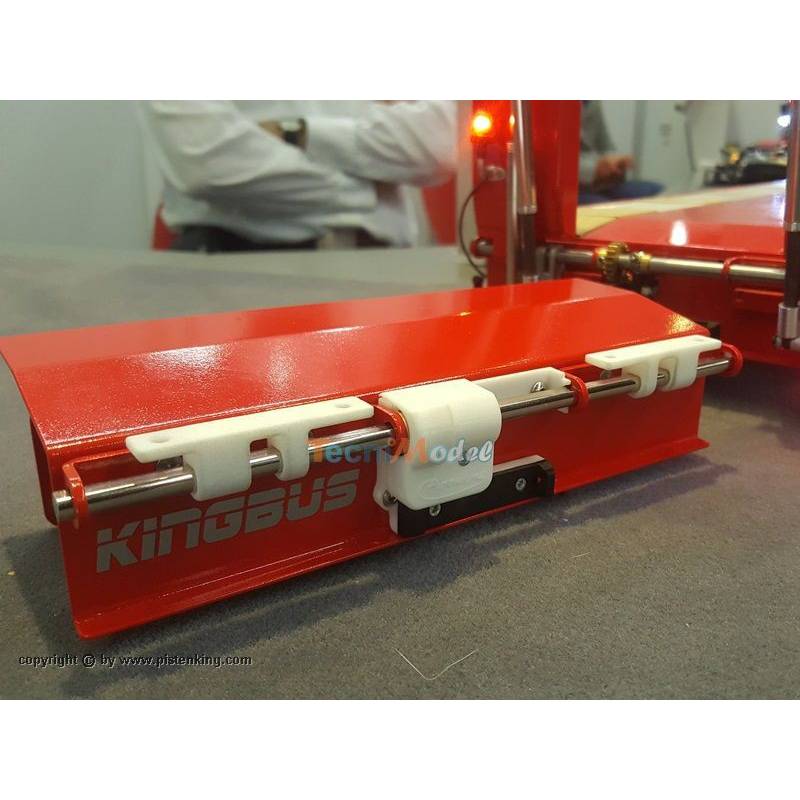

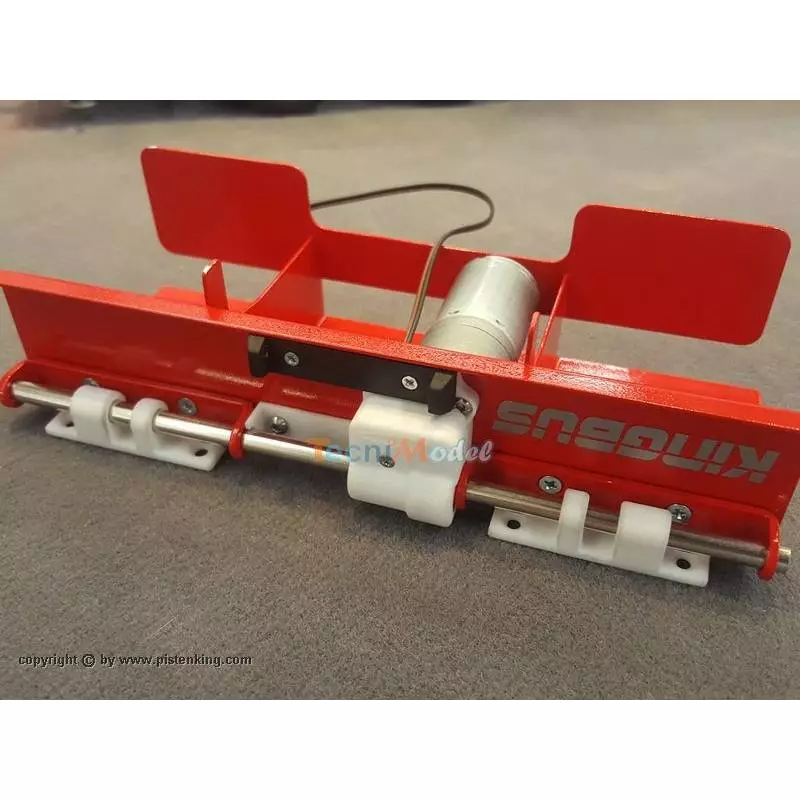

This control unit is mounted on the trailer and controls the ramps via a gear motor. The up and down positions are secured by a limit switch.
The limit switches are supplied pre-wired. Only the motor cables need to be soldered.
The operating voltage is between 6V and 8.4V. If a higher voltage is to be used (e.g. 12V), you can use a voltage regulator or limit the control channel to 60% of its range.

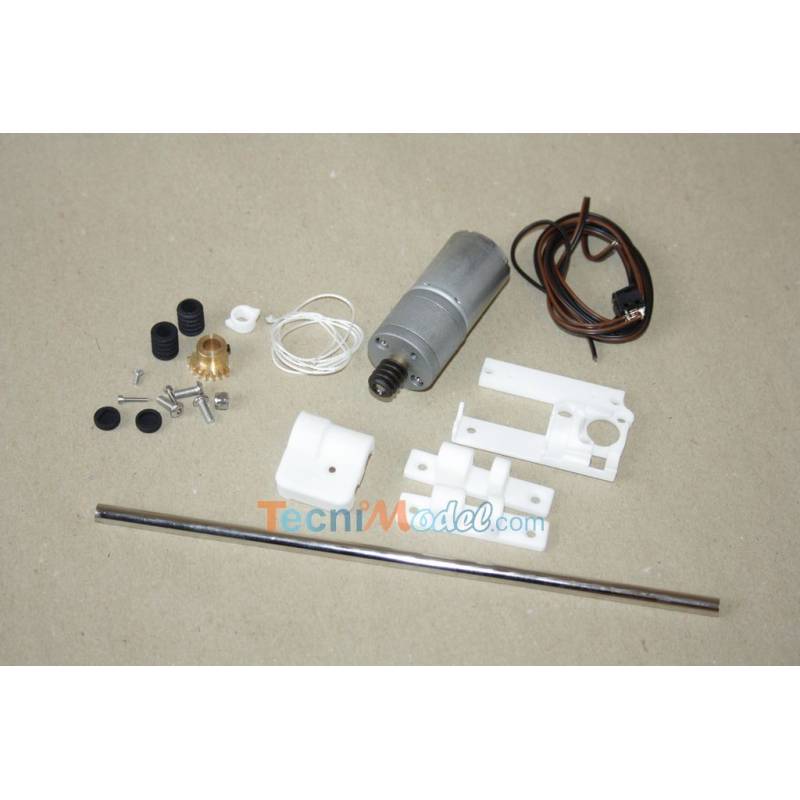

Contents of delivery:
- Gear motor with worm gear (worm gear pre-mounted on the motor)
- Pre-assembled and wired limit switches
- New ramp pivot shaft
- End caps for the shaft
- New ramp brackets, adapted to the new shaft (preserves the lateral movement of the ramps)
- Gearbox base plate (acts as a drilling template)
- Gearbox cover
- Instructions in French, translated by TecniModel
- Screws, cables
