Aero-Naut Magnum Outboard Motor (Retro)
Aero-Naut Magnum outboard motor (retro style), with a 3D-printed resin cowling, ready to paint. Retro charm combined with modern performance.
Reference : MOAE700508
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
Magnum Outboard Motor (Retro Style)
Aero-Naut 700508
"Magnum" Outboard Motor: Retro charm combined with modern performance.
Give your model boat the ultimate “scale” look!
The Magnum outboard motor from Aero-Naut is the ideal choice for all modelers who value aesthetics and technical precision. With its distinctive retro design, it evokes the classic motorboats of past decades and is sure to turn heads at every stern.
Highlights at a glance:

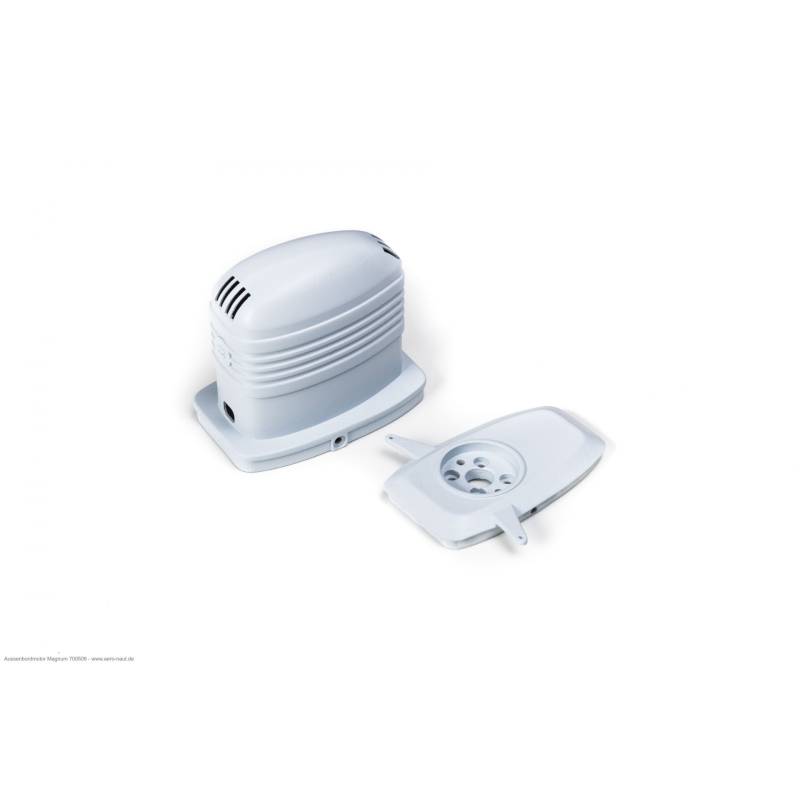

- Customizable design: The white plastic housing is perfect for painting. Match the motor’s color exactly to that of the boat, whether in a classic solid color or a sporty racing look.
- Precision technology: Power is transmitted via a high-quality flexible shaft. This ensures quiet operation and efficient power transmission.
- Maximum flexibility: Thanks to the ingenious mounting plate, the motor can be adjusted vertically by approximately 7mm. The tilt angle is freely adjustable, allowing you to perfectly fine-tune the boat’s handling.
- Versatile compatibility: Two propeller shaft couplings (Ø3.17mm and Ø4mm) are included in the package. This makes the Magnum compatible with a wide range of standard electric motors.
Technical Specifications and Installation:
The “Magnum” is securely mounted to the transom using four screws. It is optimized for electric motors with a center-to-center distance of 19mm (recommended motor diameter: Ø28/35mm).
- Overall length: approx. 130mm
- Overall height: approx. 170mm
- Width: approx. 75mm
- Drive: Flexible shaft
- Motor shaft coupling: Ø3.17mm and Ø4mm
- Motor diameter: Ø28mm and Ø35mm
- Center-to-center distance of motor mounting screws: 16mm and 19mm
- Max. propeller diameter: Ø32mm
- Maximum rpm : 26000 rpm.
Important Note!
The shaft must be greased before startup! Do not operate the motor dry.
For operation, the motor must always be submerged in water, or the flexible shaft must be lubricated at the sintered bearing mounting point before operation. Operating the motor dry can damage the bearing.
Recommended accessories:
| Manufacturer | Aero-Naut |
|---|
