"Südersand" harbour tugboat 1/20 Aero-Naut

The "Südersand" steam harbour tugboat 1/20

Aero-Naut 303300

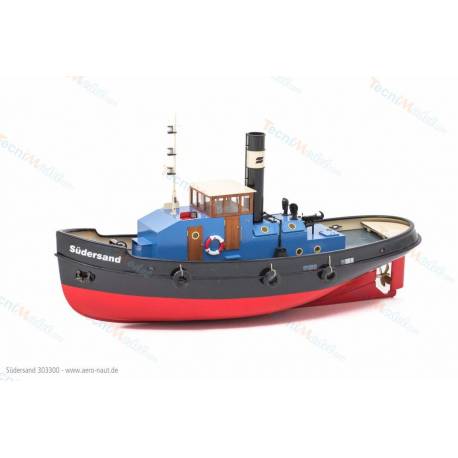

The Südersand is a 1:20 scale model of a small steam tugboat typical of the 1920s and 1930s.

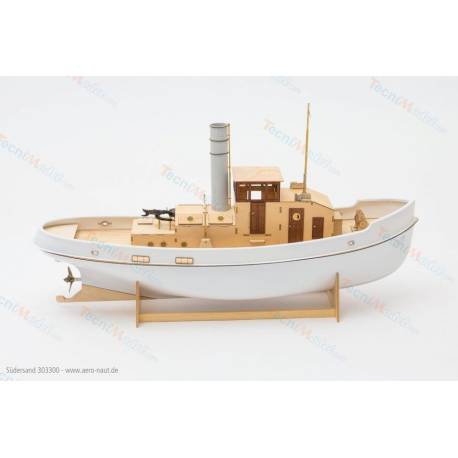

The kit features the latest laser technology and a high degree of precision. The hull is made of deep-drawn plastic, while the superstructure is made of laser-cut wooden parts .High-quality engraved brass parts enable fine detailing of the model.

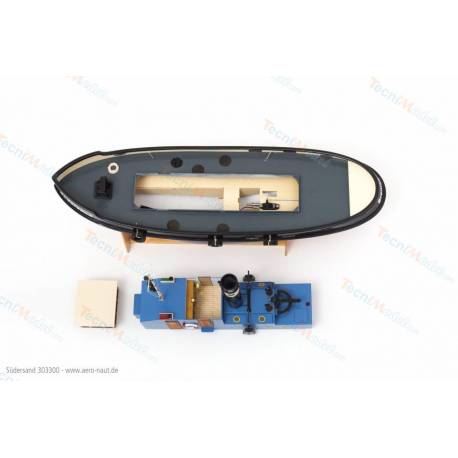

There's plenty of space for all the RC equipment in the voluminous hull. A smoke generator can also be fitted as an option.

The model can also be fitted with lighting. The chimney is (like the original) foldable and can be folded with a servo. The kit is supplied with conventional brush motors, but also with modern external rotors.

The kit contains a large deep-drawn plastic hull, laser-cut wooden parts, the ship's shaft and propeller, engraved parts, accessories such as windsocks, a lifebuoy, fenders, towing hooks, position lights and detailed 3D assembly instructions.

Kit for advanced modellers.

Kit contents:

• Thermoformed plastic hull.
• Numerous laser-cut wooden parts.
• Stern tube and propeller shaft.
• Plastic ship propeller.
• Set of photoetched parts.
• All necessary fittings.
• Metal towing hook included.
• Detailed 3D building instructions in German and English (see "Download").

Features:

• Scale: 1/20
• Width: 220mm
• Length: 737mm
• Height: 380mm

Recommended components (not included, see "accessories" on this page):

Conventional motorization alternative (brushed motor) :

• Motor: 7.2v poison motor Part no. PCCAC500906023
• Drive: Aquaspeed 50 drive T2M Order no. VATMT6830
• Shaft coupling: 3.17/4 mm spring couplings Part no. PBAE703421
• Battery: LiPo 7.4V (2S) 4100mAh 50C TAMIYA plug Order No. BAAV430414 or Battery: 6-cell NiMh Pack Nimh 7.2v 4000mAh TAMIYA plug Order No. BAAP6402F

Brushless motorization alternative (brushless motor):

• Motor: Brushless motor Actro-n 28-4-880 Reference MOAE700304
• Controller: Brushless controller HobbyWing Seaking 30A V3 Order No. VAHW30302060
• Shaft coupling : 4/4 mm spring couplings Order no. PBAE703422

• Battery: LiPo 7.4V (2S) 4100mAh 50C TAMIYA plug Part number BAAV430414 or Battery: 6-cell NiMh Pack Nimh 7.2v 4000mAh TAMIYA plug Part number BAAP6402F
• Controller socket: Gold connectors Tamiya male Reference ACAP14531

Other hardware :

• Ø50mm left-hand brass propellers: PBRA215610

Couplings Raboesch:

• Cardan shaft: PBRA210640
• Inserts Ø3.17/4mm: PBRA210609 / PBRA210605
• Inserts Ø4/4mm: 2 x PBRA210605
