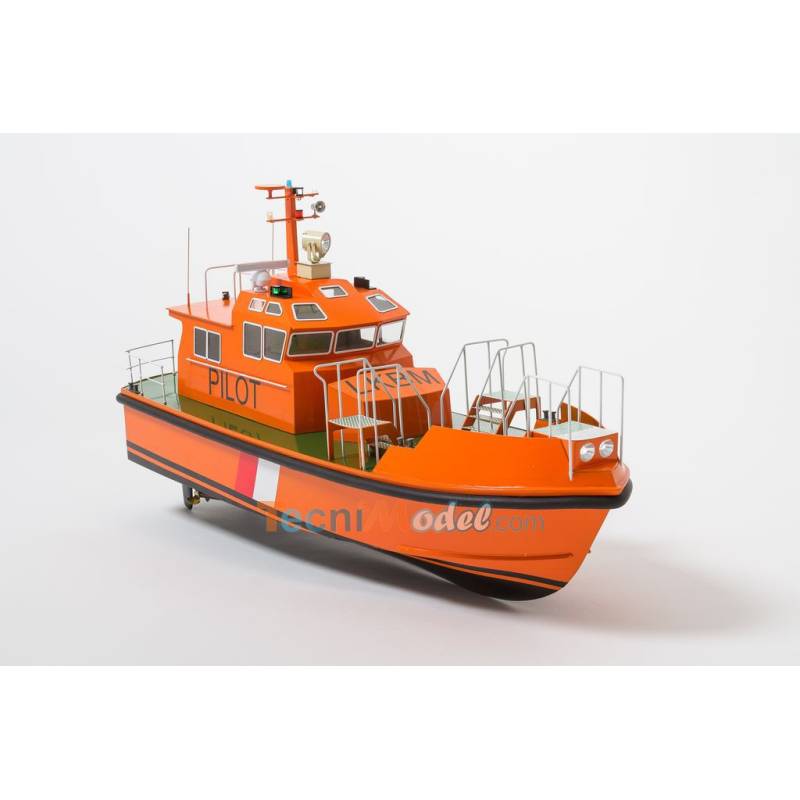

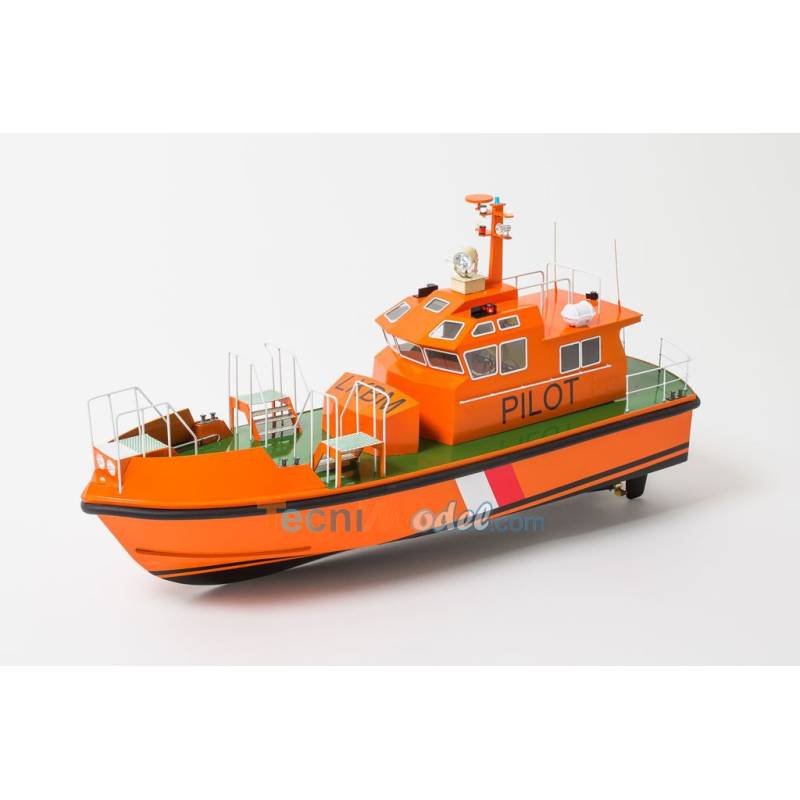

Pilot Boat Kit 1/25 by Aero-Naut

Pilot Boat 1/25

Ref Aero-Naut 304600

The Pilot is freely inspired by a modern pilot boat of 20m. Boats of this kind are frequently encountered along the coasts of the Baltic sea and the North sea; they are very manœuvrable and fast, typically capable of 25 to 30 knots.
Their task is to provide a reliable means of transport, in all weathers, for the pilots of the giants of the seas. The space behind the cockpit can accommodate several pilots, so in a single tour, it is possible to bring them all to their workstation. Our model incorporates most of the characteristics and behavior of these boats.

The model is based on a modern gliding hull, it is very fast and maneuvering. The boat is powered by two electric motors and steered by means of a double rudder system. The hull is constructed of plastic elements cut in numerical control, to assemble and glue.

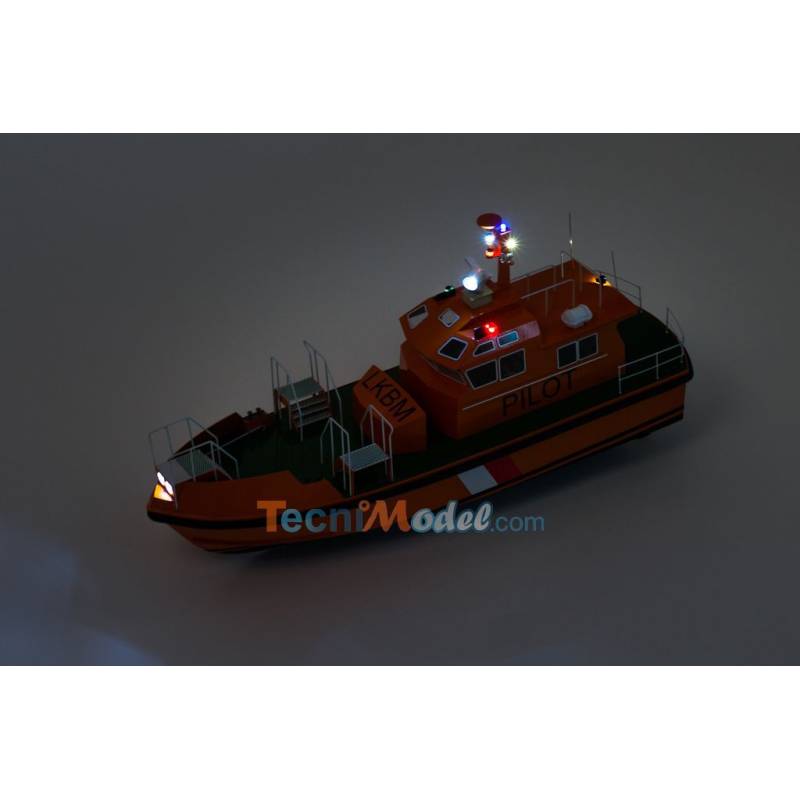

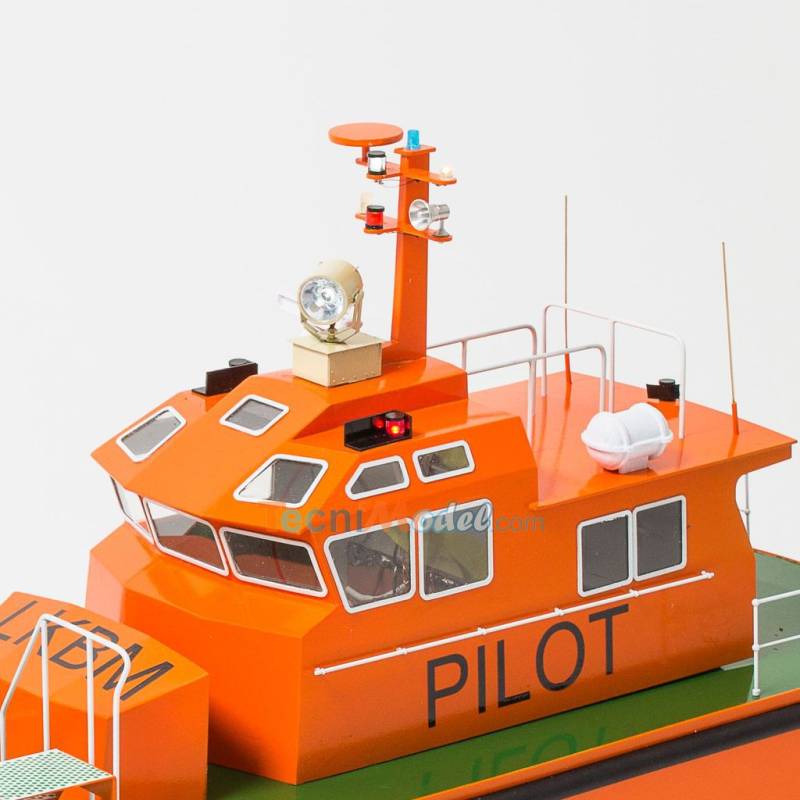

The boat has a fully equipped cockpit. A complete set of accessories is provided for the wheelhouse. The cut-out parts of the dashboard make it possible to light many instruments. All the lamps in the model can accommodate 3mm LEDs. The two very powerful bow headlamps and the black rubber liston give the model a unique look.

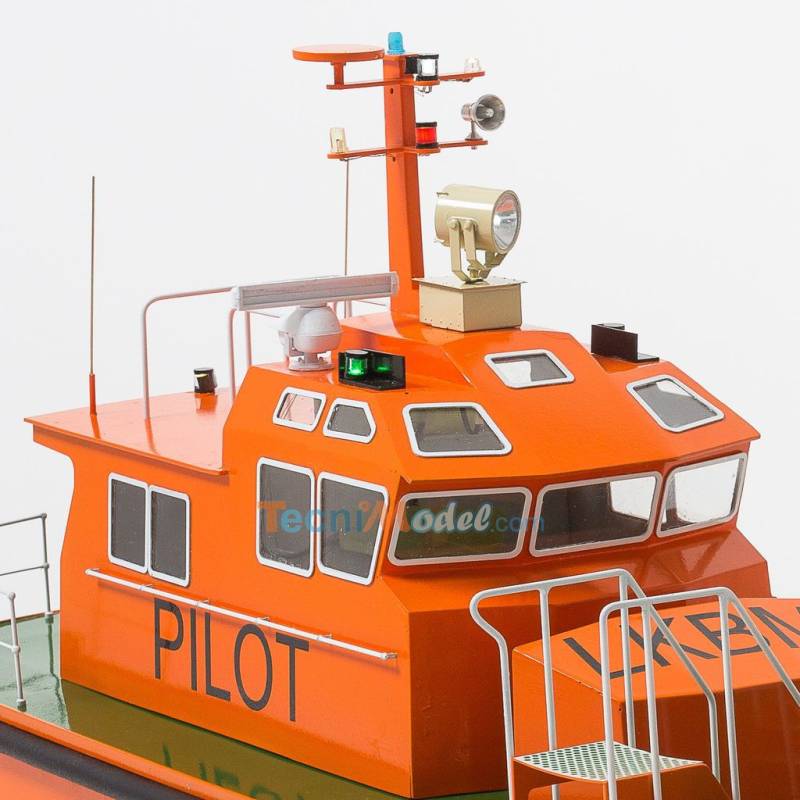

The main spotlight is assembled from engraved parts and is fully articulated. The LED and reflector are adjusted carefully and it produces an extremely powerful and concentrated beam.
Other functional systems can be added to the model according to the wishes of the modeller. There is more than enough room in the hull for auxiliary systems such as bow thrusters, a lighting system, a noisemaker.

At the end of this notice you will find a summary of the maritime lighting systems as well as a simple method of implementation.

Characteristics

• Scale 1:25
• Length 715 mm
• Width 200 mm
• Weight 2.4 to 3.0 kg

Contents of the box:

• All plastic parts for the construction of the hull.
• All pieces of wood, plastic and metal for the construction of the rest of the model.
• Fittings made of plastic or metal.
• 2 Rudders.
• 2 Propeller shafts Ø4mm (propellers not delivered).
• Adhesive decoration board.
• Assembly instructions in French available for download on this page.

Recommended motorization (not included in the kit, see "accessories" on this page)

• Engine 2x Race 400/7,2V ref MOAE700040
• Battery Nimh 7.2v (6 sub-C elements) or Battery 2S LiPo
• Brass propeller 3 blades, diameter Ø30mm Diam. M4 ref PBRA214610 and PBRA214609 (one of each)

• 1x drive: Quicrun 1060 HobbyWing

• servo Standard size for rudder (example Futaba S3003)
• 2 Engine couplings
