Anna 3 Trawler Kit 1/20 by Aero-Naut
Anna 3, kit of a typical North Sea and Batlique trawler, 1/20 scale radio-controlled boat.
Reference : KBAE307600
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)

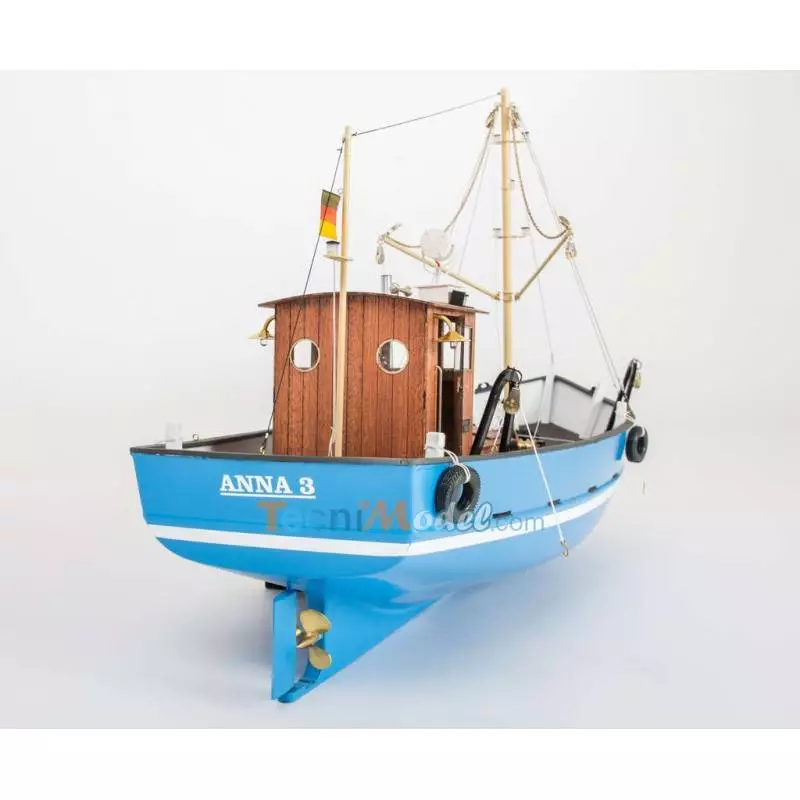

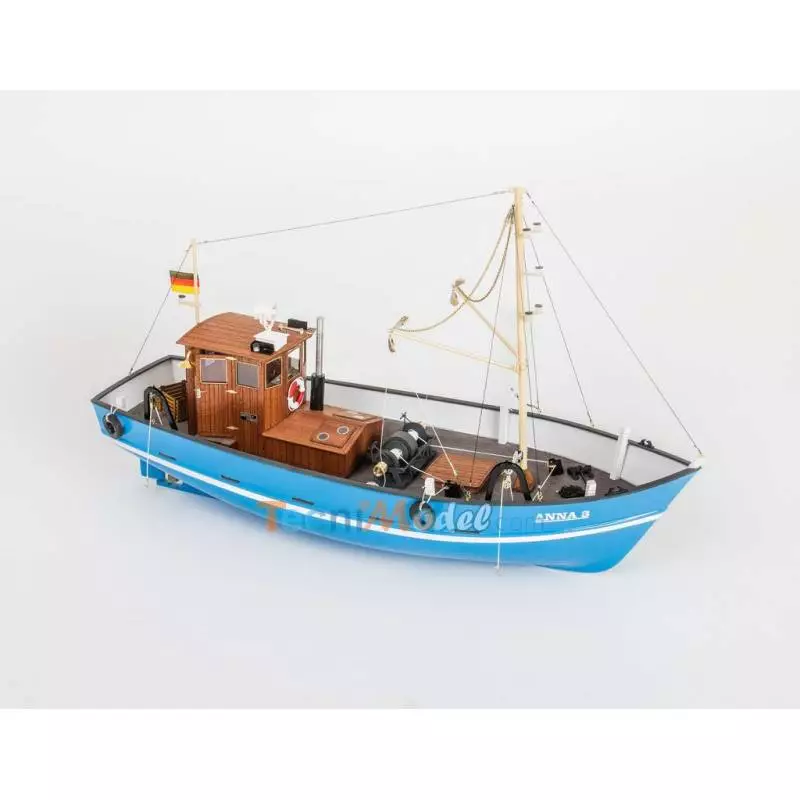

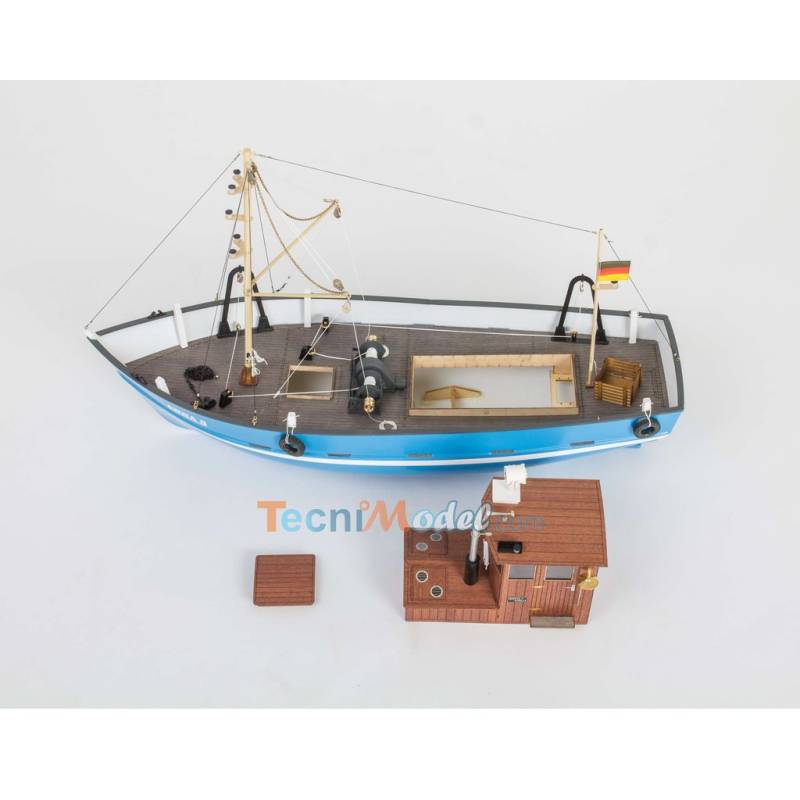

Trawler Anna 3, 1/20 scale radio-controlled kit boat
Aero-Naut 307600
Anna 3 is designed as a typical North Sea and Baltic fishing boat, with a net attached to one side of the hull.
The 1/20 scale gives a vast hull in vacuum-molded ABS. The kit is supplied with laser-cut wooden parts and a deck with all blades and engraved details. The cockpit parts are made of mahogany plywood, and the windows are also laser-cut to match the openings exactly. The mast and booms are made of aluminum.

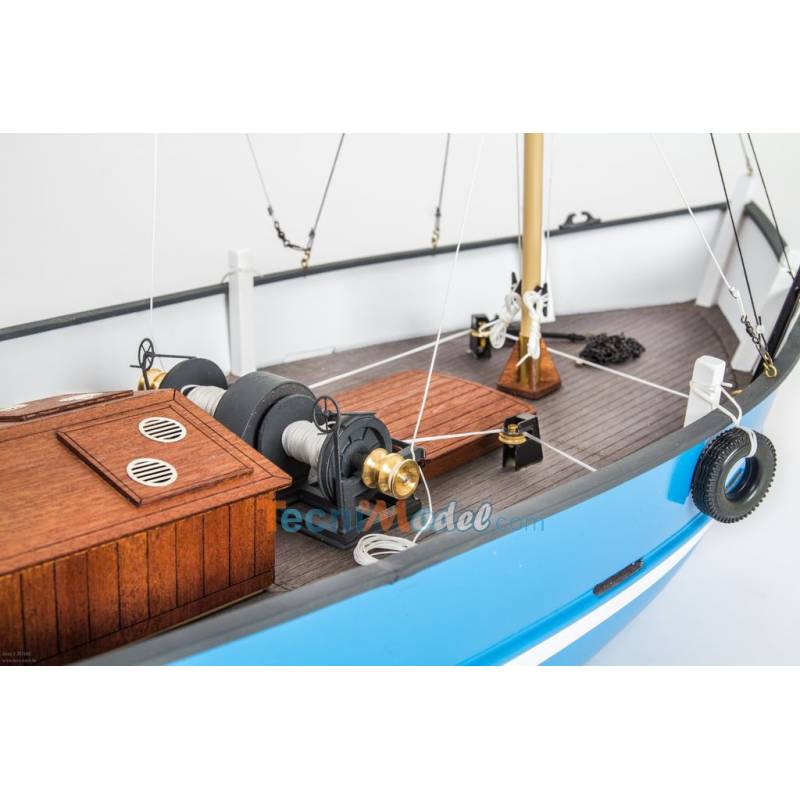

This Anna 3 radio-controlled boat includes a detailed winch which is itself a kit of laser-cut parts and a number of photoetched parts to increase the level of detail. The winch can be easily made functional by installing a servo winch (not included). Other functions can be added as required.
The Anna 3 comes with a set of around 100 photoetched parts to add realism and detail to the model. Most elements of the superstructure are enhanced by photoetched parts.
The searchlight is functional, moving horizontally and vertically, and can be used for research or deck lighting. Many other functions can be added, for example using our light modules.
We recommend the new Race 620 navy motor (art N°: MOAE700047) with a rotational speed of 3,400 rpm for realistic speed.
Detailed instructions explain how to build the model. There are drawings and text for each stage of construction, as is becoming the norm for all recent Aero-Naut models.
Kit contents :
- Hull made of vacuum-formed ABS
- Laser-cut parts and engraved deck
- Laser-cut wood parts (CTP mahogany, CTP pine)
- Aluminum tubes
- Rigging materials
- Propeller shaft
- Detailed manual with French translation (see "Download" on this page)
Dimensions :
- Length: 700mm
- Width: 260mm
- Scale: 1/20
Kit also includes:
- A set of photo-etched fish processing equipment (also available separately under reference: ACAE578194)
- Adjustable searchlight
- Navigation lights
- Anchors
- Cleats
- Winch kit
- Lifebuoys
- Portholes
- Numerous small parts and a set of approx. 100 photoetched parts
Recommended equipment (not included, see "accessories" on this page) :
- Race 620 Navy motor ref: MOAE700047
- Speed controller
- 2 servos (standard for rudder and mini for speedlight)
- Battery
- Minimum 2-channel radio control system
- M4 Ø45mm three-blade propeller ref: PBRA216220
- Shaft coupling
Recommended accessories:
| Length | 700mm |
|---|---|
| Width | 260mm |
| Scale | 1/20 |
| Manufacturer | Aero-Naut |
| Mounting Type | Kit |
| Construction | Hull Plastic |
3076-00 Anna_3_instructions_en
Anna 3 assembly instructions
