Sail Servo 10.5Kg.cm/6v 6 turns
KingMax SW5513-6MA

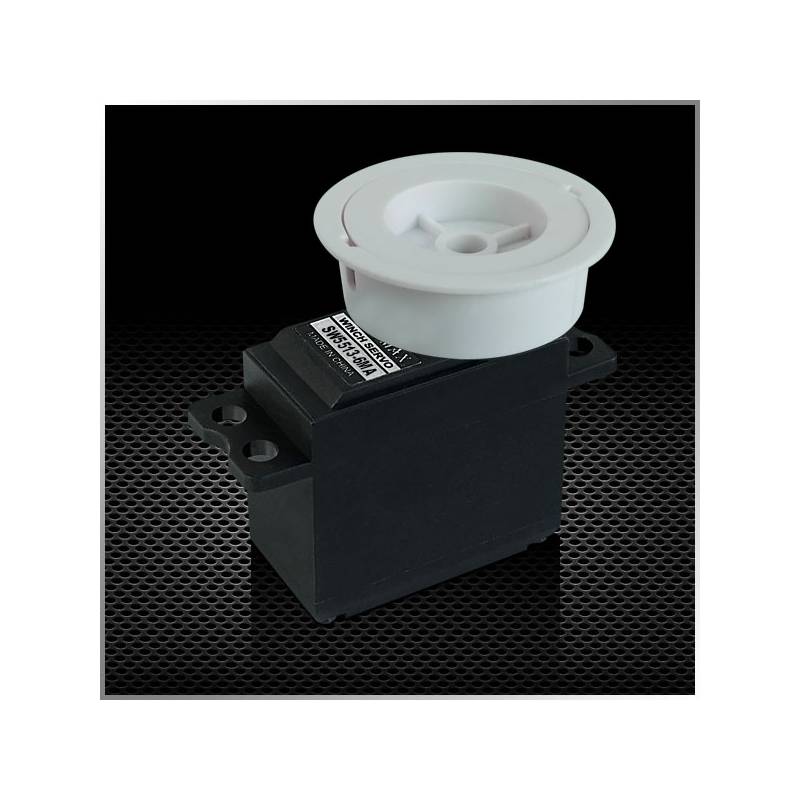

Drum servo winch with standard servo dimensions.
Number of turns: 5.5 to 6 turns.
Metal gearing
The drum is fitted with a listening guide housing.

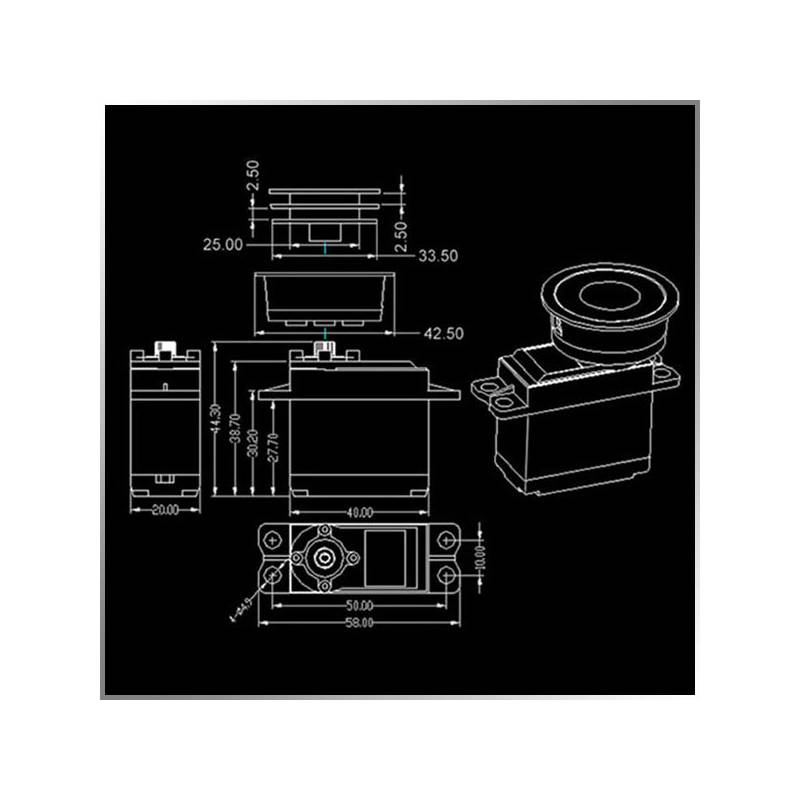

Features :
- Length: approx. 40.5mm
- Width: approx. 20.2mm
- Height: 38mm
- Drum winding diameter: Ø24.5mm
- Drum winding per revolution: approx. 77mm
- Number of turns: approx. 5.5 to 6
- Torque:
- 9.2Kg.cm (4.8v)
- 10.6Kg.cm (6 V)
- Speed/360°:
- 1.1s (4.8v)
- 0,9s (6V)
- Operating voltage: 4.8V - 6V
- No-load current: 110 - 120mA
- Operating current: 300 - 350mA
- Blocking current: 0.9 - 1.05A
- Toothing: 25T
- Connector: JR / Universal type plug
- Connecting cable: length approx. 265mm
- Weight: 55g
| Voltage (V) | 4.8v 6.0v |
|---|---|
| Turn | 6 |
| Torque (Kg.cm) | 9.2Kg.cm(4.8v) 10.6Kg.cm(6v) |
