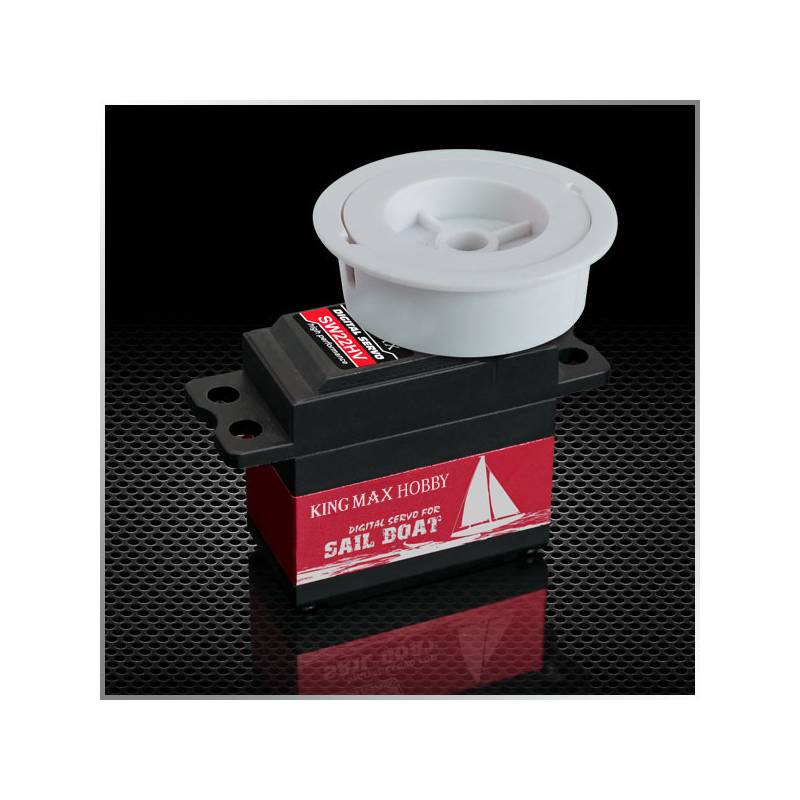

HV Sail Servo 24kg.cm/8.4v 7 turns KingMax SW22HV
Very powerful sailwinch at the size of a standard servo , with a drum protected by a housing and a metal sprocket, for tall radio-controlled sailboats.
Reference : RAKM22HV
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB12
Sail Servo 24kg.cm/8.4v 7 turns
KingMax SW22HV
Very powerful sailwinch at the size of a standard servo , with a drum protected by a housing and a metal sprocket, for tall radio-controlled sailboats.
Suitable for operation with a 2S LiPo battery (max. voltage 8.4V).
This sail winch is characterized by high holding forces and very fast reaction times, which allows precise navigation even in strong winds.
Characteristics:
- Metal sprocketing on ball bearings
- Race: 7 laps max (55cm of listening length)
- Drum winding diameter: 25mm
- Operating voltage: 5v to 8.4v (max power supply: Lipo Battery 2S) ( 8.4v is the voltage of a fully charged Lipo 2S battery )
- Torque:
- 14 Kg.cm under 5V
- 17 Kg.cm under 6V
- 22 Kg.cm under 7.4V
- 24 Kg.cm under 8.4V
- Speed:
- 0.62s/360° under 5V
- 0.52s/360° under 6V
- 0.43s/360° at 7.4V
- 0.37s/360° under 8.4V
- Consumption:
- At rest: 0.01A
- In operation: 0.11 to 0.2A
- At blockage: 3.4 to 5.0A
Case dimensions:
- Length: 40.5mm
- Width : 20,2m
- Height: 39.5mm
- Weight: 68g
Connection cable length JR/Universal about 270 mm
| Voltage (V) | 4.8v 6.0v 7.4v 8.4v |
|---|---|
| Turn | 7 |
| Torque (Kg.cm) | 14kg.cm(4.8v) 17Kg.cm(6v) 22Kg.cm(7.4v) 24Kg.cm(8.4v) |
