Sail Servo SW02BS 39kg.cm/8.4v 6 turns KingMax
High-power sail servo SW02BS 39kg.cm/8.4v 6 turns KingMax
Reference : RAKM02BS
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB12
Sail Servo SW02BS 39kg.cm/8.4v 6 turns
KingMax

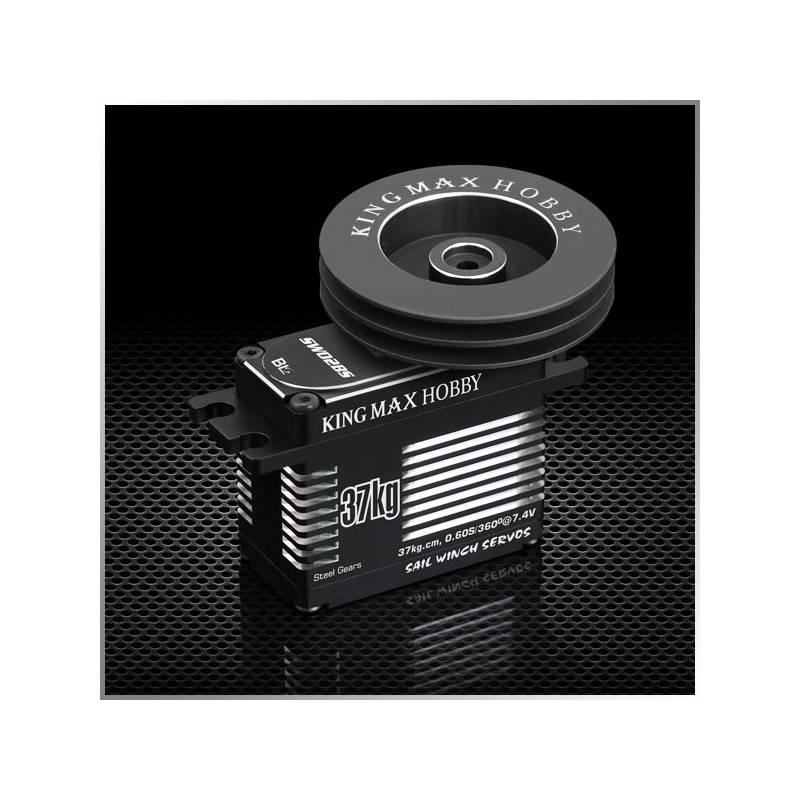

High-capacity waterproof sail servo in a standard servo-sized housing, for use up to 8.4v.
Features of this sail servo :
- Waterproof

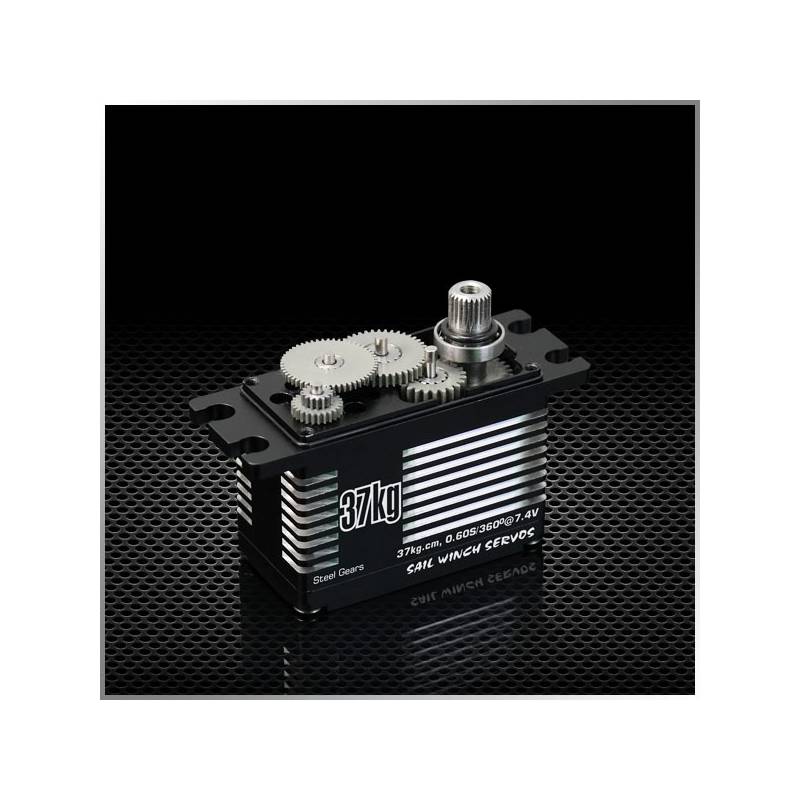

- Metal gears on two ball bearings
- Stroke: 6.25 turns (i.e. 50cm sheet length)

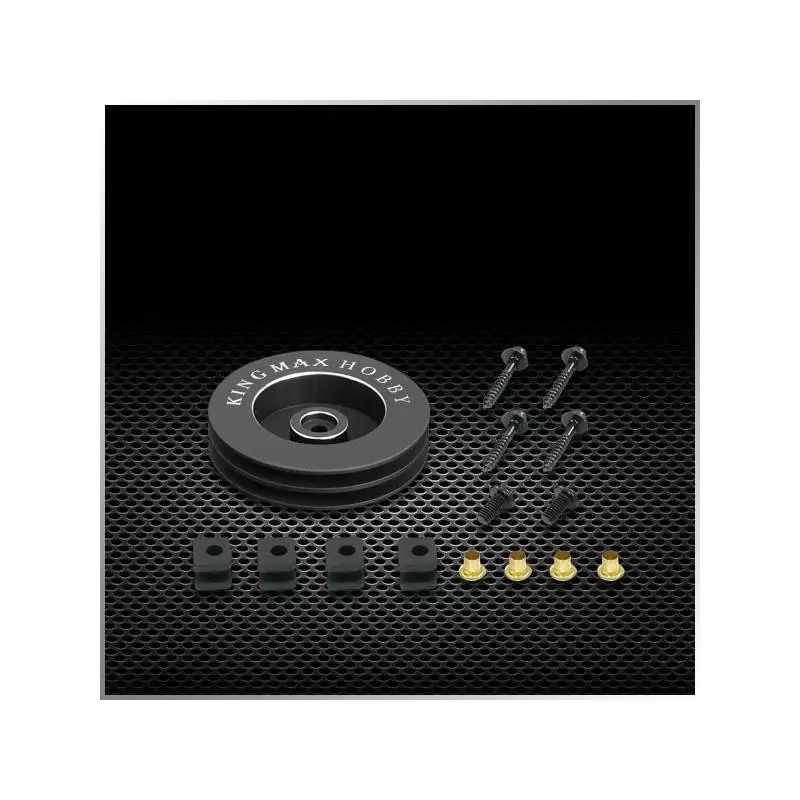

- Aluminum drum.
- Drum winding diameter: 27mm
- Operating voltage: 5v to 8.4v (max power supply: 2S Lipo battery) ( 8.4v is the voltage of a fully charged Lipo 2S battery )
- Torque
- 24 kg.cm at 4.8V
- 29 kg.cm at 6V
- 37 kg.cm at 7.4V
- 39 kg.cm at 8.4V
- Speed (no-load)
- 0.96s/360° at 5V
- 0.78s/360° at 6V
- 0.60s/360° at 7.4V
- 0.54s/360° at 8.4V
- Power consumption
- Idle: 0.01A
- Operating: 390mA to 500mA

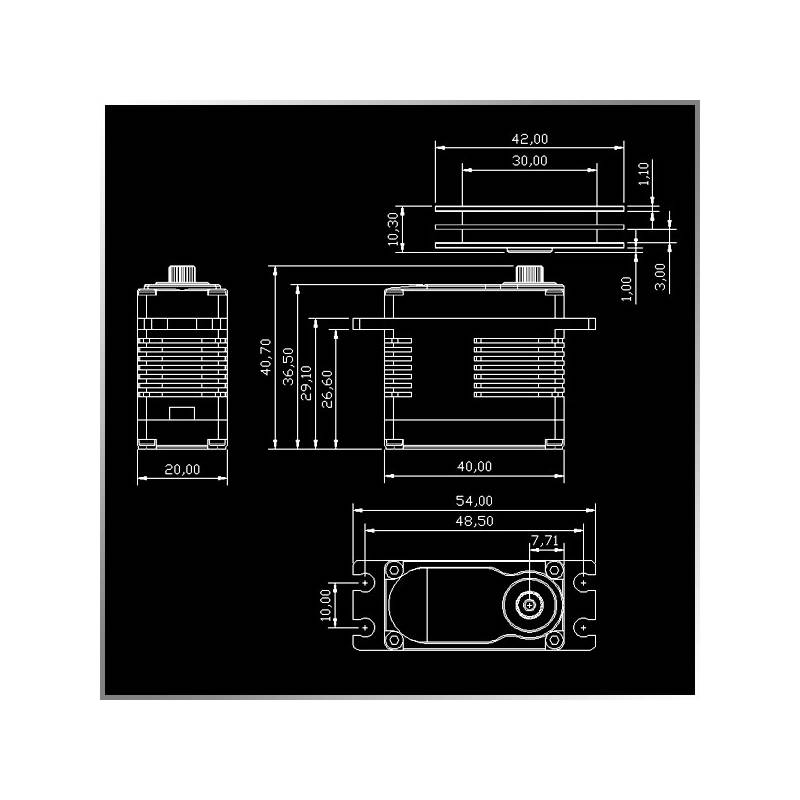

Case dimensions:
- Length: 40mm
- Width: 20mm
- Height: 36.5mm
- Weight: 77g
Length of connection cable JR/Universal: approx. 320mm.
Recommended accessories:
| Voltage (V) | 4.8v 6.0v 7.4v 8.4v |
|---|---|
| Turn | 6 |
| Torque (Kg.cm) | 24Kg.cm(4.8v) 29Kg.cm(6v) 37kg.cm(7.4v) 39kg.cm(8.4v) |
