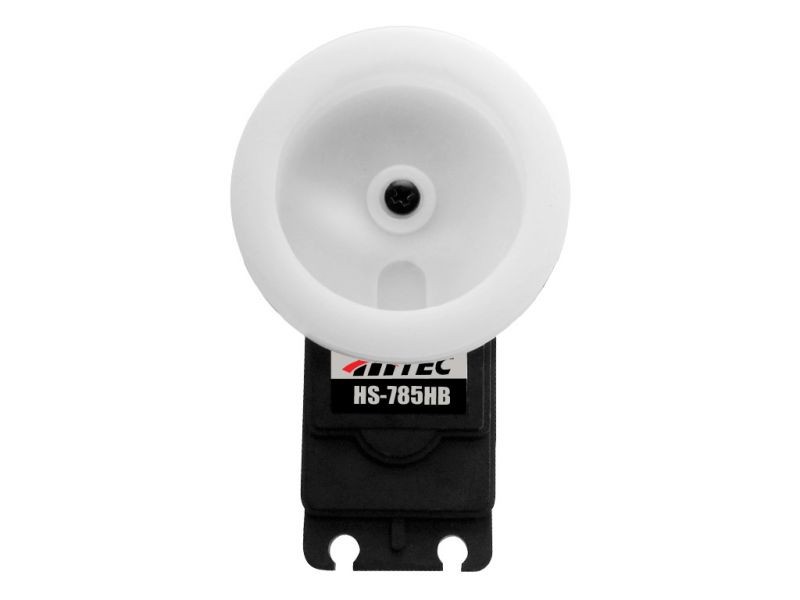

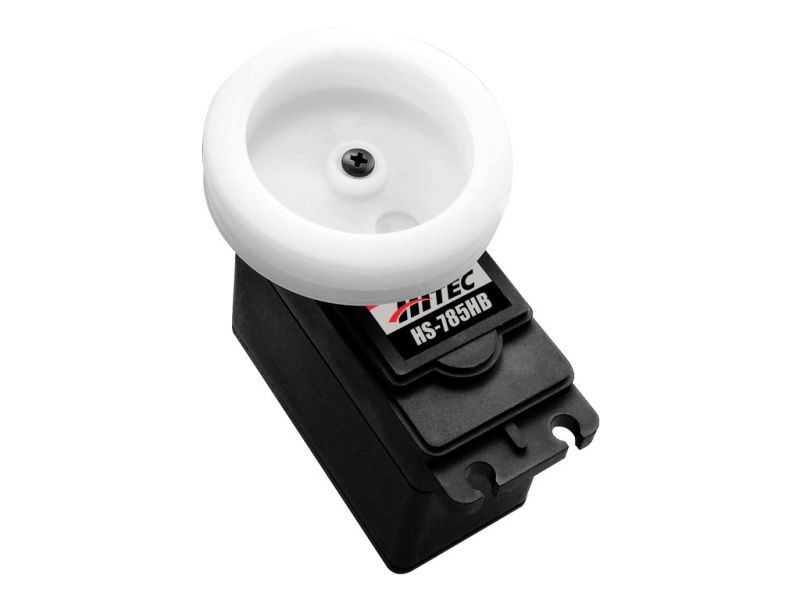

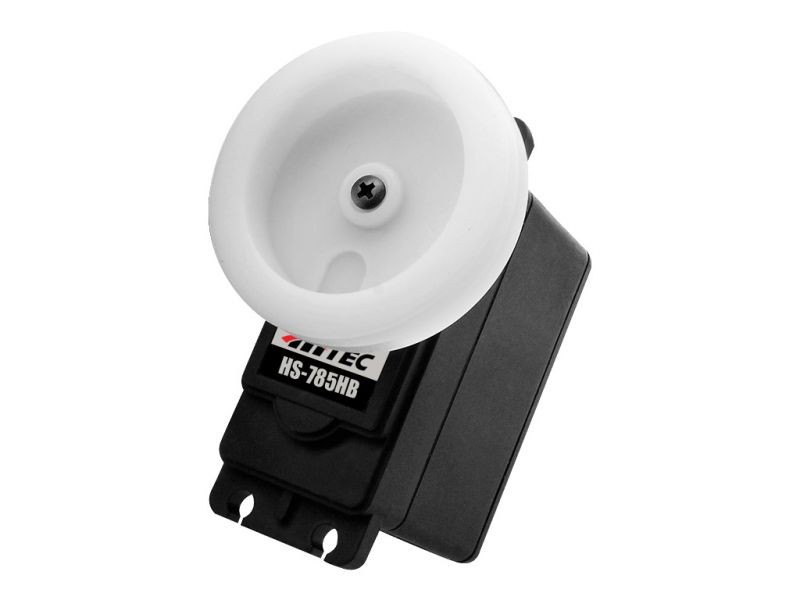

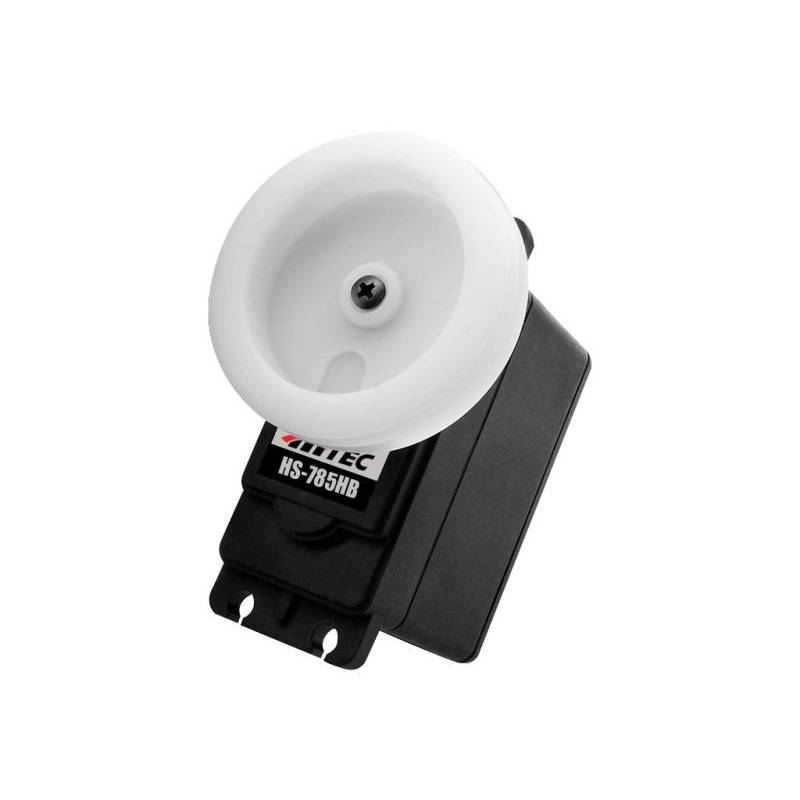

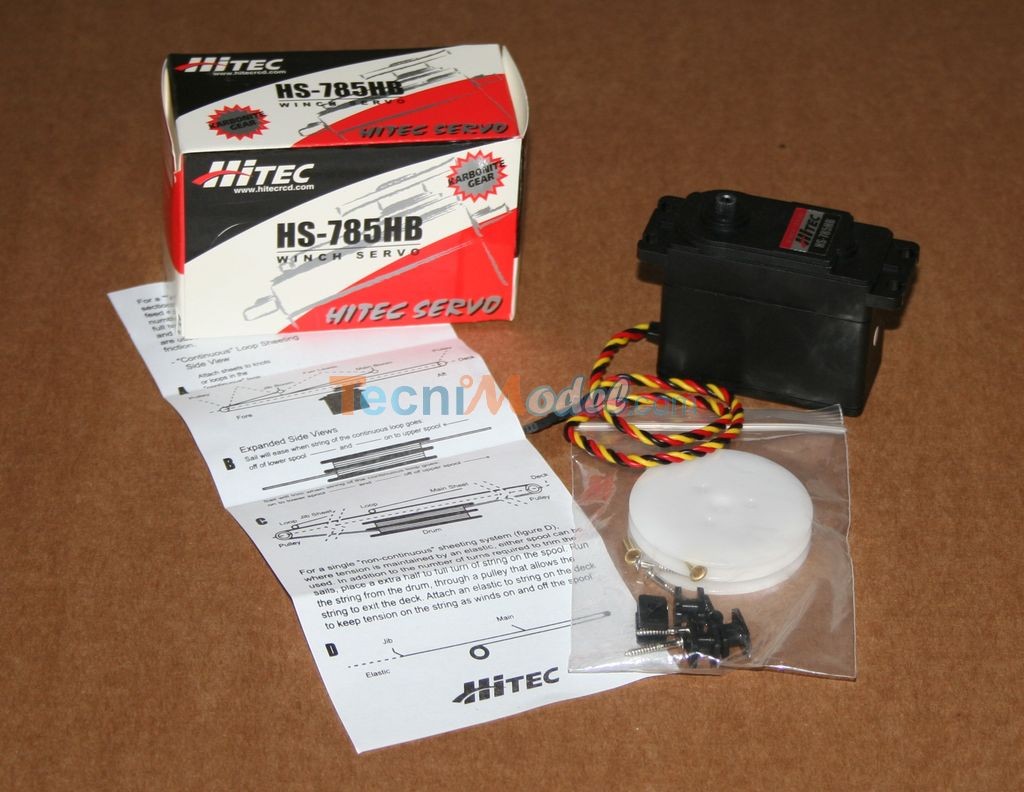

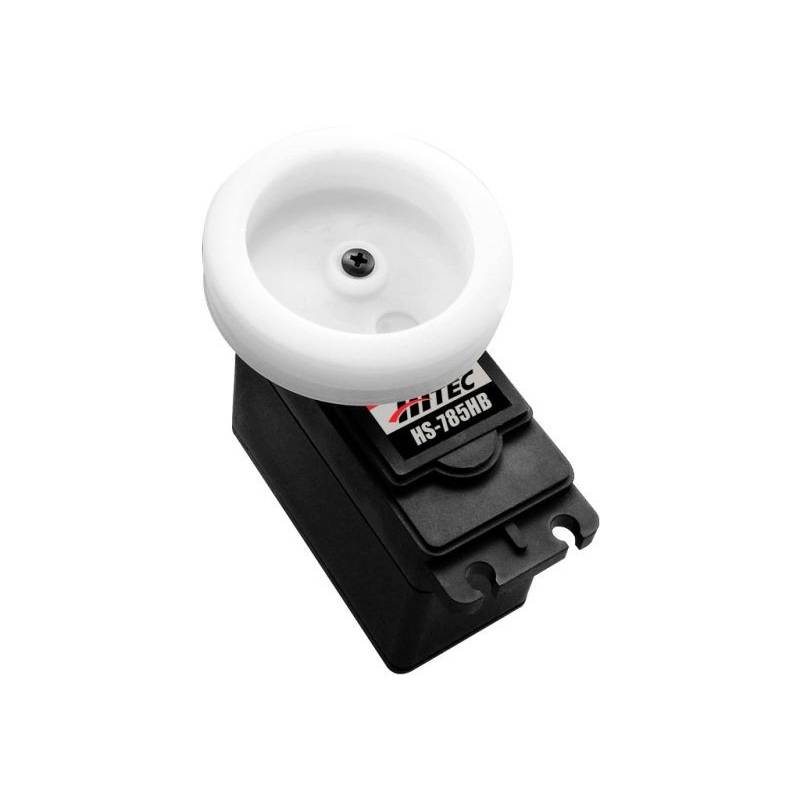

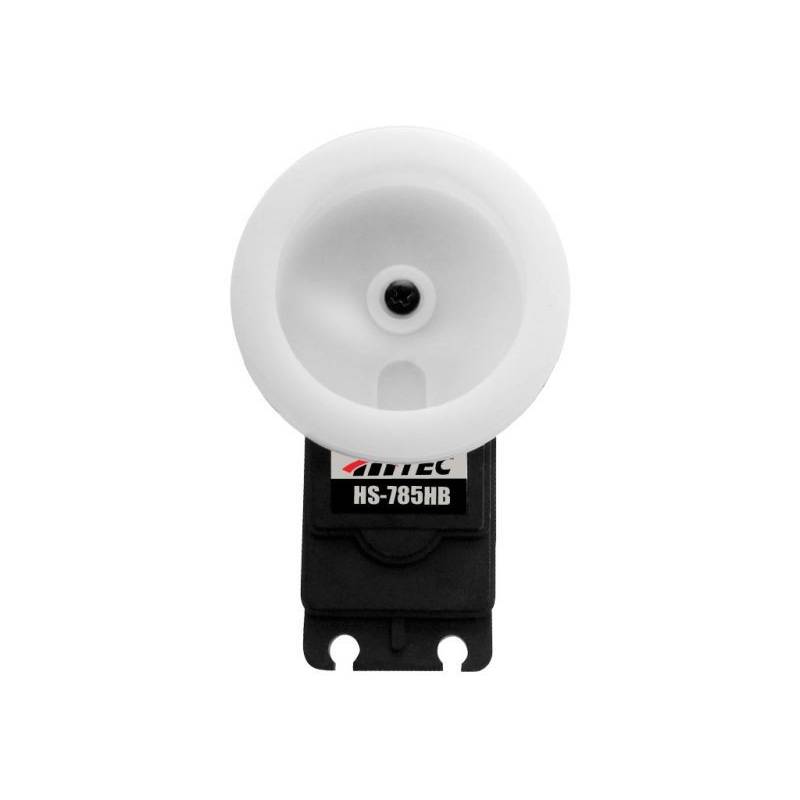

Hitec HS-785HB 13,2Kg.cm sail servo
Hitec HS-785HB 13,2Kg.cm sail servo
Economical drum sail servo with large housing, suitable for a wide range of radio-controlled sailboats.
Number of drum turns: 3.5
Sheet length per turn approx. 120mm
Max. furling capacity approx. 417mm
Reference : RAHI112785
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB07
Hitec HS-785HB 13,2Kg.cm sail servo
Hitec 112785
Economical drum sail servo with large housing, suitable for a wide range of radio-controlled sailboats.
Number of drum turns: 3.5
Sheet length per turn approx. 120mm
Max. furling capacity approx. 417mm
Features:
- Dimensions: 59x29x50mm
- Weight: 110g
- Operating voltage: 4.8V to 6V
- Speed at 4.8V: 1.68/60°
- Speed at 6V: 1.38/60°
- Torque at 4.8V: 11kg/cm
- Torque at 6V: 13.2kg/cm
- Power consumption at standstill: 8mA
- No-load consumption: 250mA
- Stall Current Draw: 1800mA
- Number of drum revolutions: 3.5
- Drum diameter: Ø38mm
- Motor: 3-pole - Brushed
- Cable: AWG22
- Gears: Karbonite
- Bearings : Double ball bearings
- Output: Standard 24 teeth
- Housing: Plastic - Dust and splash resistant
Recommended accessories:
| Voltage (V) | 4.8v 6.0v |
|---|---|
| Turn | 3.5 |
| Torque (Kg.cm) | 11Kg.cm(4.8v) 13.2Kg.cm(6v) |
