Robbe FSW 220 Sail Servo 22Kg.cm
Very powerful and fast brushless motor sail servo with waterproof aluminium housing.
Reference : RARO9112
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)

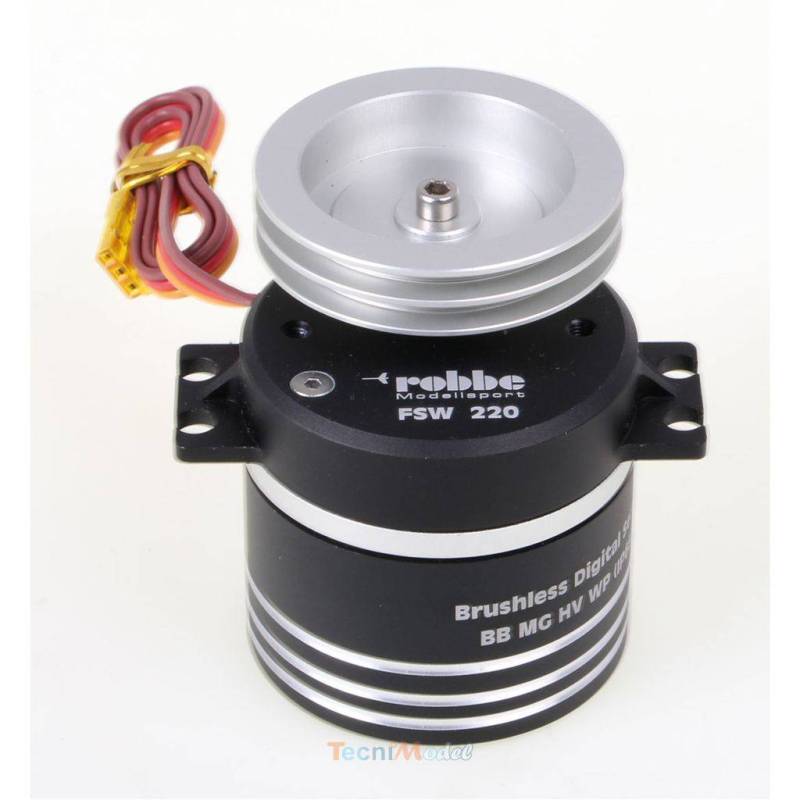

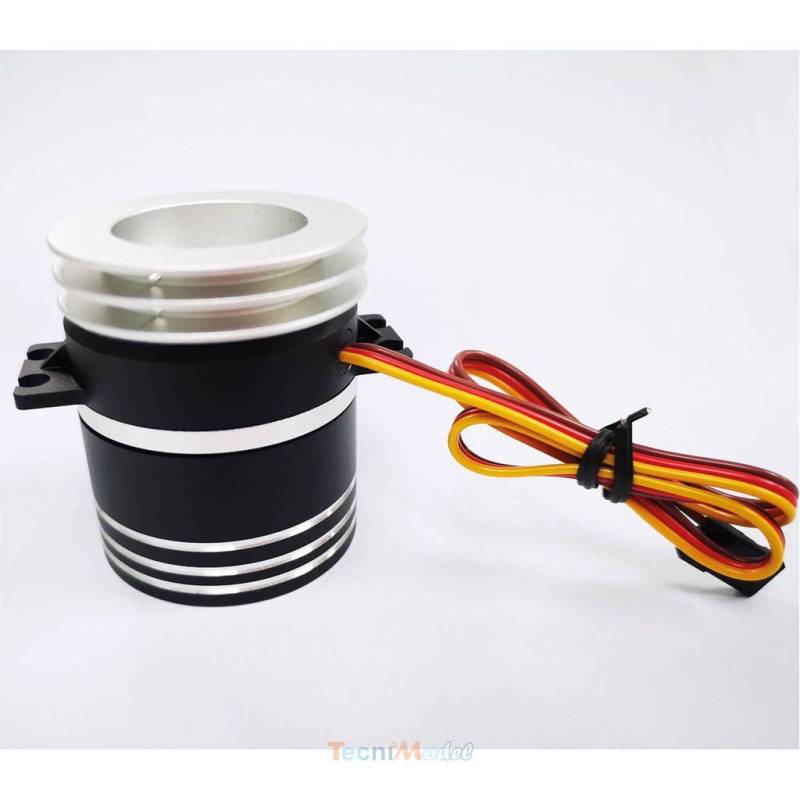

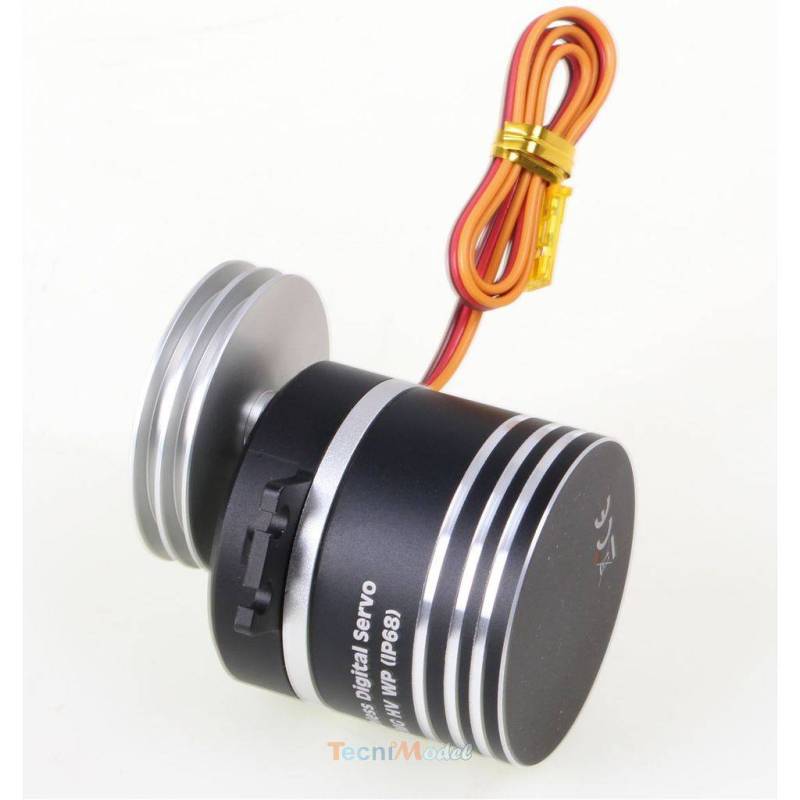

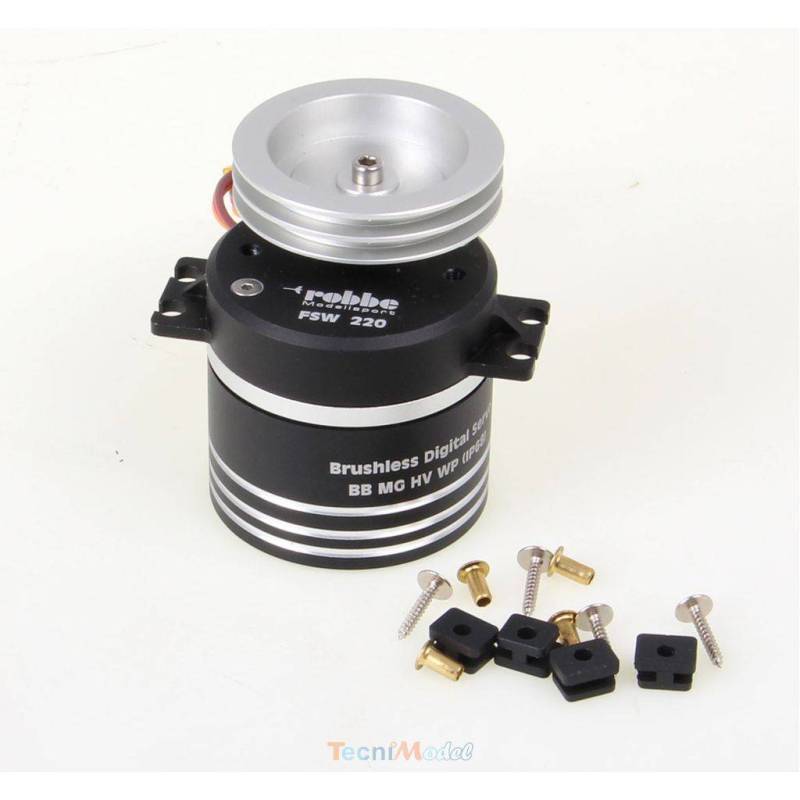

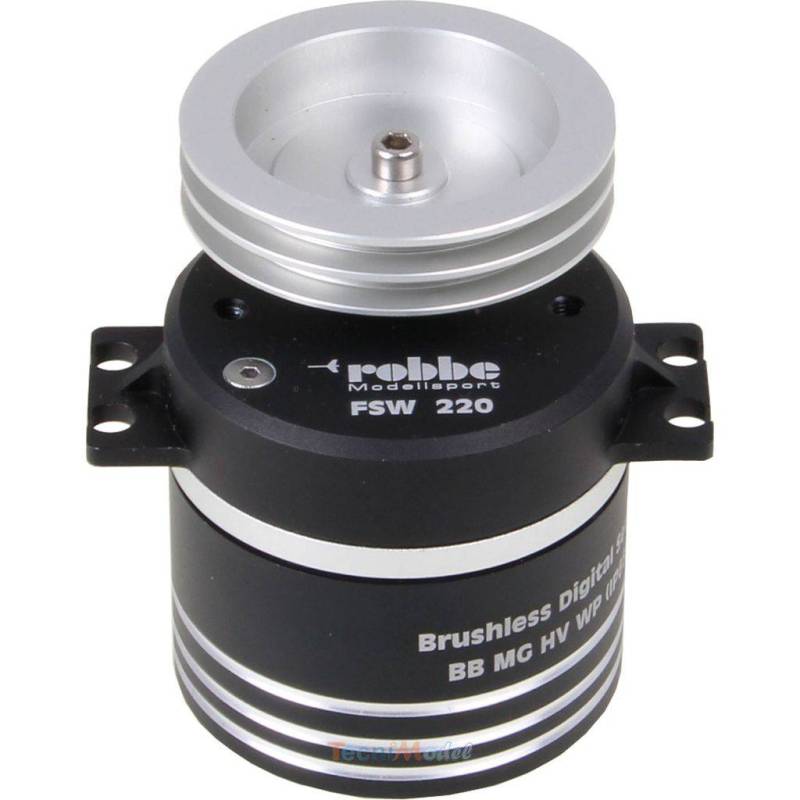

Sail servo Robbe FSW 220
The Robbe FSW 220 sail servo is an extremely strong, robust and precise winch with a waterproof CNC aluminum housing (waterproof rating: IP68), an all-metal gear and a guided gear on double steel ball bearing. It has been designed for extreme loads and durability.
The Brushless motor and digital electronics meet the highest quality standards and guarantee the highest control accuracy and can be used with a voltage of 4.8v to 8.4 V.
Number of turn of the servo: 4 laps.
The Robbe FS servos are high-quality servo motors and manufactured with precision for the RC modeling sector. Thanks to the high manufacturing standard and the quality of processing achieved, you get maximum power, speed, reliability and positioning accuracy. The Robbe series FS servo stands out particularly for its extraordinarily good value for money.
- Bearings: 2
- Gear type: metal
- Aluminum drum
- Number of rounds: 4
- Drum groove diameter: Ø35mm (i.e. 110mm of listening stroke per turn)
- Torque: 22 kg.cm (8.4 V)
- Rotational speed (60 °) 0,07s
- Weight (g) 106 g

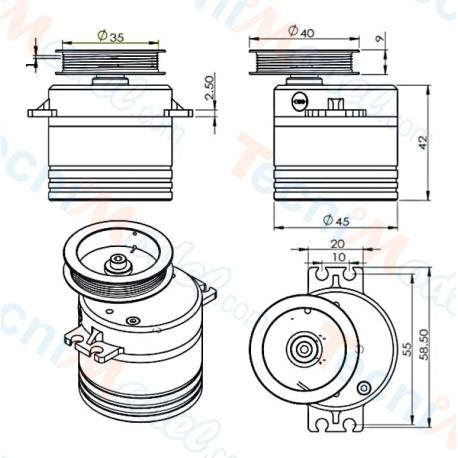

- Length (mm) 60
- Width (mm) 20
- Height (mm) 42
- Type de servo HV
- operating voltage: 4.8v - 8.4v
| Voltage (v) |
Unloaded consumption (A) |
At load consumption (A) |
Speed | torque (KG/cm) |
| 4,8 | 0,4 | 2,80 | 0.115s/60° | 13 |
| 6,0 | 0,43 | 3,60 | 0.09s/60° | 17 |
| 7,4 | 0,45 | 4,00 | 0.075s/60° | 19 |
| 8,4 | 0,50 | 4,90 | 0.07s/60° | 22 |
Recommended accessories:
| Voltage (V) | 4.8v 6.0v 7.4v 8.4v |
|---|---|
| Turn | 4 |
| Torque (Kg.cm) | 13Kg.cm(4.8v) 17Kg.cm(6v) 19Kg.cm(7.4v) 22Kg.cm(8.4v) |
