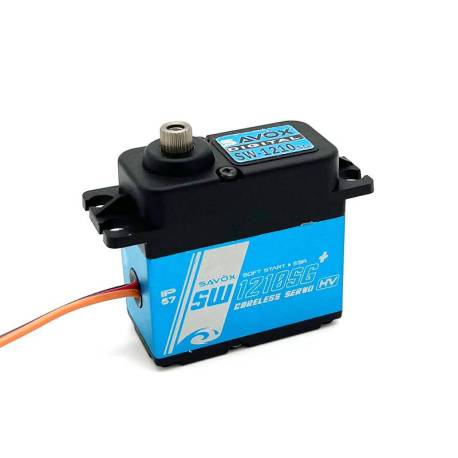

Savöx SW-1210SG+ HV 37Kg.cm/8.4v Waterproof Servo
Savöx SW-1210SG+ HV 37Kg.cm/8.4v Waterproof Servo.
Reference : RASASW1210SGPLUS
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AC03
Savöx SW-1210SG+ HV 37Kg.cm/8.4v Waterproof Servo
SW-1210SG+

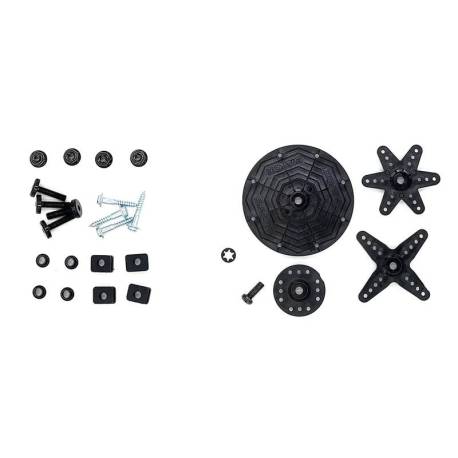

Delivery: one savöx SW-1210SG+ servo, set of horns and screws.
Features:

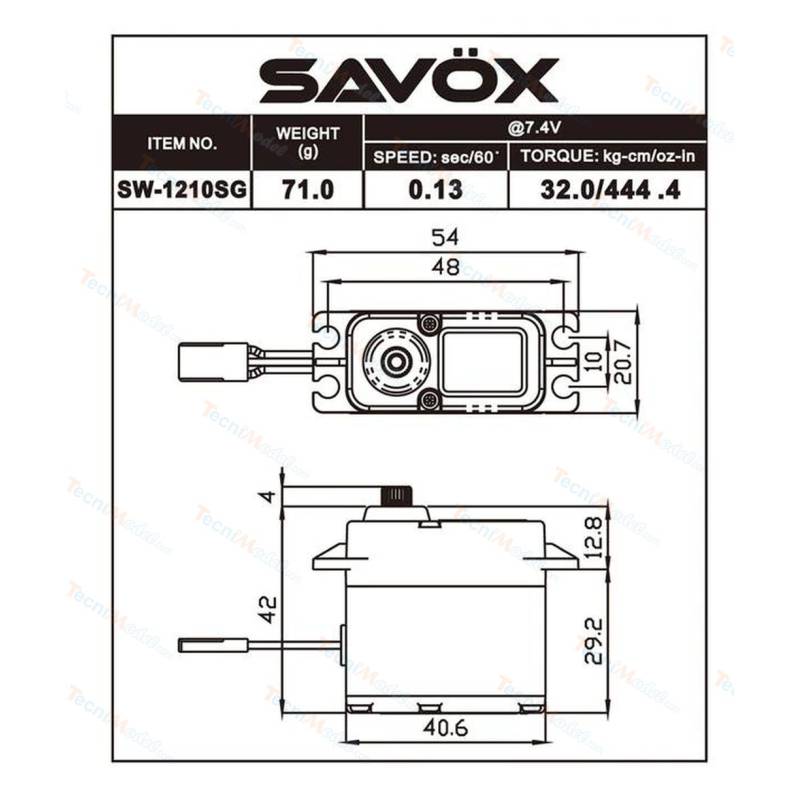

- Dimensions: 40.6/20.7/42 mm
- Weight: 71 g
- @7.4v : Speed 0.13/60° Torque 32 kg-cm
- @8.4v : Speed 0.12/60° Torque 37 kg-cm
- Coreless motor for high speed, high efficiency and low power consumption.
- Sprocket: Steel
- Bearings: 2
- Completely sealed body
- Operating temperature: 14° - 122°F (-10° - 50°C)
- Operating current (no-load): 120mA @6.0V, 150mA @7.4V
- Stall current (blocked state): 6000mA @6.0V, 7400mA @7.4V
- Idle current: 5mA @6.0V, 5mA @7.4V
- Wire length: 150 ± 5mm
- Output gear spline: 25 teeth
- Operating travel: 100° (1000 → 2000 µ seconds)
- Neutral position: 1500 µ sec
- Pulse width: 800 → 2200 µ second
- Maximum travel: Approx. 130° (900 → 2100 µ second)
- Refresh rate: 333 Hz
