Motor for the detachable gooseneck of the low-loader semi-trailer CARSON
Carson 500907703

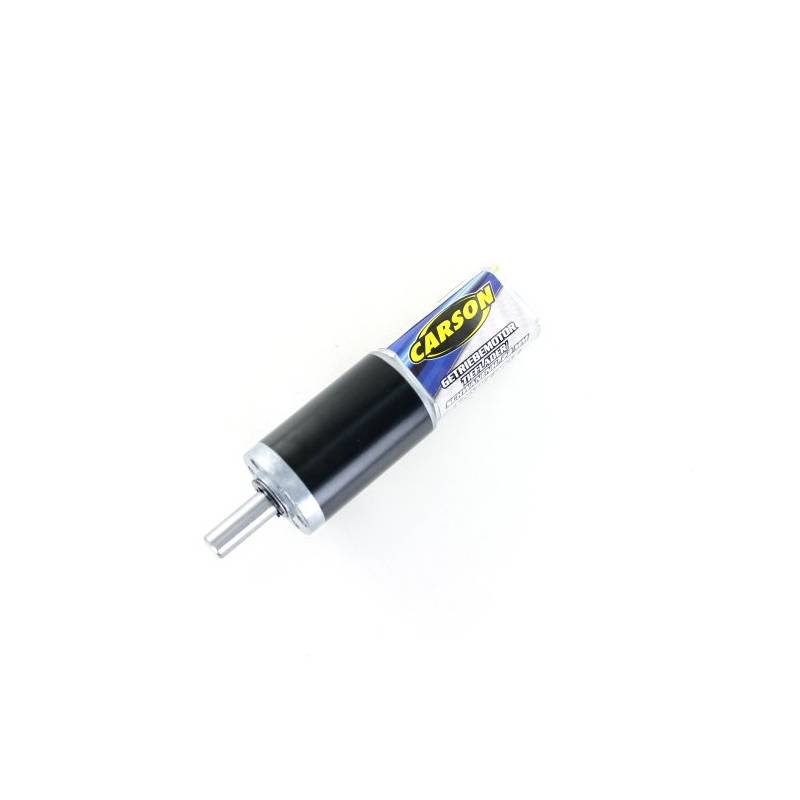

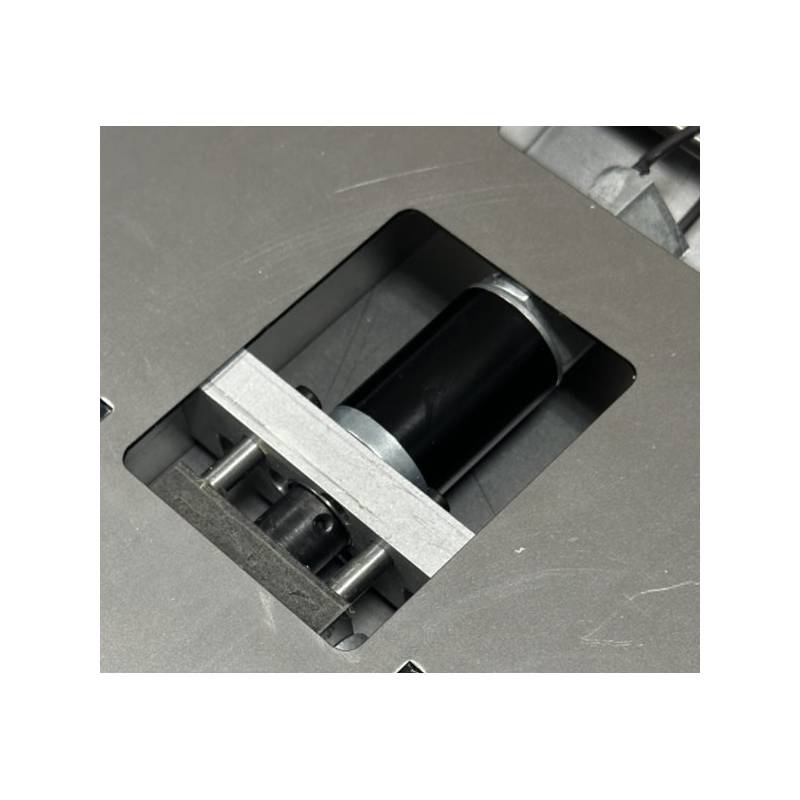

Geared motor suitable for driving the gooseneck mechanism of the low-loader semi-trailer with detachable gooseneck Carson ref: (see "accessories" below).
Designed for loads in excess of 20kg.
Features:
- Power supply: 7.2V
- No-load speed (at 7.2V): 136rpm
- Power consumption on load: 1.35A
- Max. torque: 688mNm
- Reduction ratio: 110:1
- Weight: 88g
- Dimensions
- Overall length: 90mm
- Diameter: Ø22mm
- Output shaft: Ø6x15mm
- 3 M3 mounting holes
