Low-loader semi-trailer with detachable gooseneck 1/14 CARSON

Low-loader semi-trailer with detachable gooseneck 1/14

Carson 500907700

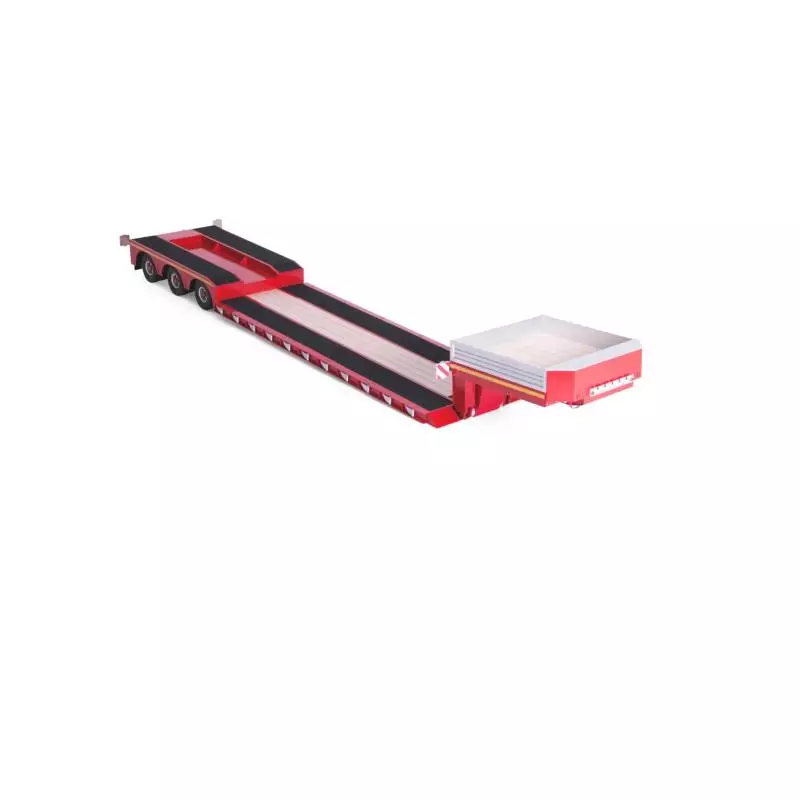

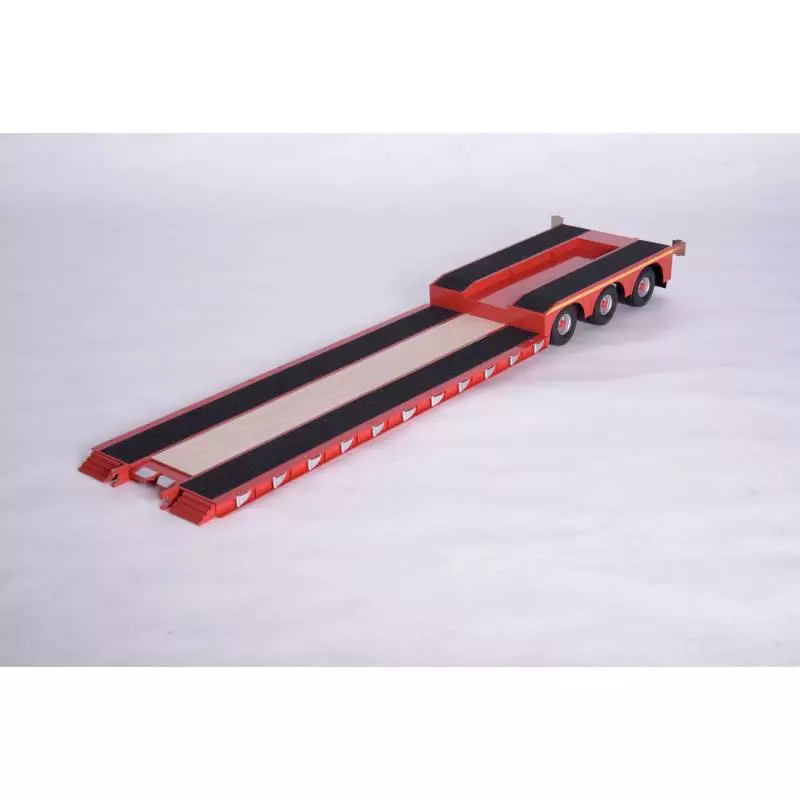

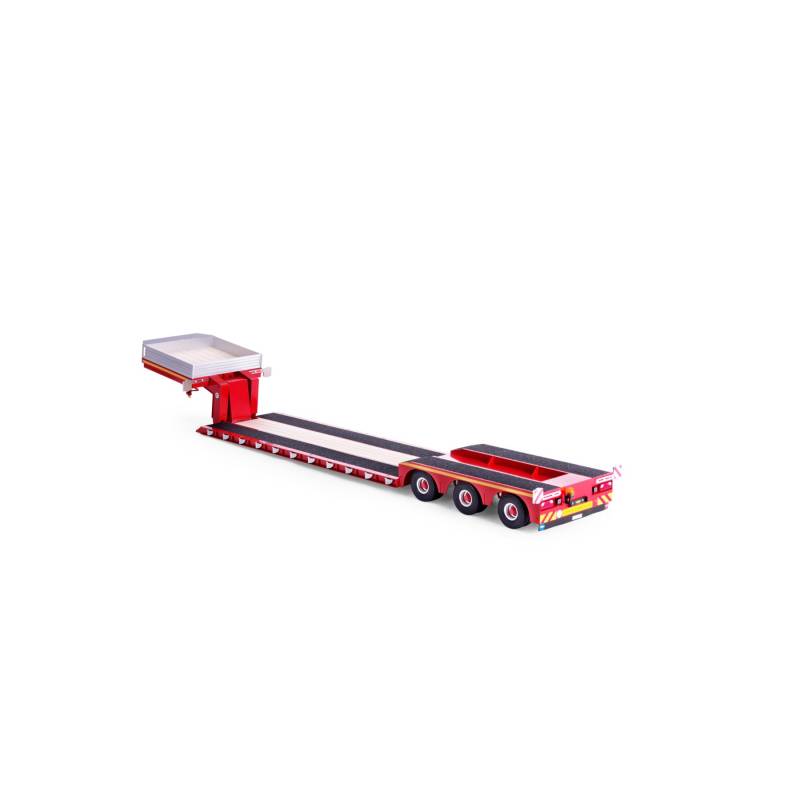

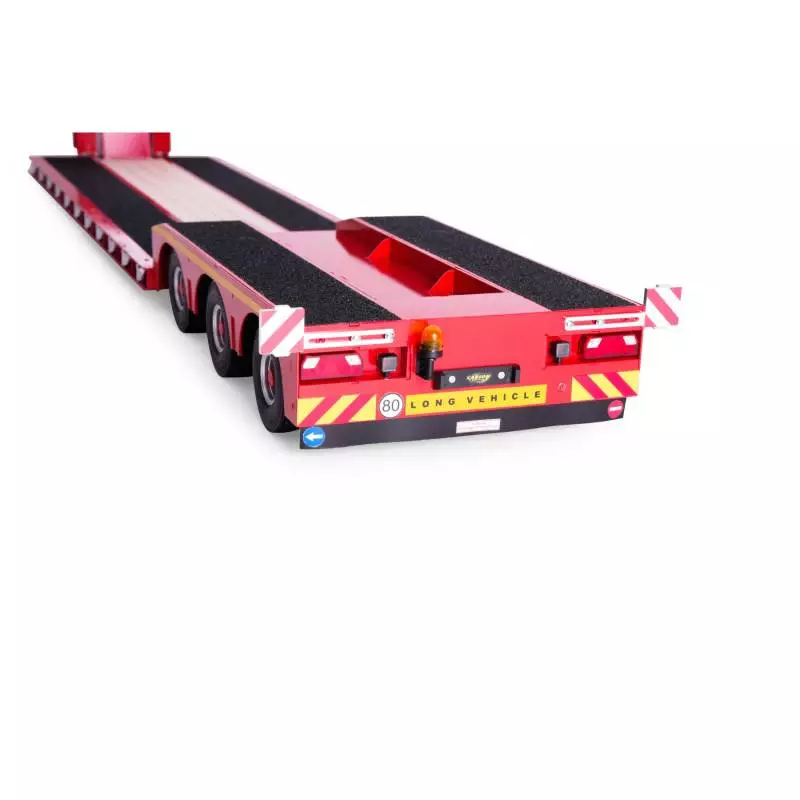

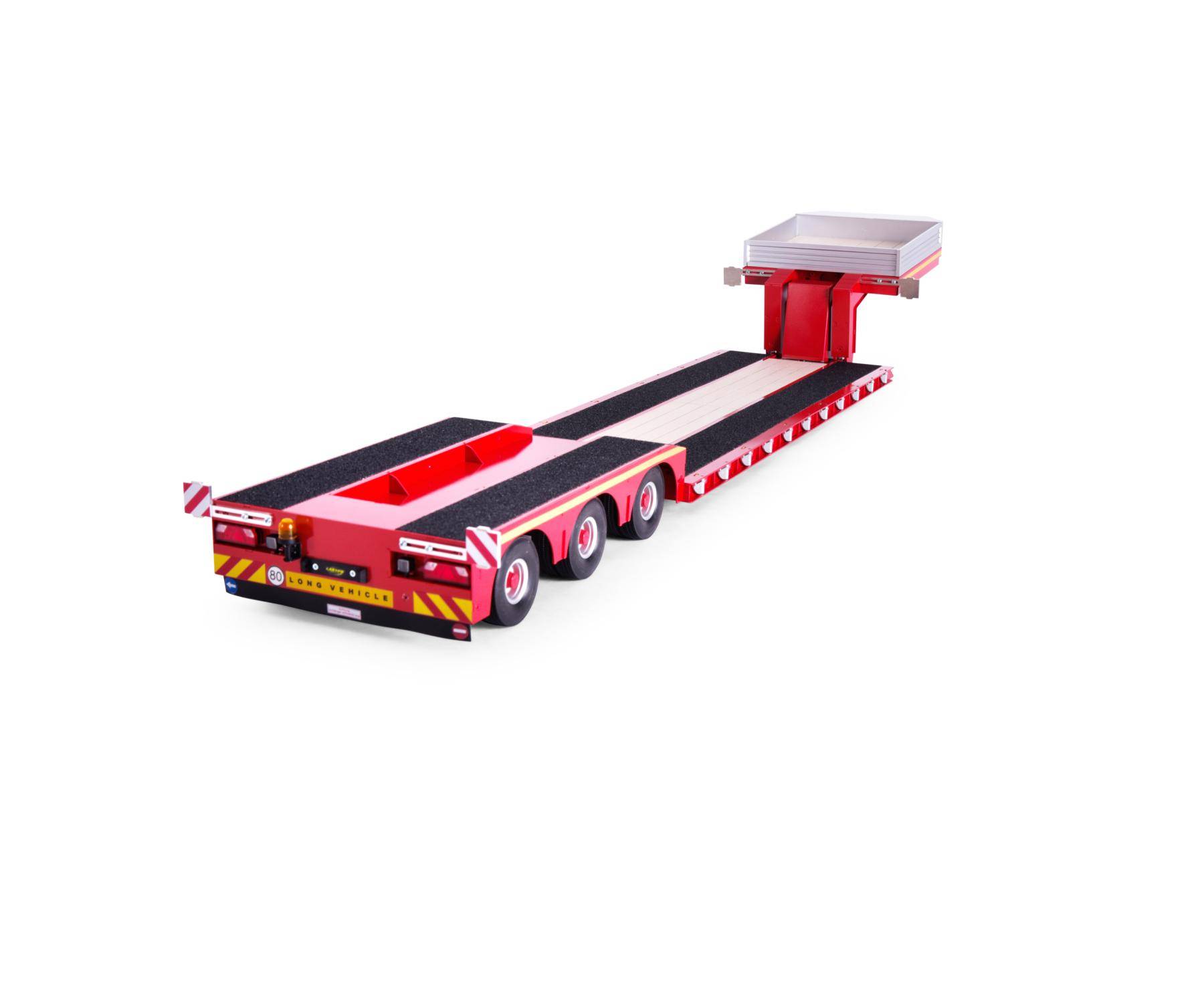

1/14 scale reproduction of a low-loader semi-trailer with detachable gooseneck.

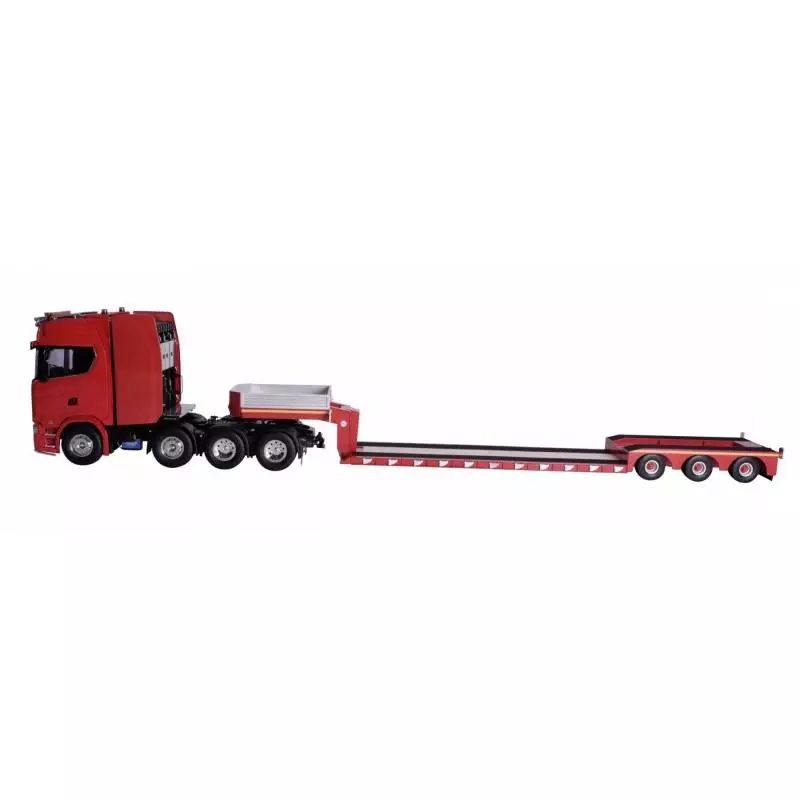

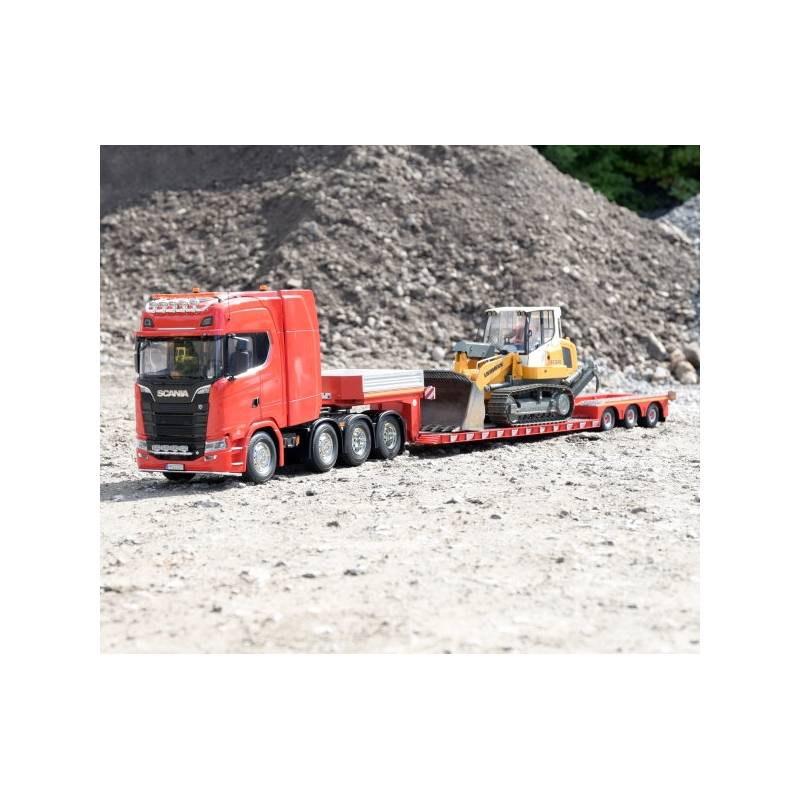

This trailer is designed to be towed by RC trucks Tamiya 1/14th and equivalent.

Kit to be assembled and painted.

Features :

• Frame and gooseneck in 1mm and 2mm laser-cut and CNC-bent steel
• Frame in torsion-resistant sandwich construction

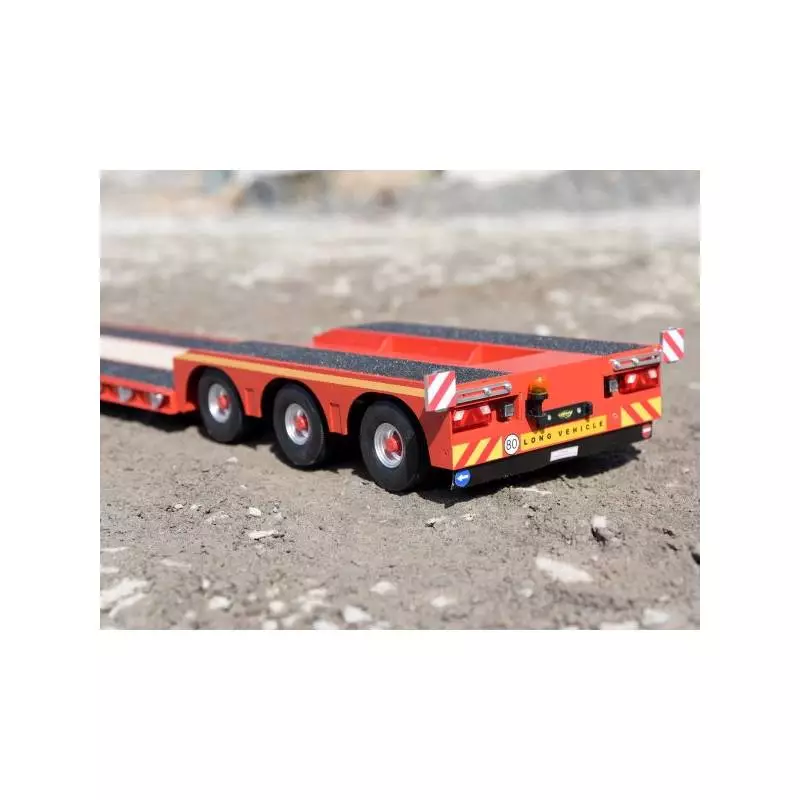

• 3 axles with ball-bearing-mounted twin wheels and leaf-spring suspension

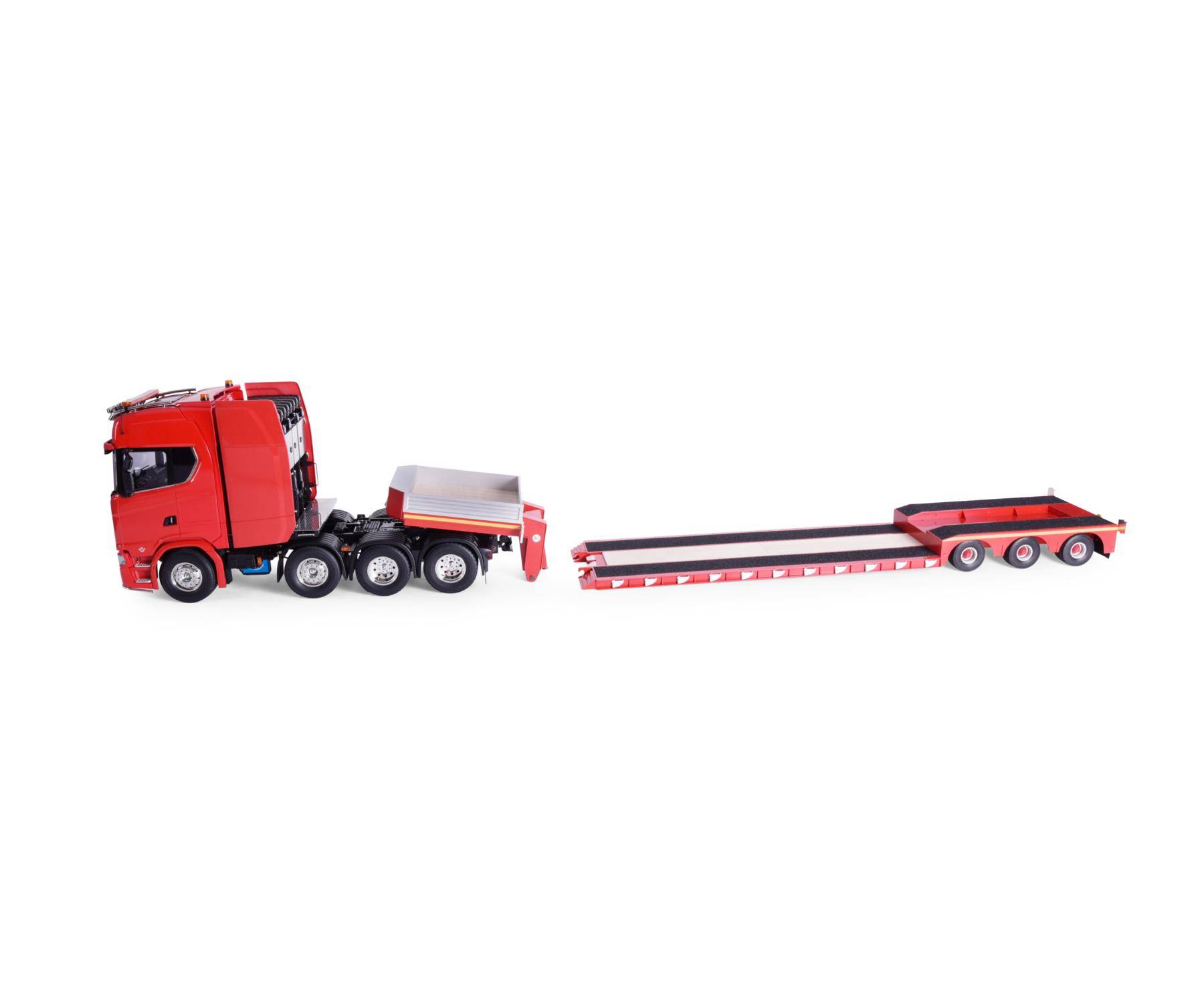

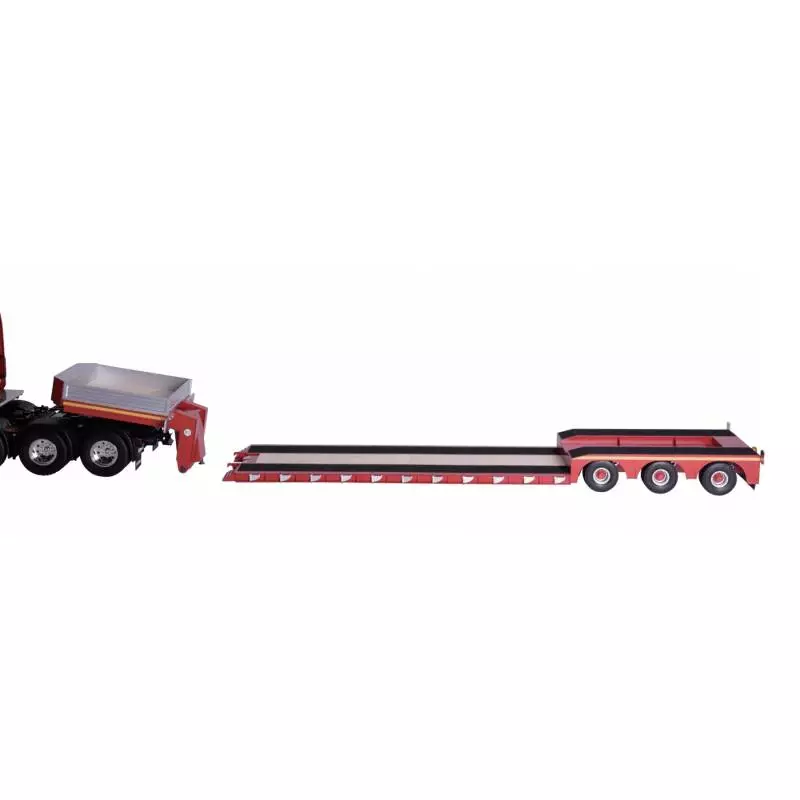

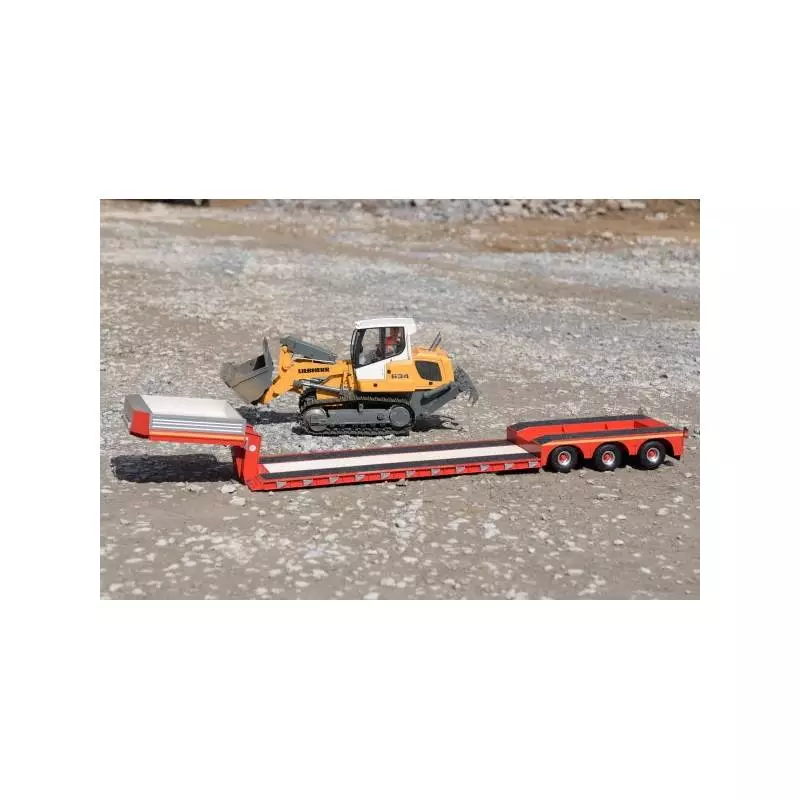

• Detachable motorized gooseneck (requires motor ref: PCCAC500907166 for electric operation)
• Solid aluminum lifting system

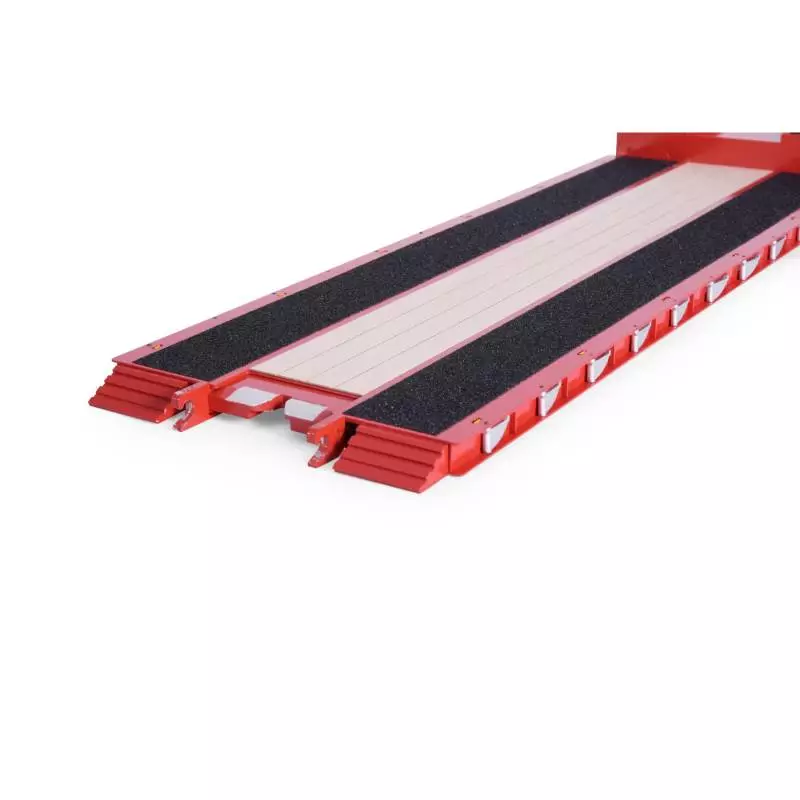

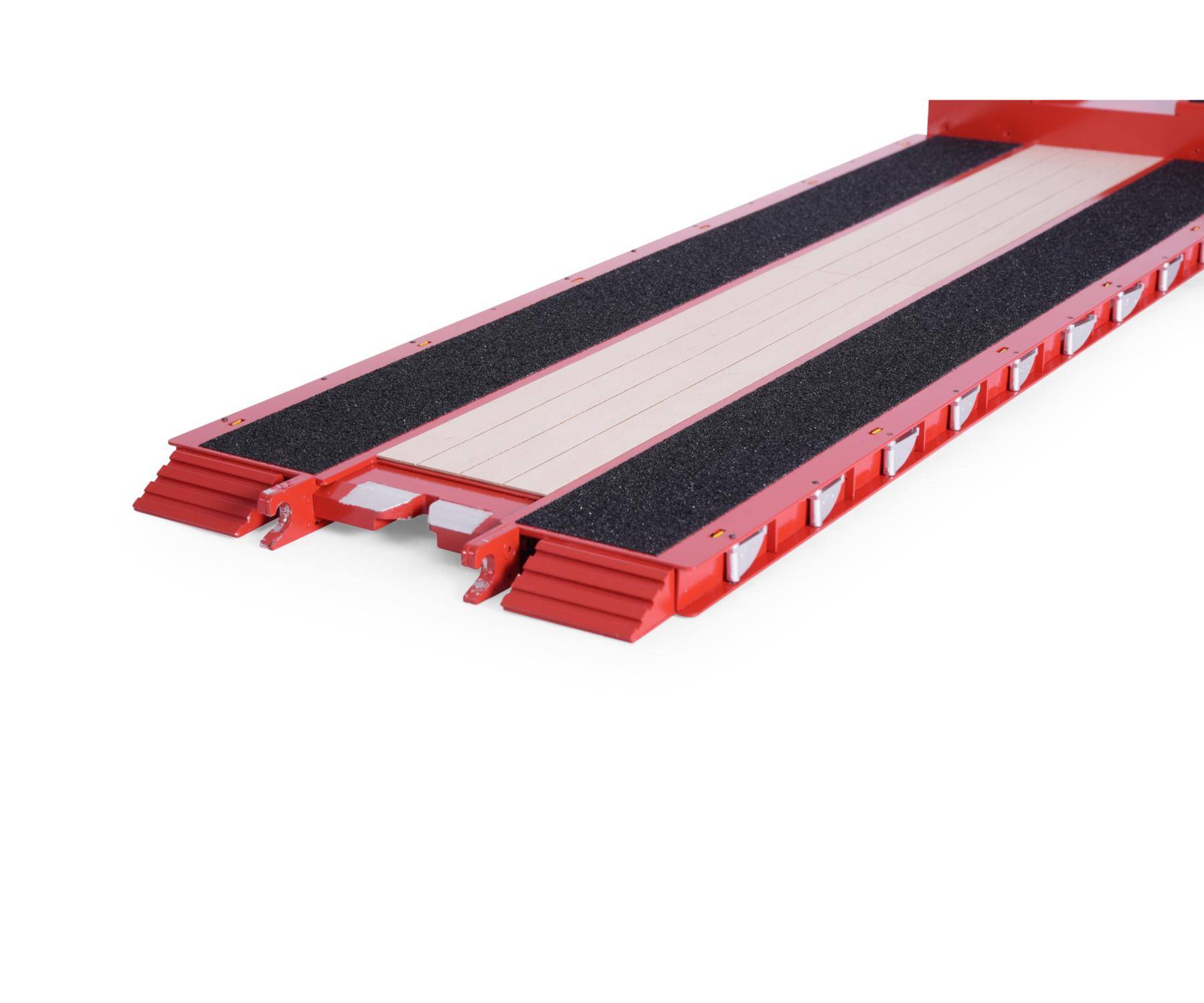

• Wooden floor
• Extremely detailed model featuring

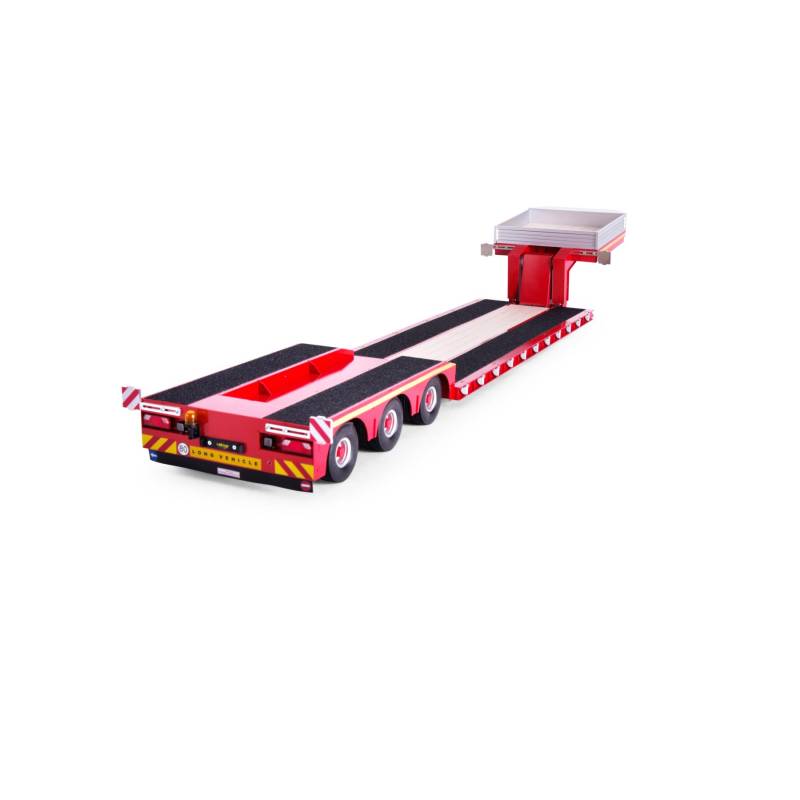

  • 2 illuminatable 7-chamber lights
  • Illuminatable license plate holder
  • Flashing beacon holder and mounting holes for 2 square work lights

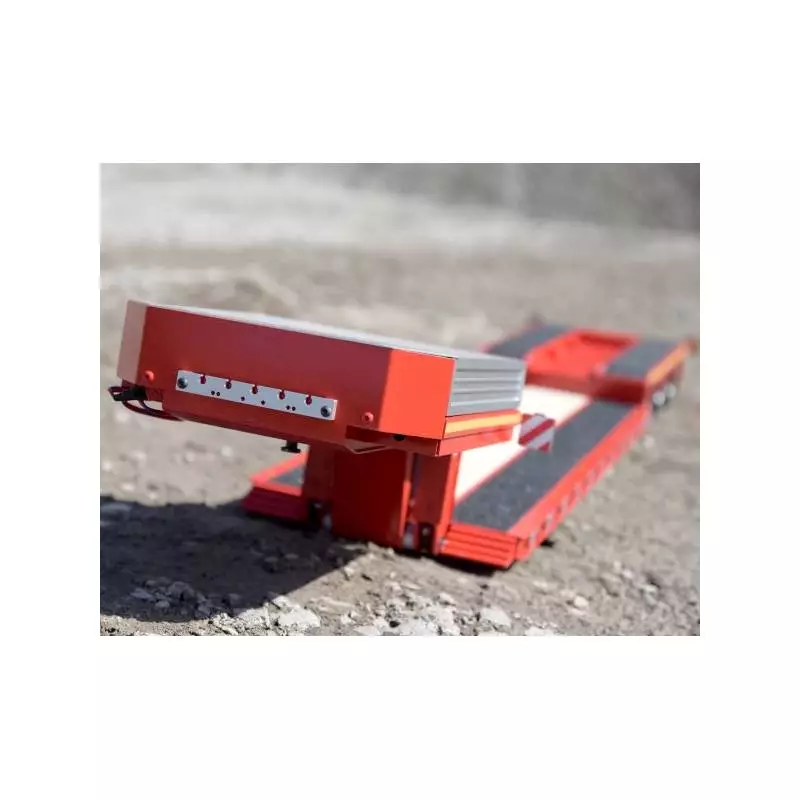

  • Storage box with lid (magnetic closure) on gooseneck
  • 12 retractable tie-down rings to secure the load
  • Functional wideners
  • Front and rear gauge plates
  • Flap
  • Decorative decal sheet
• Two storage compartments under the platform for electronic modules
• Prepared to accept steering axles (ref: PCCAC500907699)
• Scale: 1/14
• Length: 1150mm
• Width: 205mm with wideners
• Height: 170mm
• Platform length: approx. 565mm
• Total empty weight: 7,500g (gooseneck 2,500g, low-bed 5,000g)
• Max. loading capacity: 25kg

Required for operation not included (see "accessories" below):

• Drive motor for lifting system:
  • For loads under 20kg ref: PCCAC500907166
  • For loads over 20kg ref: PCCAC500907703
• Thor14 Boost inverter to control the motor from the radio remote control
  or
• Wired switch for manual operation of lifting system
• 7.2V - 7.4V battery
