Steering axle for low-loader trailer 1/14

Steering axle for low-loader trailer 1/14

Carson 500907699

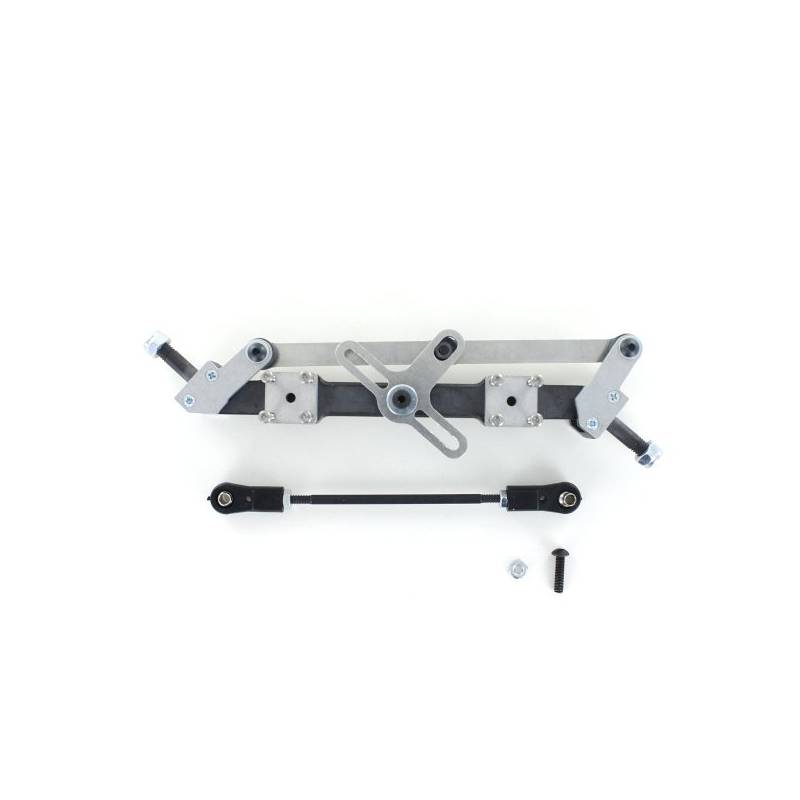

Low-loader steering axle in 1/14 scale. Suitable for CARSON semi-trailers Goldhofer® BAU STN-L3 low-loader and the 3-axle low-loader with detachable gooseneck ref: KRCA500907700, as well as the Goldhofer® TU4 trailer.

This axle is also ideal for self-build applications.

Designed for a 76mm wide chassis.

Specifications:

• Track width: 185-190mm
• Scale: 1/14
• Steel axle body and steering knuckles
• Steel wheel axles
  • Length: 18mm
  • Thread: M5
• The steering knuckles are mounted on plain bearings
• Aluminum Horn and steering gear

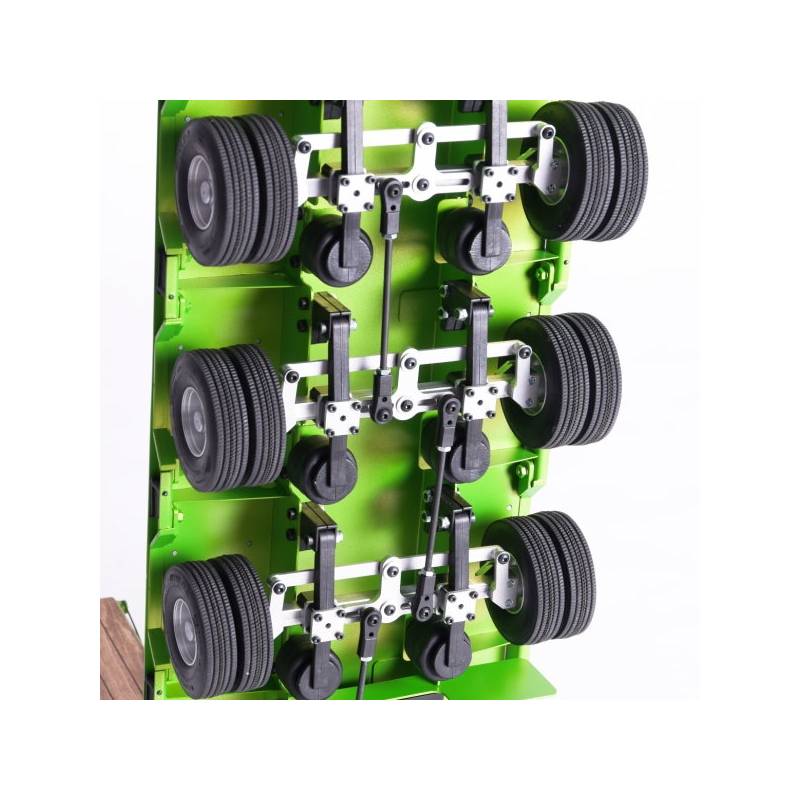

• Steering linkage equipped with M3 ball joints for connecting another steering axle

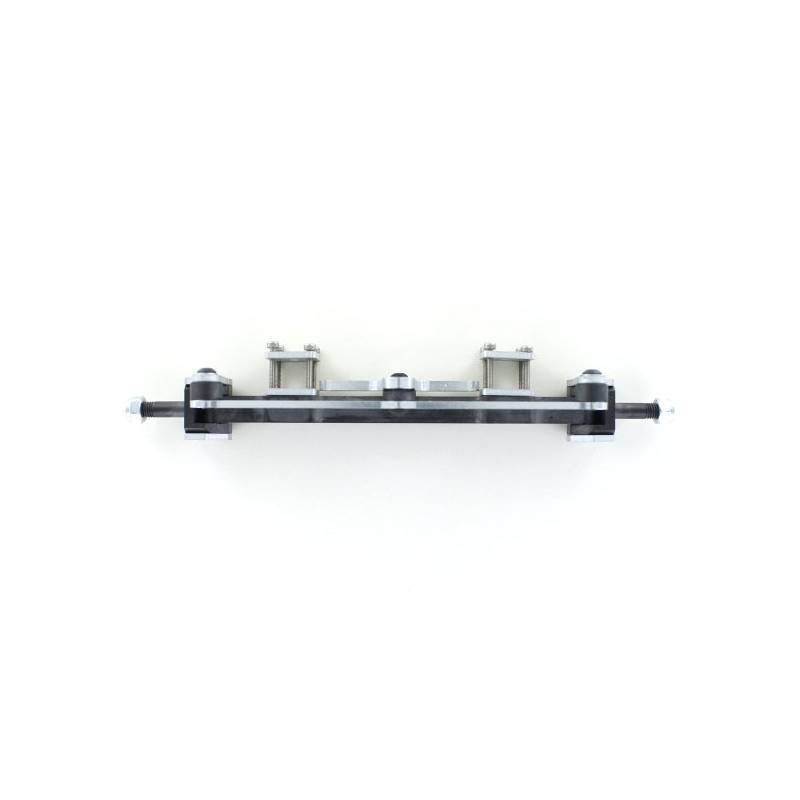

• Axle body dimensions
  • Length: 162mm
  • Height: 18mm
• Wheel axle diameter: Ø5mm
• Max. steering angle: 45°
• Weight: 125g

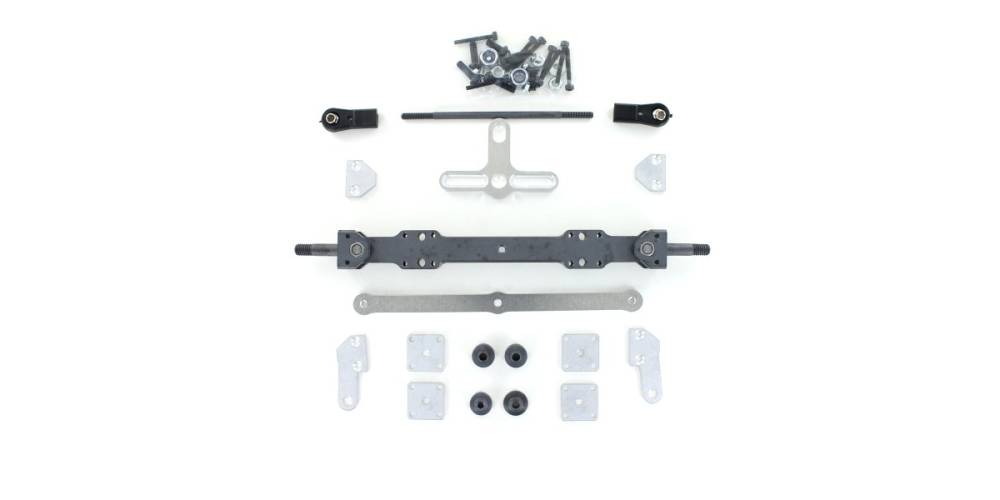

Scope of delivery: steering axle kit and assembly instructions

For use with CARSON Goldhofer® BAU STN-L3 ref: KRCAC500907060, item ref: PCCAC500907698 is required.

For use with the CARSON low-loader semi-trailer with detachable gooseneck ref: KRCA500907700, item ref: PCCAC500907701 is required.

Not suitable for wide wheels.
