MAX Speed 500 brushed motor
KRICK 42245
Economical, high-performance brushless DC motor for all model-making applications.
Supplied without interference suppression, see "accessories".
Technical specifications:
- Rated speed: 14200 rpm at 7.2V
- Load speed: 12000rpm at 7.2V
- Voltage range: 4.8V - 12V
- No-load current: 1.5A
- Current at max. Output current: 6.8A
- Blocking current: 36A
- Shafts: Ø3.17mm

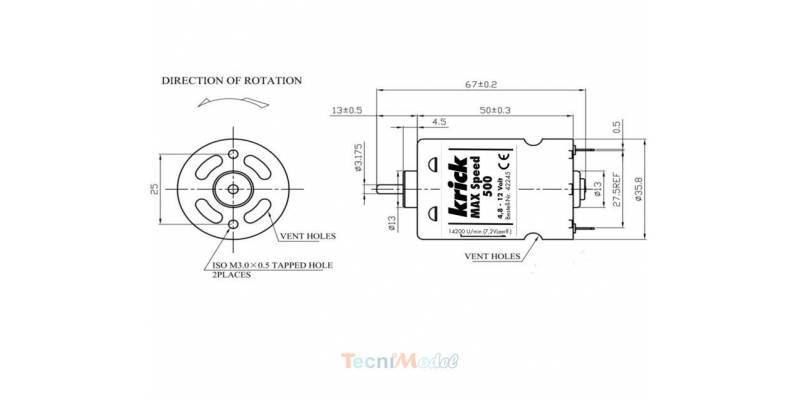

- Case dimensions: Ø36x50mm
- Weight: 160g
- Fixing screws: 2 x M3x8mm
