RC Farm Tractor 1/14 Fendt 1050 Vario 4x4 pre-painted kit by Lesu

Radio-controlled 1/14 Fendt 1050 Vario 4x4 Farm tractor assembly kit, already painted, by Lesu.

Lesu RD-A0018-KIT-SP

Highly detailed replica of a 1/14th scale RC farm tractor, a Fendt 1050 Vario. The vehicle is 90% metal, with an all-machined metal body.

Extremely technically advanced, it features a 4-wheel drive chassis with differential lock, independent double-wishbone front suspension, hydraulic steering with automatic return to neutral, hydraulically controlled front and rear hitch, rear PTO, and 5 auxiliary hydraulic channels for future accessories.

Its 2-speed transmission, coupled to a Hobbywing QuicRun Fusion brushless motor, and axles with epicyclic reduction gears give it exceptional driving power. The wheels can be fitted with optional twin wheels or weights.

Supplied with a sound and light system, it'll have nothing to envy its full-size counterpart.

Features of this radio-controlled farm tractor :

• 90% metal parts
• Highly detailed bodywork made entirely of CNC-machined metal
• 4-wheel drive chassis with remote differential lock
• Independent double-wishbone front suspension
• Hydraulic steering with automatic return to neutral
• 8 hydraulic spool valves with servos
• Brushless hydraulic pump
• Independent, hydraulically-controlled front and rear linkages
• Functional rear PTO
• 5 auxiliary hydraulic channels (4 rear, 1 forward)
• 2-speed transmission
• Hobbywing QuicRun Fusion brushless motor
• Axles with epicyclic reduction gears
• Sound and light system included
• 38 LED lights
• 2 Rotating beacons on swivel mounts
• Front lights with functional daytime running lights
• Functional opening doors
• Tread-marked rubber tires
• Already painted in Fendt colors

Features :

• Overall length: approx. 450-460mm depending on front and rear linkage position
• Width at wheels: 214mm
• Height (with lights): 283.3mm
• Wheelbase: 235mm
• Front wheels : Ø135.4x53.3mm
• Rear wheels: Ø163.9x77.4mm
• Hydraulic pressure: approx. 30 bar
• Minimum ground clearance: 36mm
• Weight: 8.2kg

Equipment to be purchased separately:

• Minimum 18-channel radio control system
• LiPo 3S 11.1V battery (91x44x29 recommended by Lesu)
• Hydraulic oil

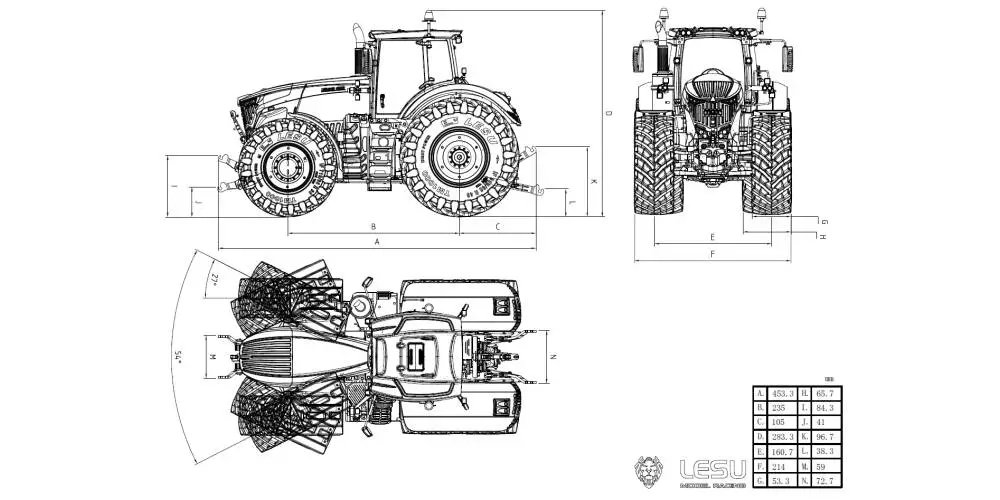

Dimensions :

Building instructions :

To download building instructions, click here (27Mo)
