FlySky Paladin PL18 EV Standard Edition 18 channels

PALADIN PL18 EV Standard Edition

Manufactured by FlySky

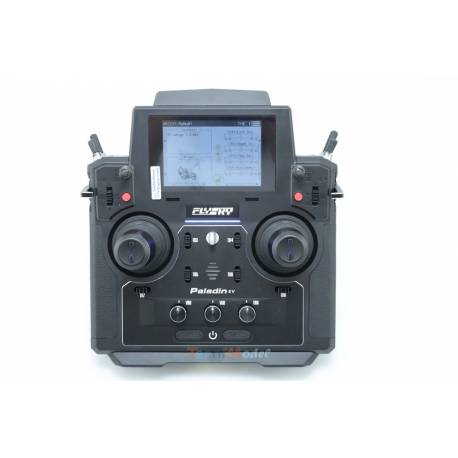

The PALADIN PL18EV is a new radio control model from FLYSKY, featuring a touchscreen and two "5D" gimbals, making it particularly suitable for piloting radio-controlled construction machinery models. This version comes with a 12-channel FGr12B receiver and a USB cable for battery charging.

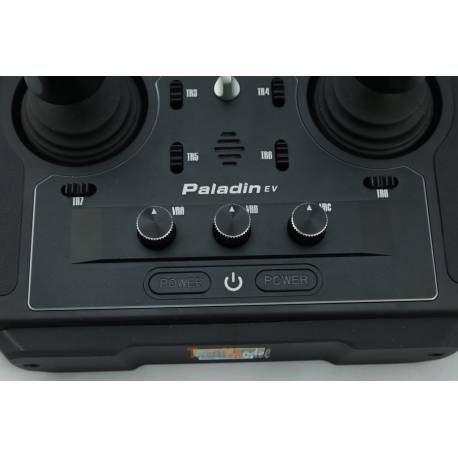

The radio control includes two "5D" gimbals, 2 proportional mini joysticks with neutral return, 3 potentiometers and 8 switches.

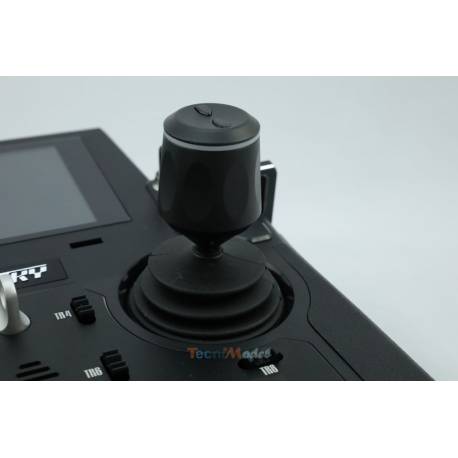

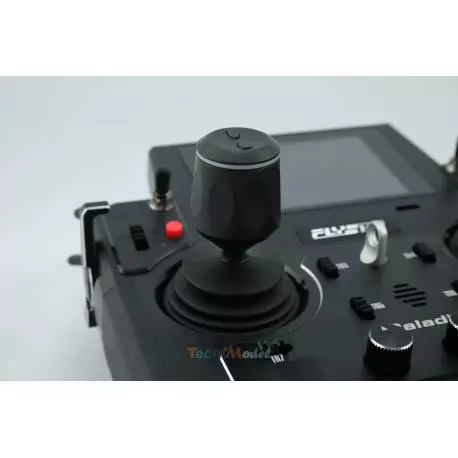

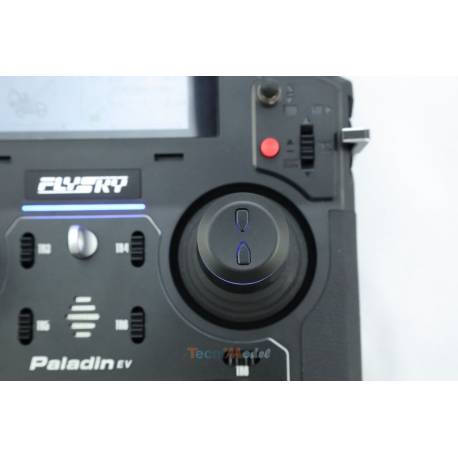

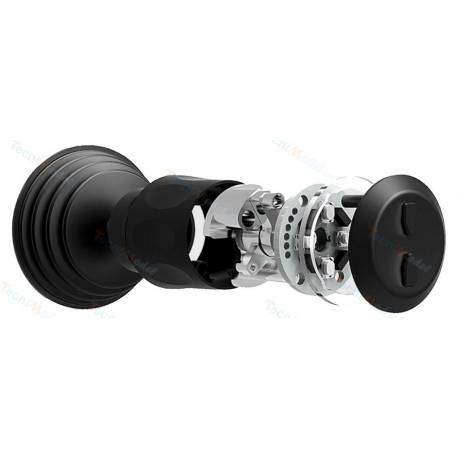

The "5D" handles, for each handle :

• 2 conventional channels (cross handle)
• 1 proportional channel on stick rotation
• 2 pushbuttons on the top of the stick

Switches are distributed as follows

• 1 impulse 2-position switch
• 3 impulse 3-position switches
• 1 2-position switch
• 1 3-position switch
• 2 pushbuttons

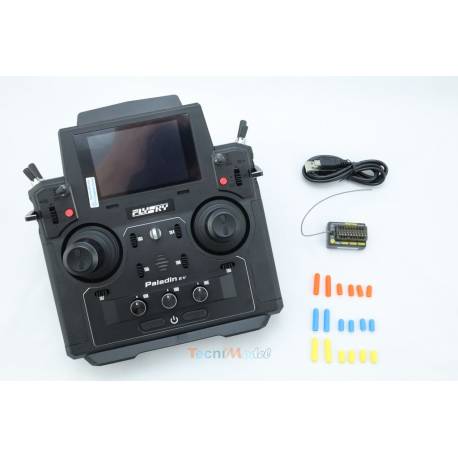

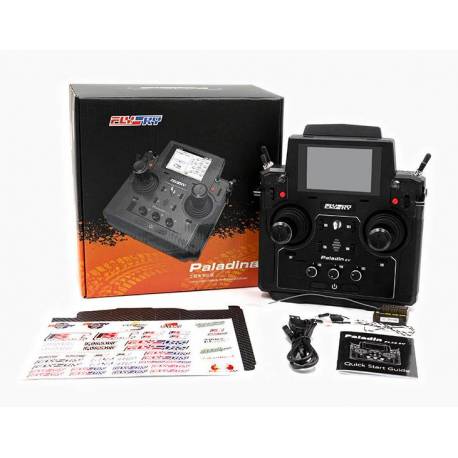

Contents :

• Paladin PL18EV FLYSKY 18-channel radio control system with built-in Lipo battery

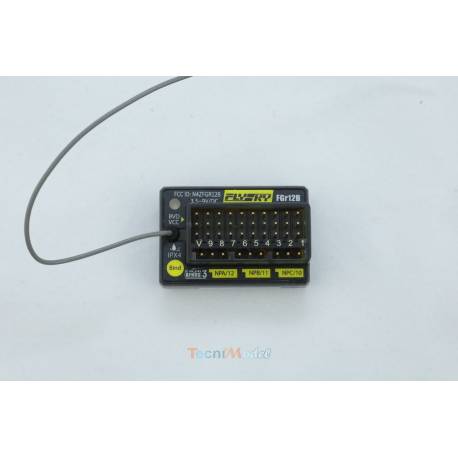

• 1 FGr12B 12-channel receiver
• USB cable (requires USB phone charger not included)

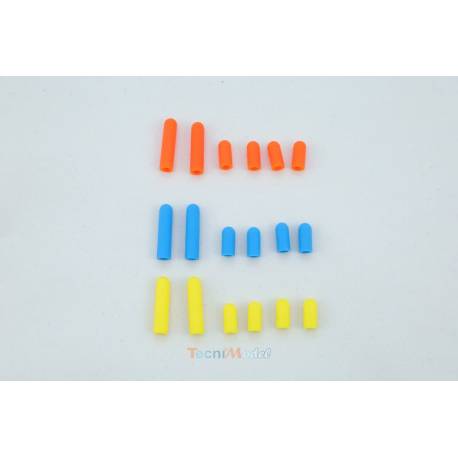

• Set of colored caps for switches
• Decorative sticker sheet
• Supplied in cardboard box with dense foam

Instructions in English only (see download)

Features :

• Aluminum handles on hall-effect potentiometers

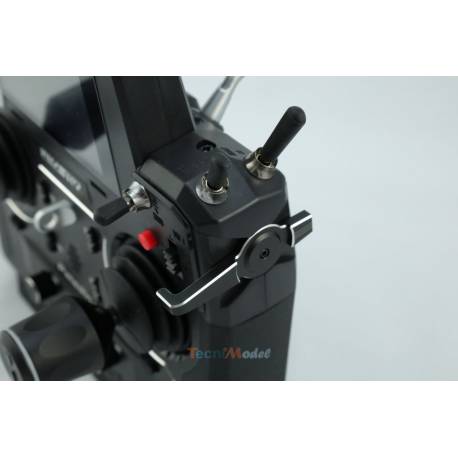

• Aluminium side handles with return to neutral, controllable from above or below
• Touch screen
• Number of channels: 18
• Model type: Construction machine model / Truck model / Military vehicle model / Special vehicle and ship model / Robot model
• Number of memories: 20
• RF: 2.4G
• RF power: <20dBm
• Protocol 2.4GHz : AFHDS3
• Range: >500M (ground range)
• Channel resolution: 4096
• Battery: 1S (3.7V) * 4300mAh (integrated)
• Charging interface: Micro USB / wireless charging
• Charging time: 4h@5V*2A / 7h@5V*2A (wireless charging)
• Operating time: >5h30
• Low voltage warning: <3.65V
• Antenna type: Dual antenna
• Display: HVGA 3.5" TFT, 320*480
• Language: Chinese and English
• Simulator: USB simulator

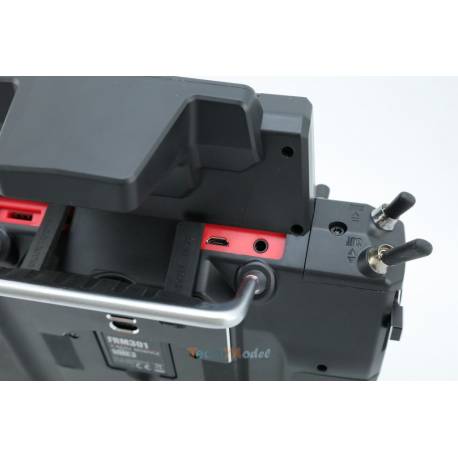

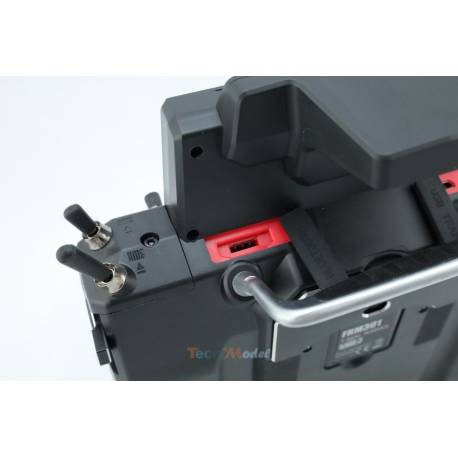

• Data interface : USB, non-standard interface (USART), PHJACK (PPM)
• Temperature range: -15°C to +60°C
• Humidity range: 20% - 95
• Online update: support
• Transmitter color: Black
• Dimensions (length x width x height): 214*120*196mm
• Body weight: 1012g
• CE certification, FCC ID: N4ZFT1800

Compatible receivers :

All FLYSKY receivers using the AFHDS3 protocol:

• FTr4 4-channel receiver
• 8-channel receiver FTr8B
• FTr12B 12-channel receiver
• 16-channel S.BUS receiver FTr16S
• 8-channel receiver FGr8B
• 12-channel receiver FGr12B
