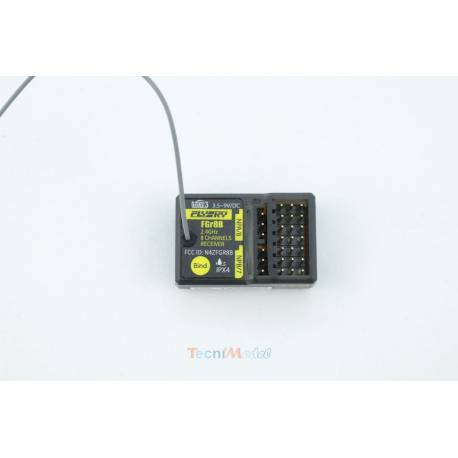

FLYSKY FGR8B AFHDS3 8-channel receiver

FGR8B 8-channel AFHDS3 receiver by FLYSKY

FLYSKY 8-channel 2.4Ghz AFHDS3 receiver.

Suitable for FLYSKY PALADIN radios, NOT suitable for FLYSKY FS-i6S radios.

Features:

• Product model : FGr8B
• Compatible transmitter: all FLYSKY transmitters supporting AFHDS3 (PL18, NB4, NB4 Lite, etc.)
• Model type: Land models, boats, etc.
• PWM channels: 8
• RF: 2.4GHz
• 2.4G protocol: AFHDS 3
• Antenna: Single antenna
• Supply voltage: 3.5-9V
• Data output : PWM / PPM/ i-bus in
• Temperature range: -10℃-+60℃
• Humidity limit: 20 % to 95
• Online update: Yes
• Dimensions: 35*23.3*13.3mm
• Weight : 9.4g
• Certification: CE，FCC ID:N4ZFGR8B
• Splash protection: IPX4

Pairing procedure.

• Press and hold the "BIND" button on the receiver while powering up the receiver, release the "BIND" button after powering up the receiver, the receiver LED flashes rapidly.
• Put the transmitter into bind mode.
• The binding process is complete when the receiver LED stops flashing and remains permanently lit.
• If a transmitter whose radio frequency (RF Standard) is set to "AFHDS3 1 way" (please refer to your transmitter's user manual) enters pairing mode, the receiver LED flashes slowly. Exit pairing mode on the transmitter, and if the receiver LED stops flashing and remains permanently lit, the pairing process is complete.
• Check that transmitter and receiver functions are working correctly, and repeat steps 1 to 3 (pairing process) if you encounter any problems.
