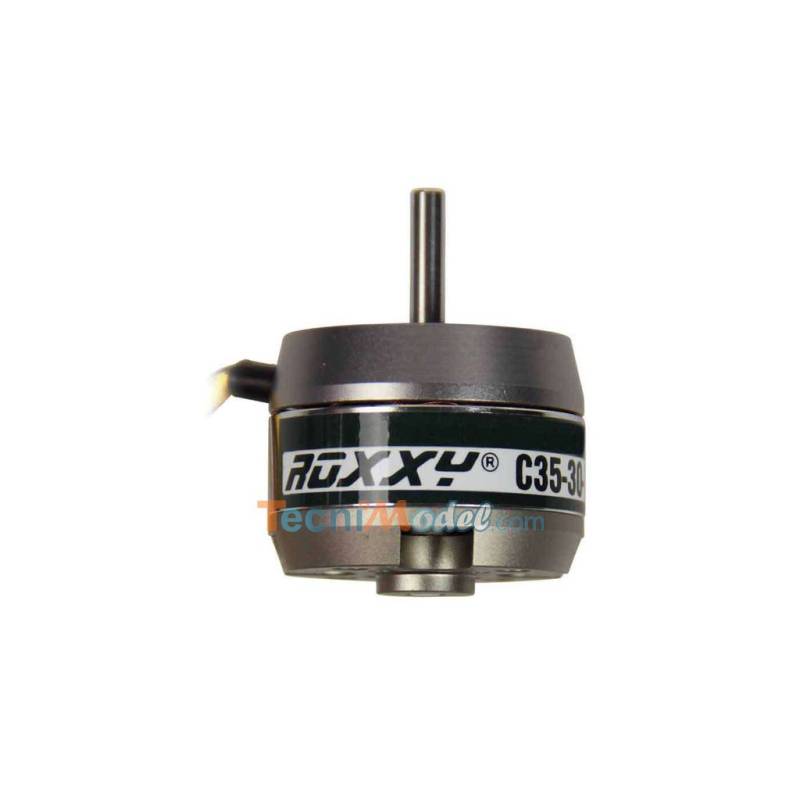

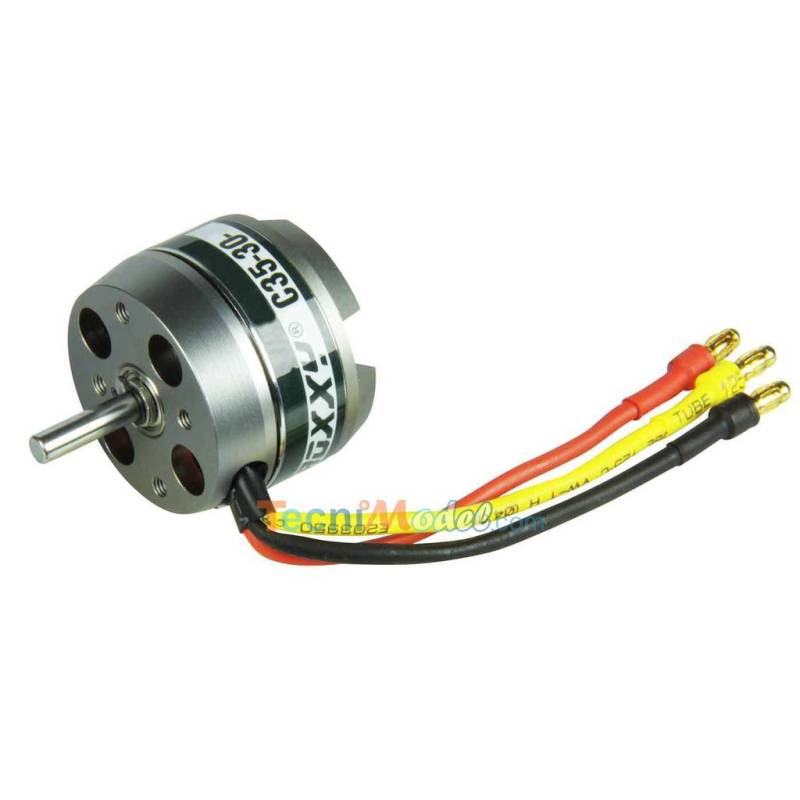

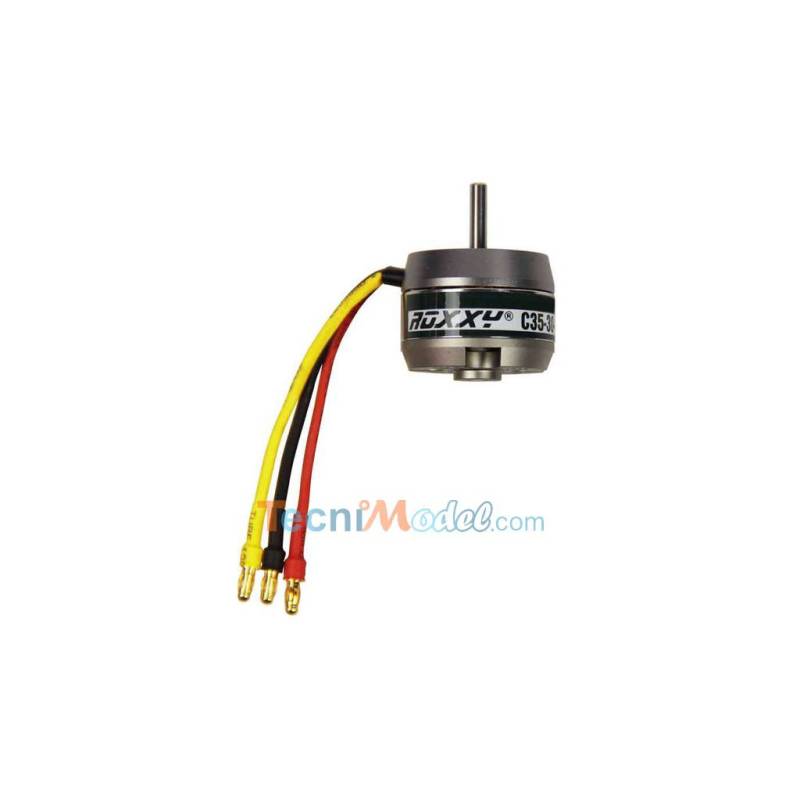

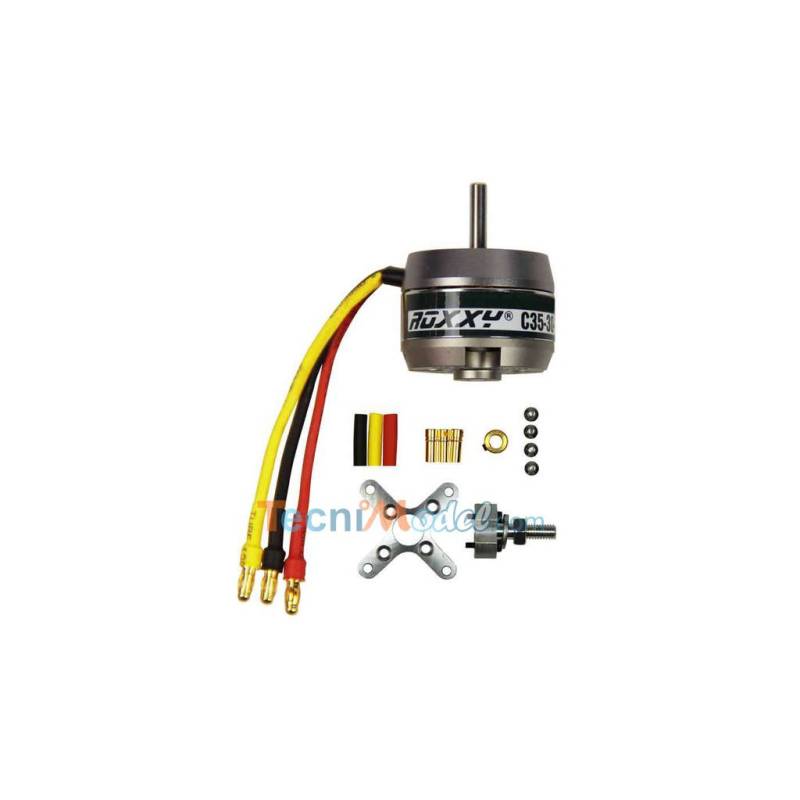

ROXXY Brushless Outrunner Motor C35-30-500kV NAVY
ROXXY Brushless Outrunner Motor C35-30-500kV NAVY.
Reference : MORO4989
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB09
Multiplex ROXXY Brushless Outrunner Motor C35-30-500kV NAVY.
Slow, torquey brushless motor for model boat propulsion.
Modern 14-pole ROXXY® brushless motor with external armature for model boats.
Due to its construction, this motor does not require a gearbox. It is a high-torque motor with high efficiency and a wide performance range, enabling it to drive large propellers.
Ideal for direct drive.
- High efficiency thanks to maximum copper filling and the use of high-quality neodymium magnets.
- Smooth rotation thanks to precision ball bearings.
Application:
Model boats up to approx. 6000 g
Replaces Mini-Navy Kompakt gearmotor
Example of use:
Voltage 12v - 40 mm three-blade propeller - power consumption 2.5A thrust: 650 g
Voltage 12v - 50 mm three-blade propeller - power consumption 5.5A thrust: 1250 g
Technical data :
- Speed (Kv): 500 rpm/V
- Voltage: 7 - 15 Volt (Lipo 2S to 4S)
- Current under load (5min/120°c): 10 A
- Max. current (60°c): 13A
- Power rating: 120W

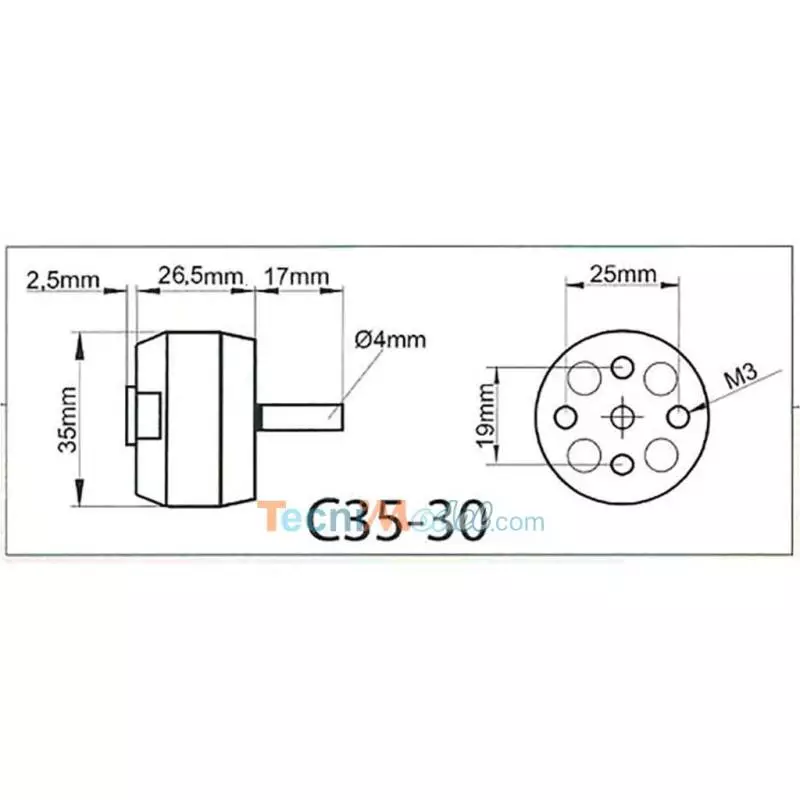

- Body diameter: 35mm
- Length: 29mm
- Shaft diameter: Ø4mm
- Total weight with cord/adapter: 75g
Recommended accessories:
| Shaft diameter | Ø4mm |
|---|---|
| Turns/Volt (KV) | 500 |
| Brushless type | OutRunner |
314989-de-en-en
Instruction manual ROXXY C35-30-27 Outrunner
