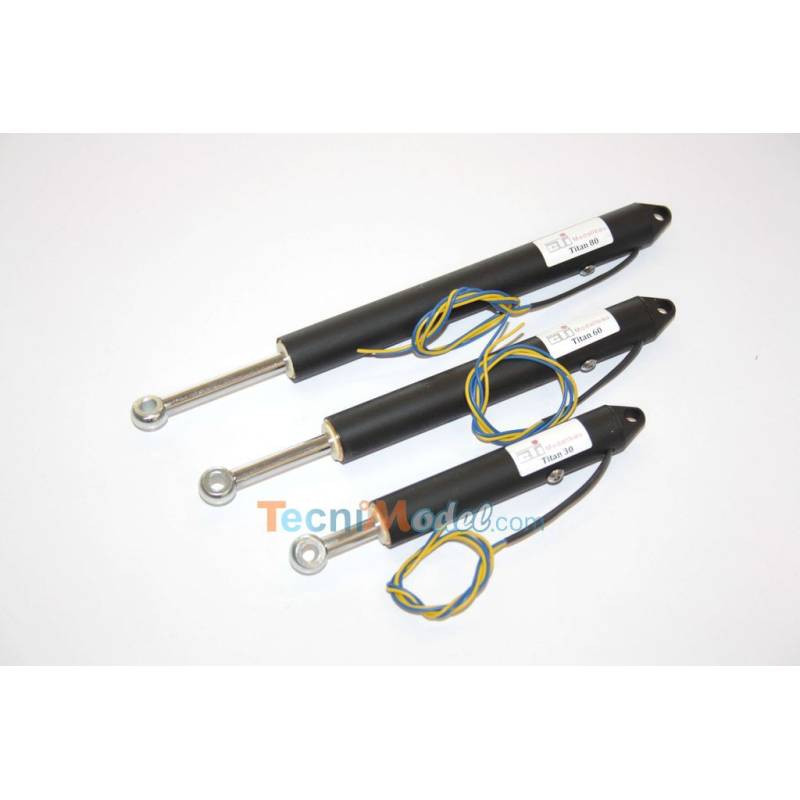

1 Titan 20 electric cylinder, 20mm stroke
1 Titan 20 electric cylinder, 20mm stroke, 6kg thrust, 12v power supply.
Reference : VECTI506020
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AE03
1 Titan 20 electric cylinder
Necessarily use a THOR control module "TITANRegler" for the operation of this cylinder.
The power supply of the cylinder is done by the THOR module "TITANRegler" (see "accessories")
Supply voltage:
Lipo Battery 3S (11.1v) or Nimh 10 elements (12v)
New design, more powerful, faster and quieter: no more locking of the cylinder at the end of the stroke.
Brass construction
Thrust: 6 kg
Speed: 1.5 cm/s
Size:
- Extended length (distance from anchor points) : 105 mm
- Retracted length (distance from anchor points) : 85 mm
- Stroke: 20mm
- Body diameter: Ø15mm
- Rod diameter: Ø6mm
- Diameters of anchor points: Ø5mm
- Weight: 60g
