ServoSteller MultiPoint (MP)

Control module for controlling 3 pre-programmed servo or ESC positions, or 2 pre-programmed positions and one proportionally variable position, from an external CTI PS4 switch module or a physical switch.

Function:

Control 3 different servo or ESC positions with just 2 negative switches.

No changes to the transmitter are required!

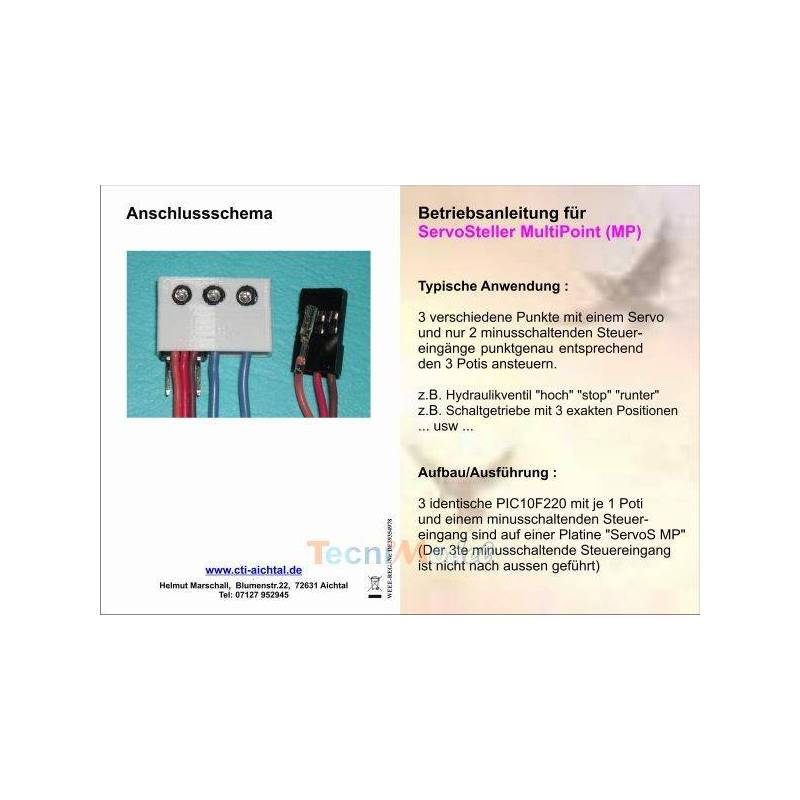

The module includes a servo lead and 2 blue wires. When the module is powered up and a blue wire is connected to the - of the battery (via a switching module such as CTI PS4* or Servonaut MM4/ML4/LA10 or a physical switch), the servo connected to the module moves to a previously defined position, set by the corresponding potentiometer.

Examples of possible applications:

• Hydraulic directional control valve: "open", "close", "reverse open"
• Gearbox with 3 positions
• Accessory function controlled by ESC: "up", "stop", "down"

The position is set by 3 separate potentiometers on the module. How to set :

• The right-hand potentiometer controls servo position when the right-hand blue wire is powered
• The middle potentiometer controls servo position when the left blue wire is powered
• Left potentiometer manages servo position when neither of the 2 wires is powered

Operating priority : The left potentiometer is the default position. The middle potentiometer overrides the left potentiometer, and the right potentiometer overrides both potentiometers.

If the module is plugged into the receiver, and the orange signal wire has been reinserted into the socket, then the module forces only 2 positions (those managed by the blue wires), and lets the PWM signal from the receiver pass through. Operation of the connected servo or ESC is therefore perfectly proportional.

This module may be of interest in the case of an autonomous trailer, where functions such as lifting the tipper or raising the ramps or landing legs are controlled by a wireless link from the truck, and you wish to activate the function via a physical switch on the trailer, without the truck being present.

The module is connected to the receiver via a servo socket.

The servo or ESC to be controlled is connected to the 3-pin socket located under the 3-wire cord going to the receiver.

Specifications:

• Supply voltage: 4.8V to 6V
• Module dimensions: 19x12x5mm

Modules whose cable to the receiver has been modified, or whose blue cables have been shortened to less than 6cm in length, are no longer covered by warranty.
