Goldhofer TU4 trailer ramp motorization system Carson

Ramp motorization system for trailer Goldhofer TU4 Carson 907400

Not suitable for the semi-trailer carrying machines Goldhofer 907060

For semi-trailer Goldhofer 907060 use the ramp system Reference PCPITRUALRAM

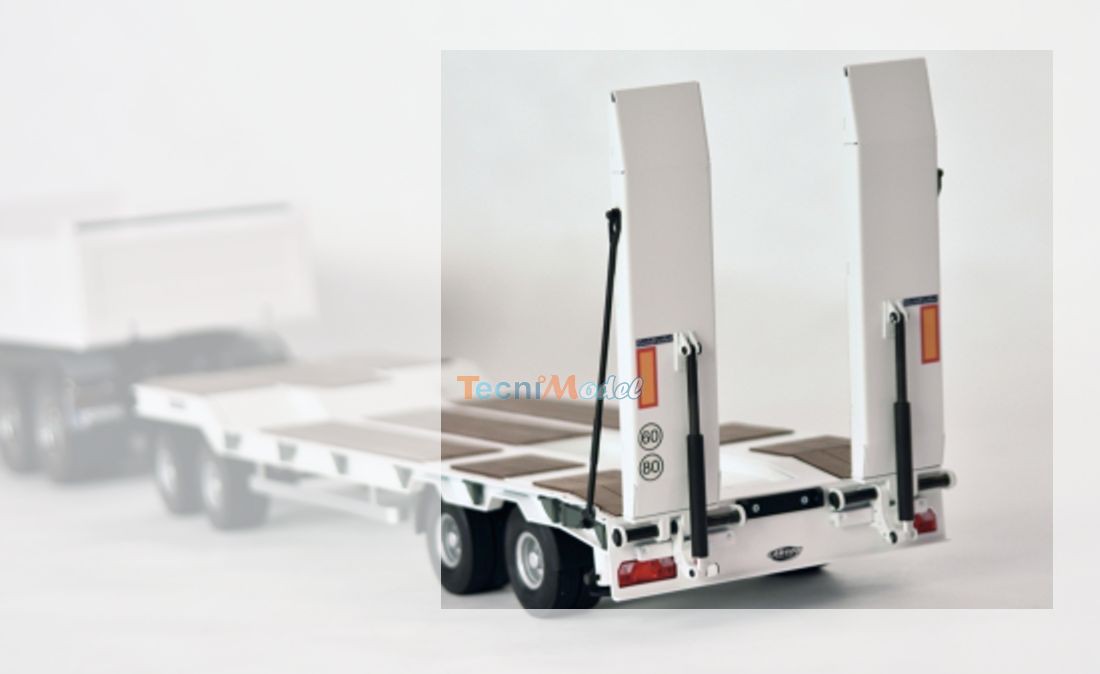

With this motorization system, the ramps of the Goldhofer TU4 trailer of Carson (ref 907400) can be motorized and controlled remotely!

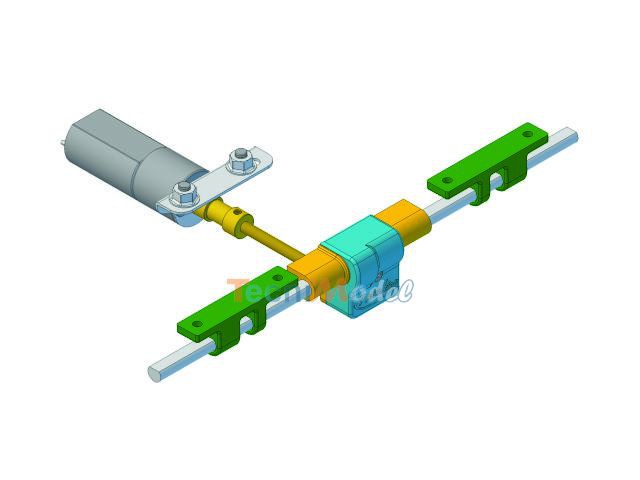

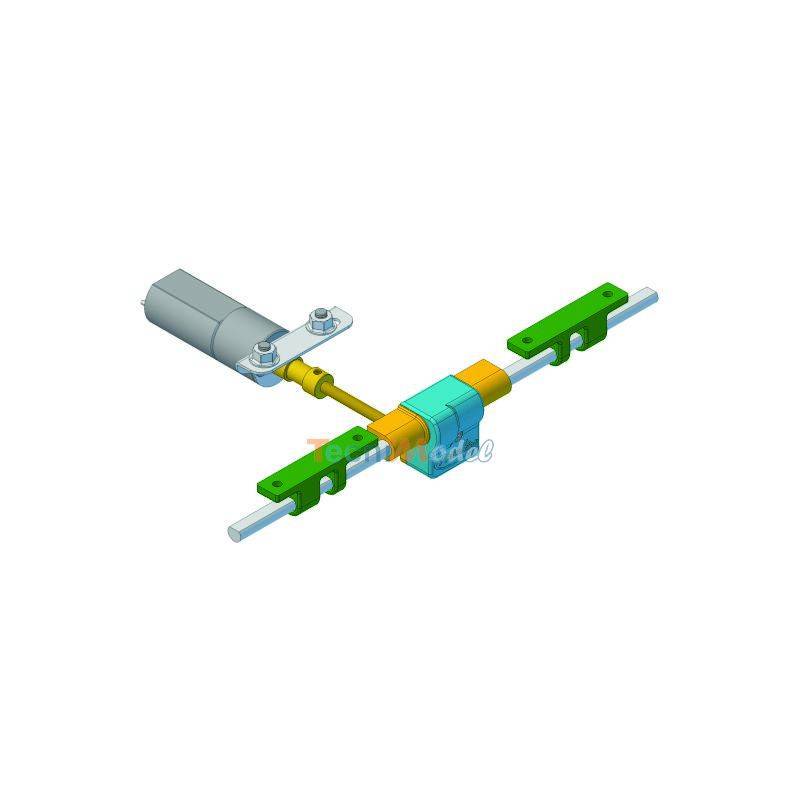

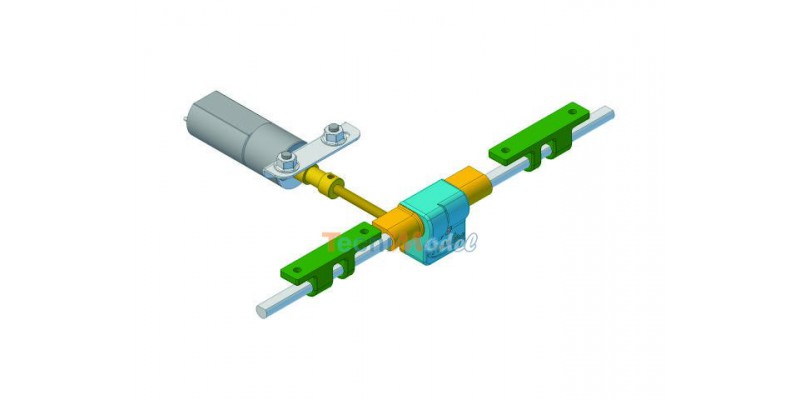

This control assembly is mounted on the trailer and controls the ramps with a geared motor. The high and low positions are secured by an end-of-stroke contact.
The end-of-stroke contacts are already wired. Only the engine cables need to be welded! A battery voltage of 6-8.4 V is provided to operate.

If a higher voltage is to be used (for example, 12V), you can use cruise control and use it with only 60% "travel" on the travel of the control track.

IRAM: the operation is also possible with the IRAM system of pistenking. There is no custom version for this. As the race ends are already set in this case, they do not have to be connected separately to the IRAM! This has the advantage that only the motor cable needs to be routed from the IRAM to the ramp reader.

Content of the delivery:

• geared motor with support
• Drive shaft
• worm gear (screw pre-mounted on the motor)
• End-of-stroke contacts, pre-assembled and wired
• New ramp support axis
• Side caps for shaft
• new ramp support, suitable to a new shaft (can be moved laterally!)
• Gearbox housing base plate (acting as a drilling model)
• Transmission enclosure coverage
• Instructions in French translated by TECNIMODEL
• screws, cables

Material not included (see "accessories"):

• Mini drive for motor control (suggestion: THOR14 Boost)
