Goldhofer ramp motorization system

pistenking TRU-AL-Ram

Attention this system is designed for the goldhofer semi-trailer Carson 500907060 (GOLDHOFER BAU STN-L3), but is not suitable for the goldhofer tu4 trailer Carson 500907400.

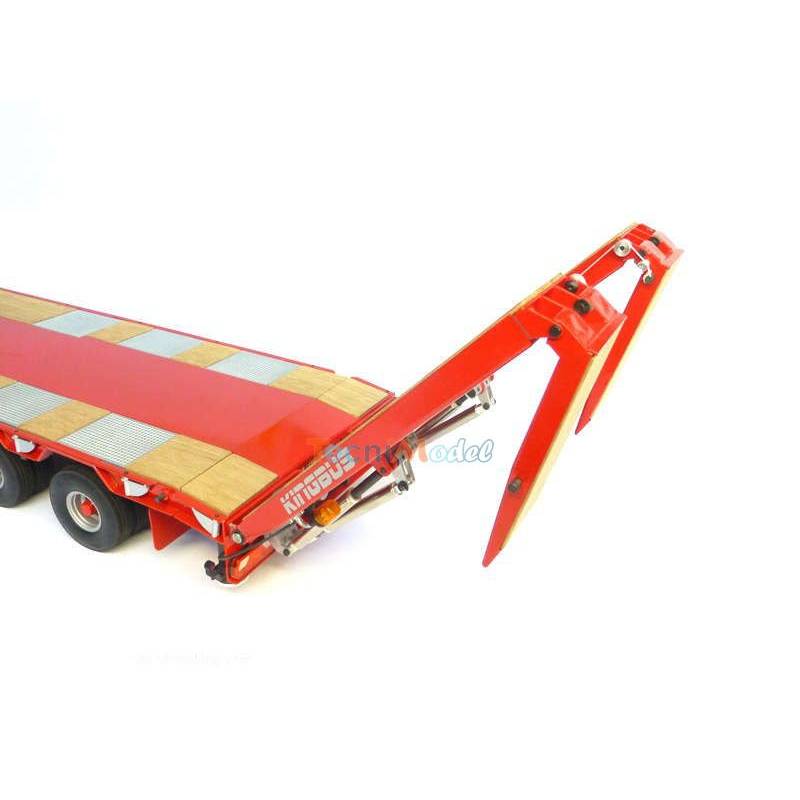

With this motorization system, the ramps of the Goldhofer trailer of Carson can be motorized and controlled remotely!

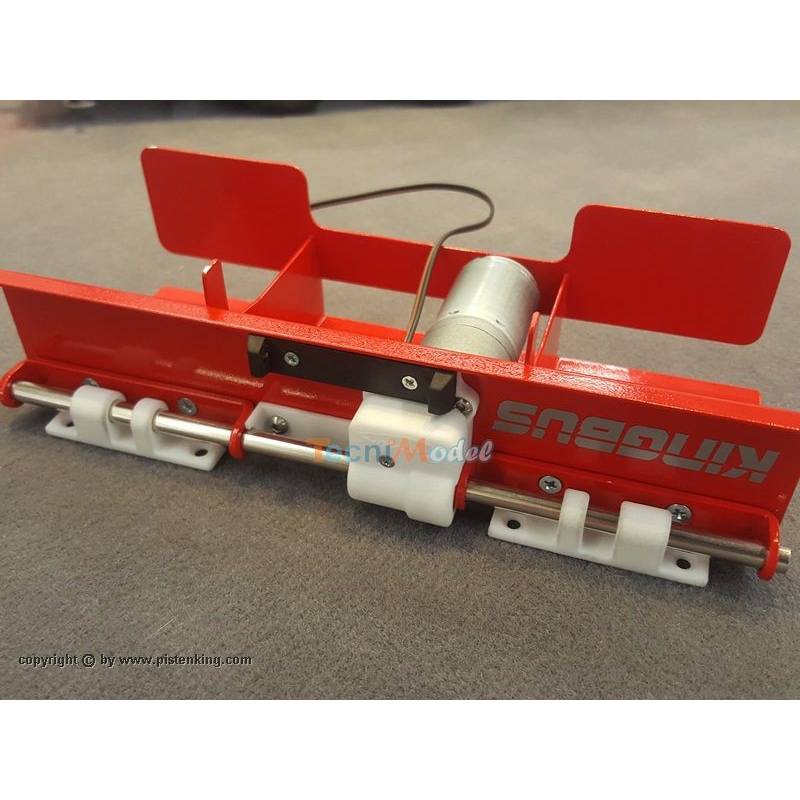

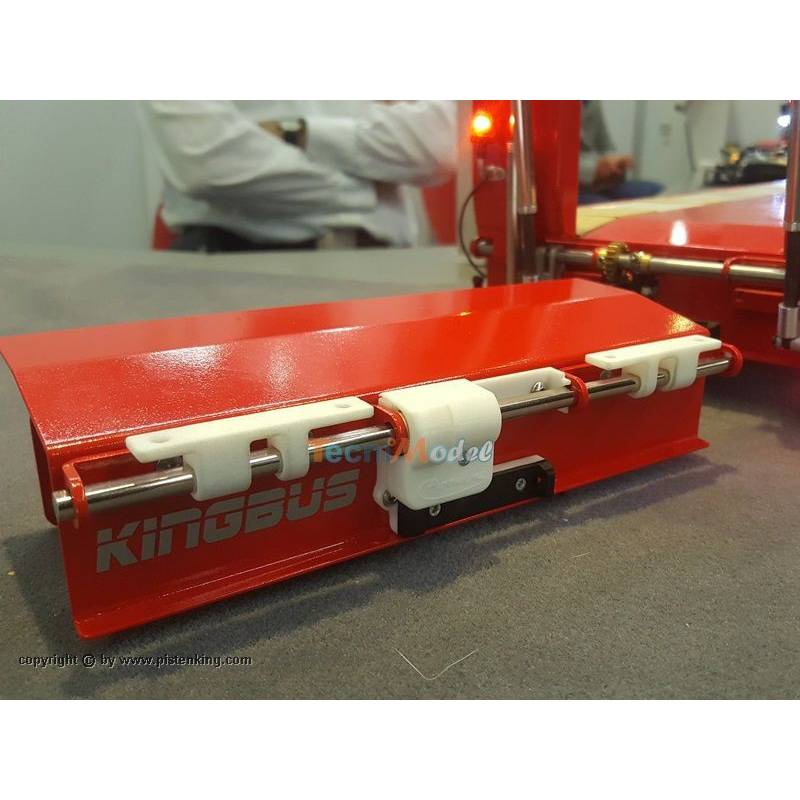

This control assembly is mounted on the trailer and controls the ramps with a geared motor. The high and low positions are secured by an end-of-stroke contact.
The end-of-stroke contacts are already wired. Only the engine cables need to be welded! A battery voltage of 6-8.4 V is provided to operate.

If a higher voltage is to be used (for example, 12V), you can use cruise control and use it with only 60% "travel" on the travel of the control track.

IRAM: the operation is also possible with the IRAM system of pistenking. There is no custom version for this. As the race ends are already set in this case, they do not have to be connected separately to the IRAM! This has the advantage that only the motor cable needs to be routed from the IRAM to the ramp reader.

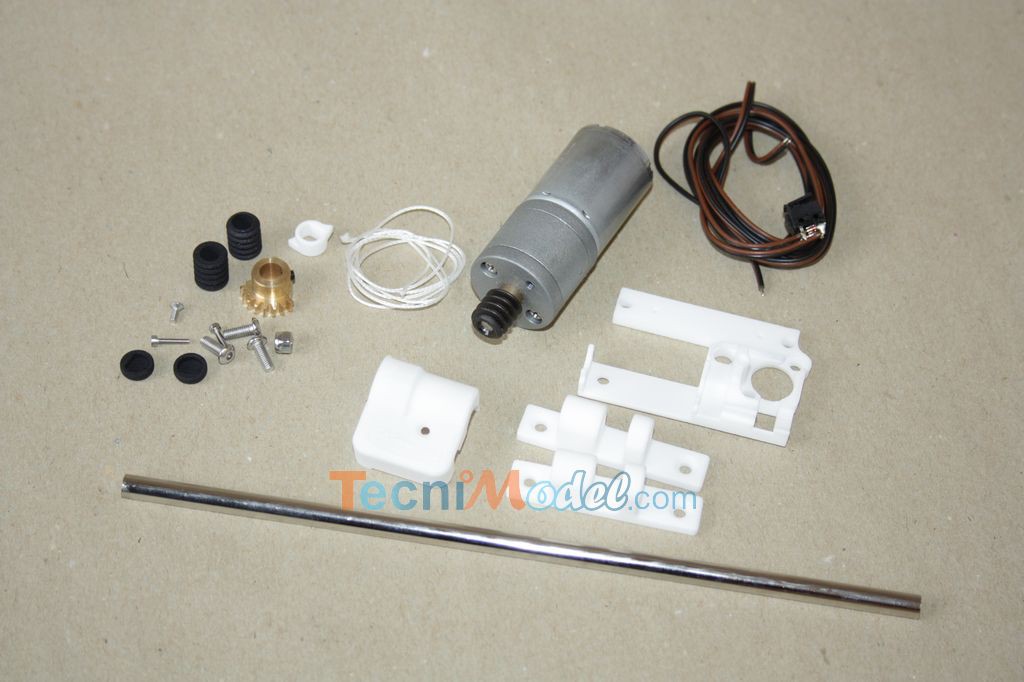

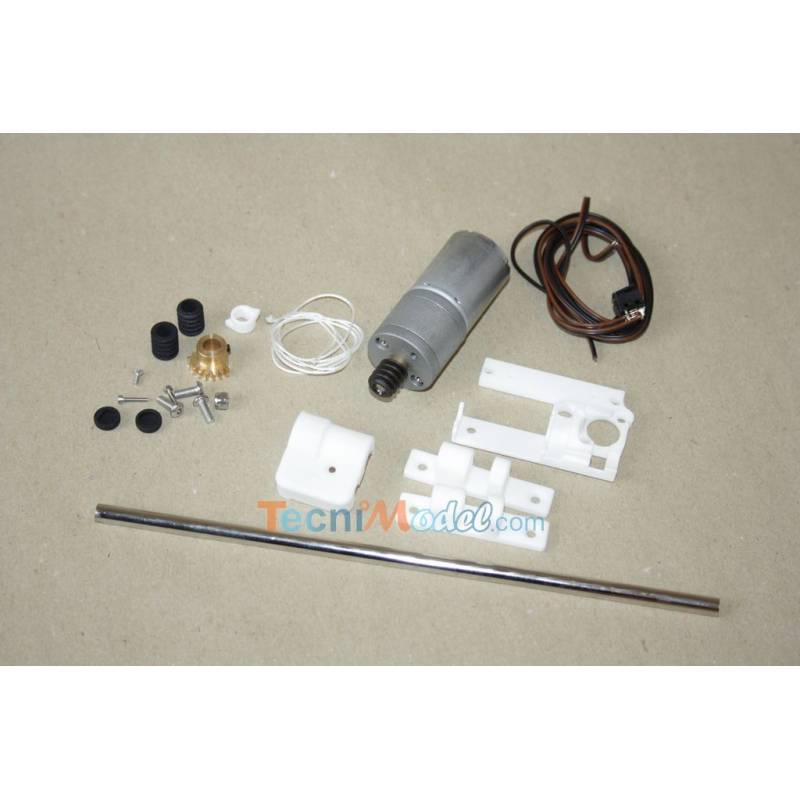

content of the delivery:

• motor with gears
• worm gear (screw pre-mounted on the motor)
• End-of-stroke contacts, pre-assembled and wired
• New ramp support axis
• Side caps for shaft
• new ramp support, suitable to a new shaft (can be moved laterally!)
• Gearbox housing base plate (acting as a drilling model)
• Transmission enclosure coverage
• Instructions in French translated by TECNIMODEL
• screws, cables
