Hydraulic assembly Leimbach for LR634 (With optimized cylinders)
Hydraulic assembly Leimbach for LR634
Version with optimized cylinders.
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
Hydraulic assembly Leimbach for LR634
Ref Leimbach 9815N
This version includes optimized and reinforced cylinders, for more powerful lifting and increased durability.
- Pump motor: Brushless
- Operating voltage: 7.4V (Lipo 2S)
- Current: 4.5 A
- Working pressure: 15 bar
- Lifting capacity: 2 kg
The kit includes the parts for the modification of the kinematics of the bucket control "Z" that allows its complete tilt even if the arm is not completely raised.
Follow the installation of the hydraulic system on the blog TECNIMODEL

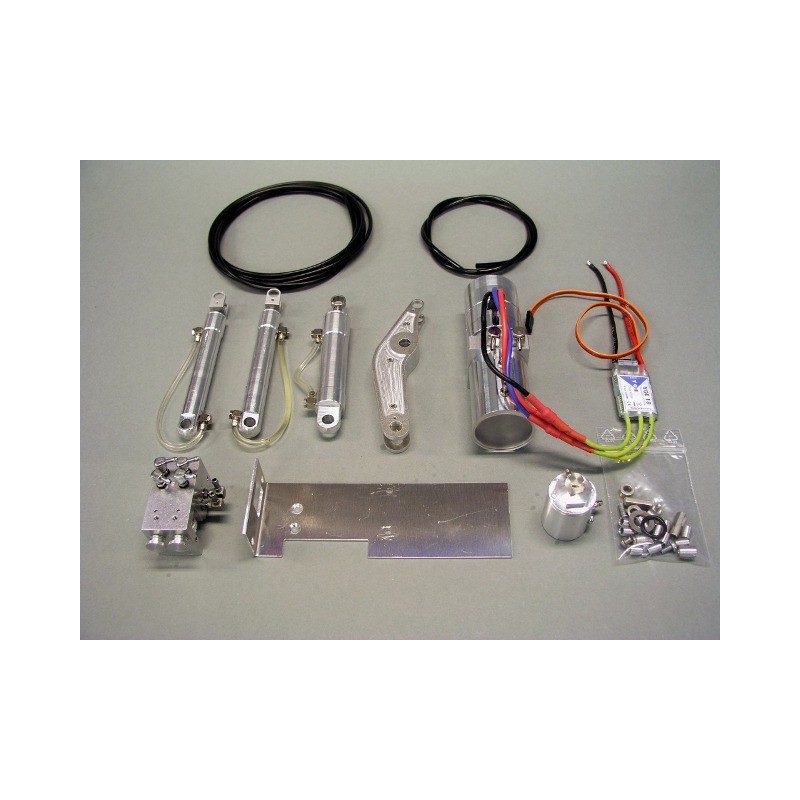

Contents of the kit (see photos)
- Hydraulic pump driven by a brushless motor
- Controller for brushless motor
- 2-way distributors
- Bucket motion kinematic piece
- 3 special optimized cylinders.
- Oil filter
- Hoses
- Fittings and clamping rings
- Comes without servos (requires 2 S3107 servos Futaba)
