Sail Servo 14.2Kg.cm / 6v 6 turns KingMax SW6114MD
Sail Servo 14.2Kg.cm / 6v 6 turns KingMax
Reference : RAKM6114MD
100% Secure CB Payment
100% secure CB payment. Payments in 2x, 3x or 4x.
Fast deliveries
Shipment within 24 hours (in working days)
AB12

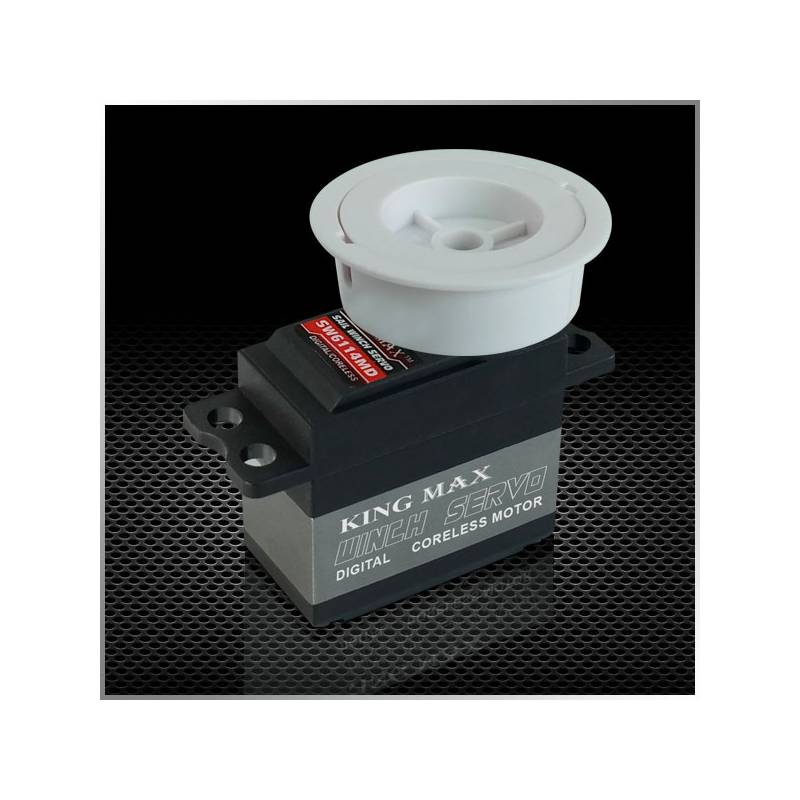

Sail Servo 14.2Kg.cm / 6v 6 turns
KingMax SW6114MD
Powerful, fast sail winch servo with the dimensions of a standard servo, with metal gears and a drum protected by a casing.
Features:
- Metal gear
- Stroke: 6 turns max
- Drum diameter: 24.5mm (mainsheet length per turn: 77mm)
- Operating voltage: 4.8v - 6v
- Torque
- 12.3 Kg.cm at 4.8 V
- 14.5 Kg.cm at 6 V
- Speed
- 0.72s / 360 ° in 4.8 V
- 0.6s / 360 ° in 6V
- Power consumption
- No load: 0.12 a 0.14 A
- Operating: 0.4 to 0.5 A
- At stall: 1.8 a 2.2 A

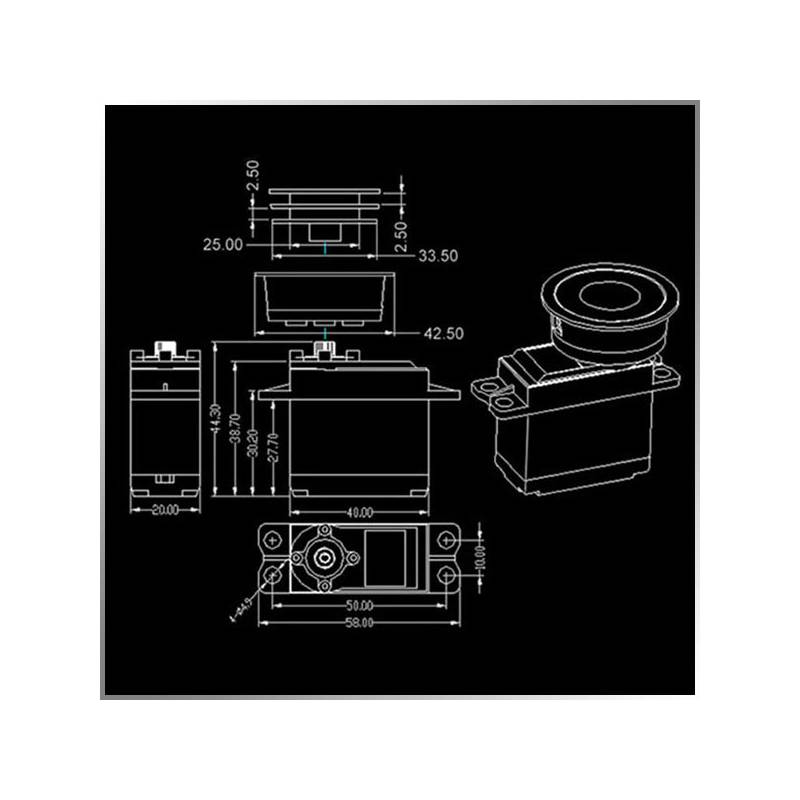

Housing dimensions:
- Length: 40.5mm
- Width: 20.2m
- Height: 38mm
- Weight: 61g
| Voltage (V) | 4.8v 6.0v |
|---|---|
| Turn | 6 |
| Torque (Kg.cm) | 12.3Kg.cm(4.8v) 14.5Kg.cm(6v) |
