UAL Servonaut

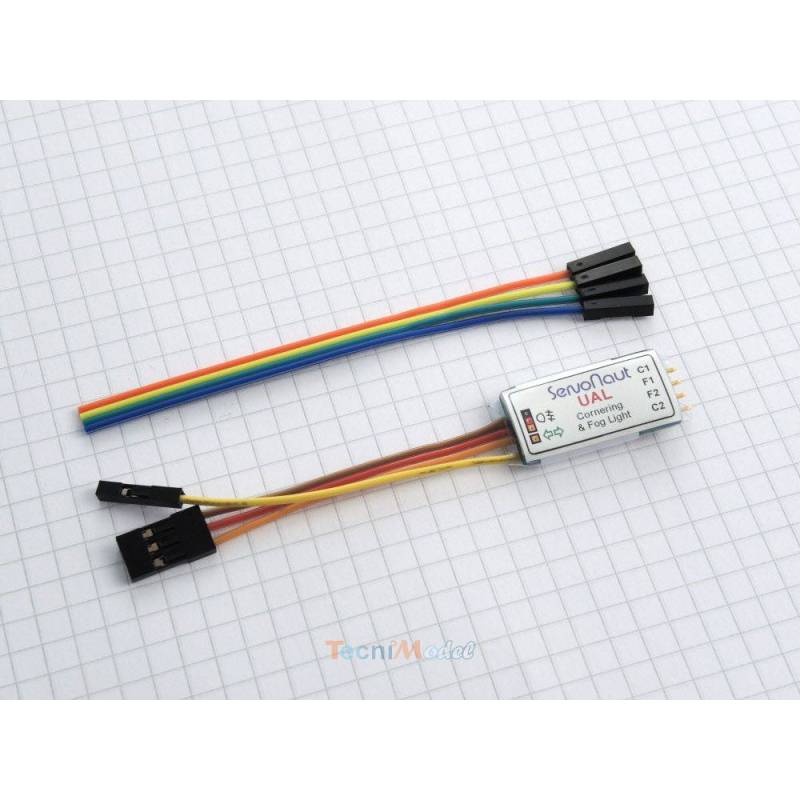

The mini UAL light module has been developed for small models.

It provides 4 outputs whose current is regulated to 20mA, for the control without resistance of fog functions and cornering lights.

Terminals C1 and C2 are intended for cornering lights, and are driven by the control column of the vehicle's steering.

Comes with a set of cables.

This module is independent, but complementary to the ul4, um4 and S10 Servonaut , which offer lighting functions that do not require resistors.

Available outputs:

• Right cornering lamp (C1)
• Front fog lamps (F1)
• Rear fog lamps (F2)
• Left turn light (C2)

Characteristics:

• Operating voltage: 5v to 12v
• Receiver voltage: 4.8 to 6v
• Features:
  • Cornering lights
  • Front fog lamps
  • Rear fog lamps
• 4 outputs of 20 mA each
• Proportional or inter 3-position control
• Receiver connection type: standard plug type JR
• For positive impulse systems
• Pulse type: 1 to 2ms from 40 to 60 Hz
• Temperature range: 0 to 40 °c
• Dimensions: 35x17x8mm
• Connector to receiver: UNI (universal) type / Graupner / JR

This series of modules is not designed for the use of LED turntables. If you want to use turntables, prefer the full LIGHT SOURCE MODULE LA10 instead.
