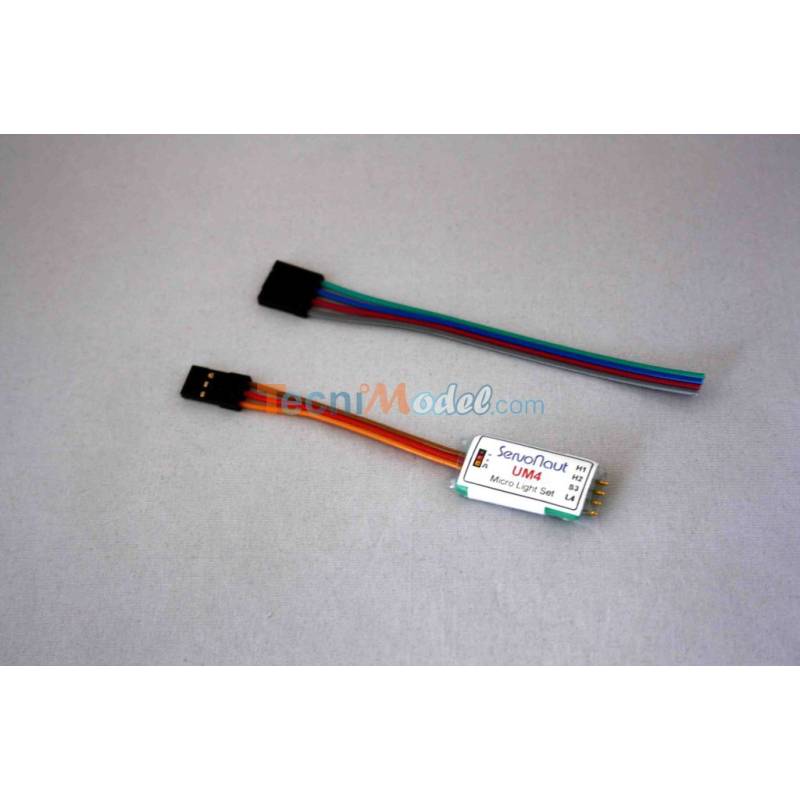

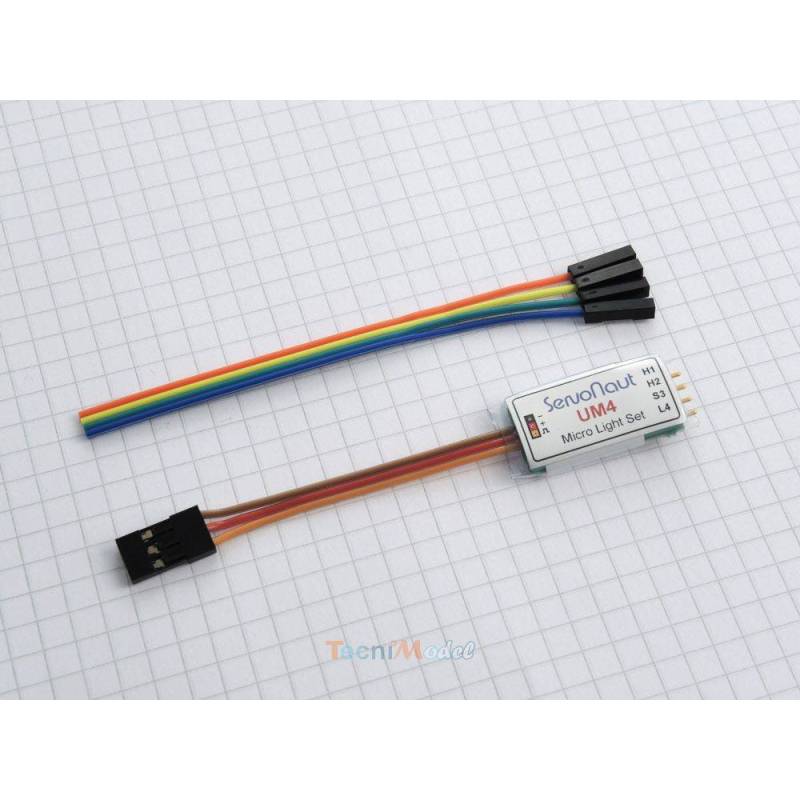

The UM4 mini light module was developed for small models.

It provides 4 outputs whose current is regulated to 20mA, for the control without resistors of lighting functions (headlights / spotlights / flashing lights ...).

Terminals H1 and H2 are intended for long-range lights, and include a headlight call function.

Comes with a set of cables.

This module is independent, but complementary to the UAL, UL4 and S10 Servonaut , which offer lighting functions that do not require resistors.

Available outputs:

• Long-range lights (H1 and H2) with headlight call function
• Fire 1
• Fire 2

The module also allows you to have the warnings. The light outputs 1 and 2 allow to control two sets of different lights at the choice of the installer (for example night lights and codes, or codes and headlights).

Characteristics:

• Operating voltage: 5v to 12v
• Receiver voltage: 4.8 to 6v
• Features:
  • Long-range lamps (H1 and H2)
  • Fire 1
  • Fire 2
• 4 outputs of 20 mA each
• Proportional or inter 3-position control
• Receiver connection type: standard plug type JR
• For positive impulse systems
• Pulse type: 1 to 2ms from 40 to 60 Hz
• Temperature range: 0 to 40 °c
• Dimensions: 35x17x8mm
• Connector to receiver: UNI (universal) type / Graupner / JR

This series of modules is not designed for the use of LED turntables. If you want to use turntables, prefer the MM4 light source module instead.
