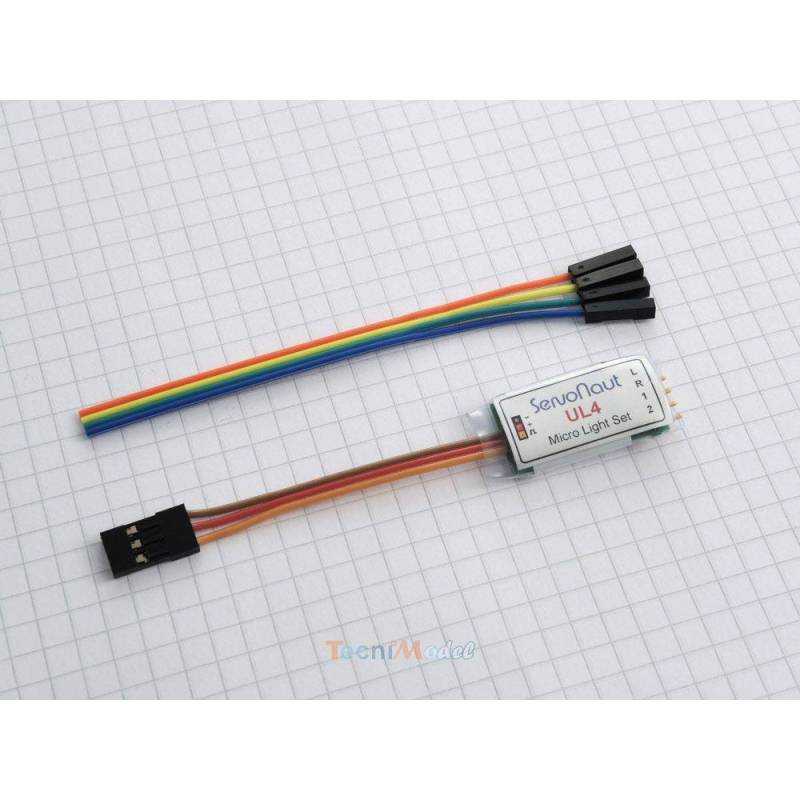

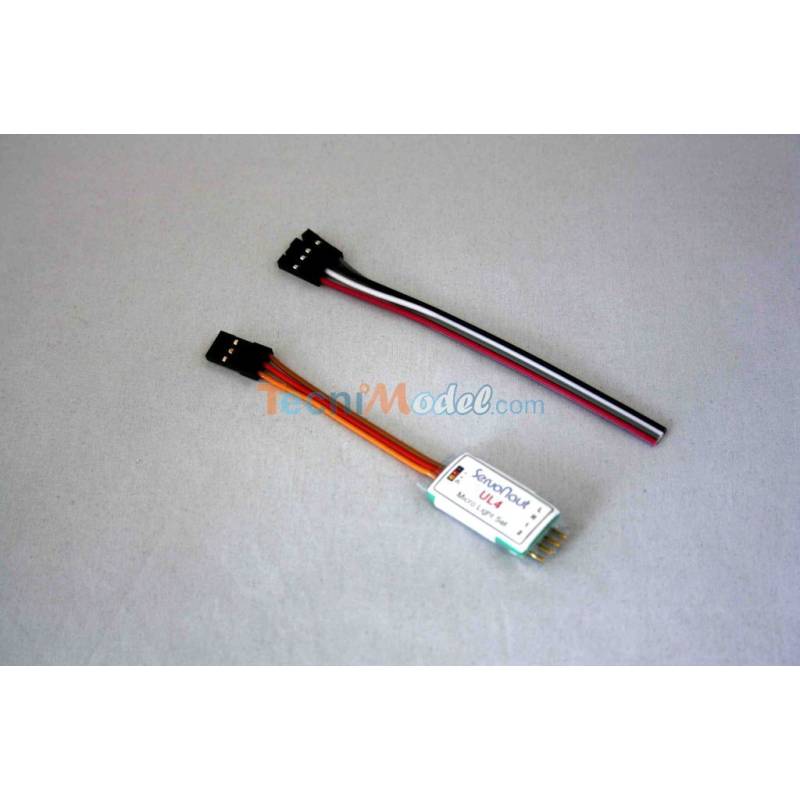

The ul4 mini light module was developed for small models.

It provides 4 outputs whose current is regulated to 20mA, for the control without resistance of turn signals, hazard lights, position lights and high beams.

It is the ideal module for simple wiring in addition to the small Servonaut S10 drive, which already includes stop lamps and reversing lights.

The turn signals are controlled manually (are not coupled to the steering) which allows a more realistic operation.

Comes with a set of cables.

This module is independent, but complementary to the Servonaut UAL, UM4 and S10, which offer lighting functions that do not require resistors.

Available outputs:

• Left turn signal (L)
• Clockwise turn signal (R)
• Fire 1
• Fire 2

The module also allows you to have the warnings. The light outputs 1 and 2 allow to control two sets of different lights at the choice of the installer (for example night lights and codes, or codes and headlights).

Characteristics:

• Operating voltage: 5v to 12v
• Receiver voltage: 4.8 to 6v
• Features:
  • Flashing lights and hazard warning lights
  • Position (side) lamps
  • Dipped-beam headlamps
• 4 outputs of 20 mA each
• Proportional or inter 3-position control
• Receiver connection type: standard plug type JR
• For positive impulse systems
• Pulse type: 1 to 2ms from 40 to 60 Hz
• Temperature range: 0 to 40 °c

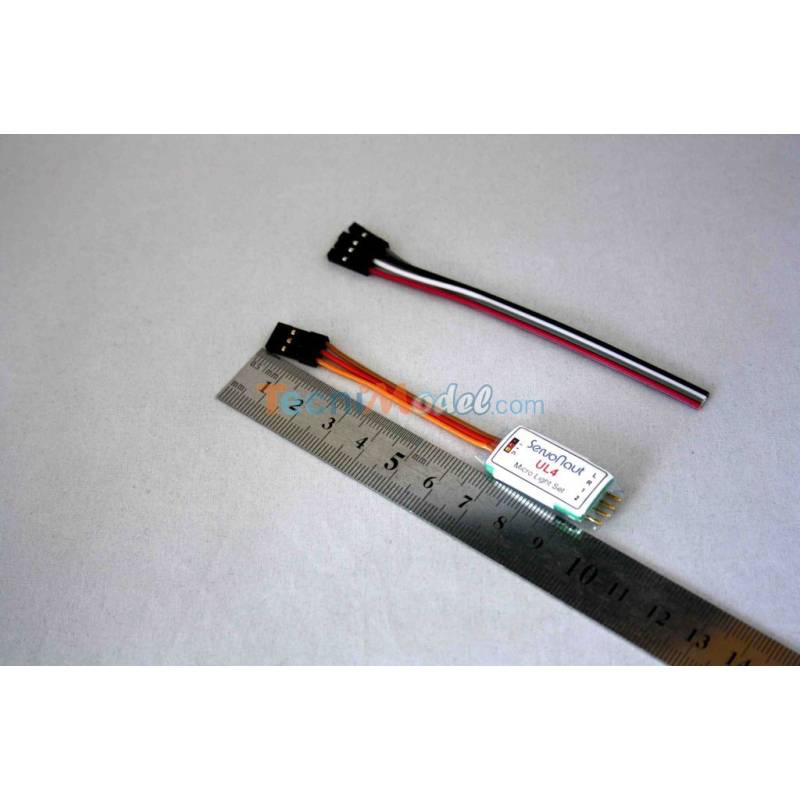

• Dimensions: 35x17x8mm
• Connector to receiver: UNI (universal) type / Graupner / JR

This series of modules is not designed for the use of LED turntables. If you want to use turntables, prefer the ML4 light source module instead.
