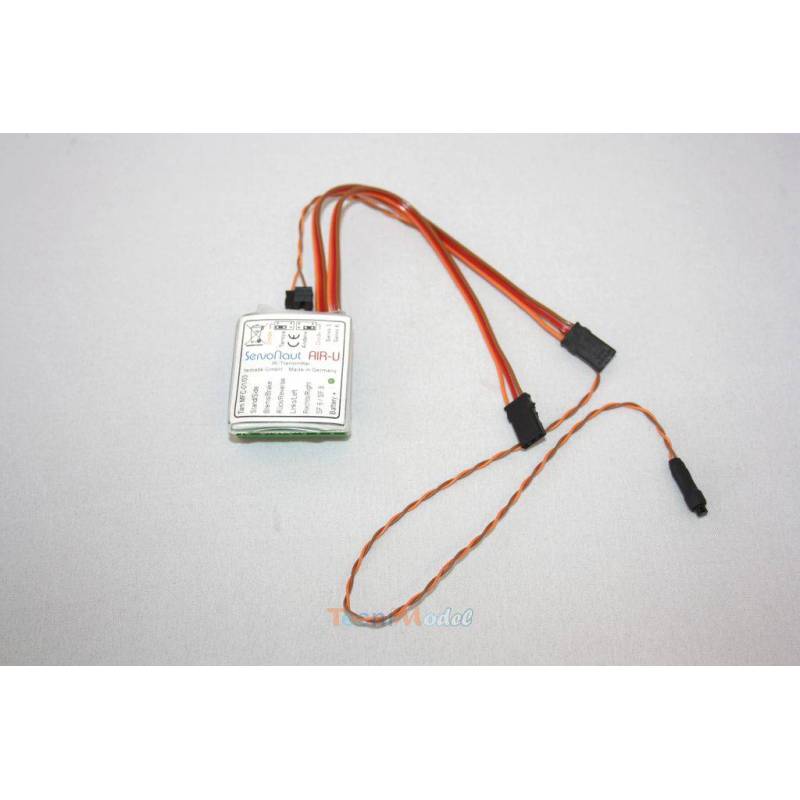

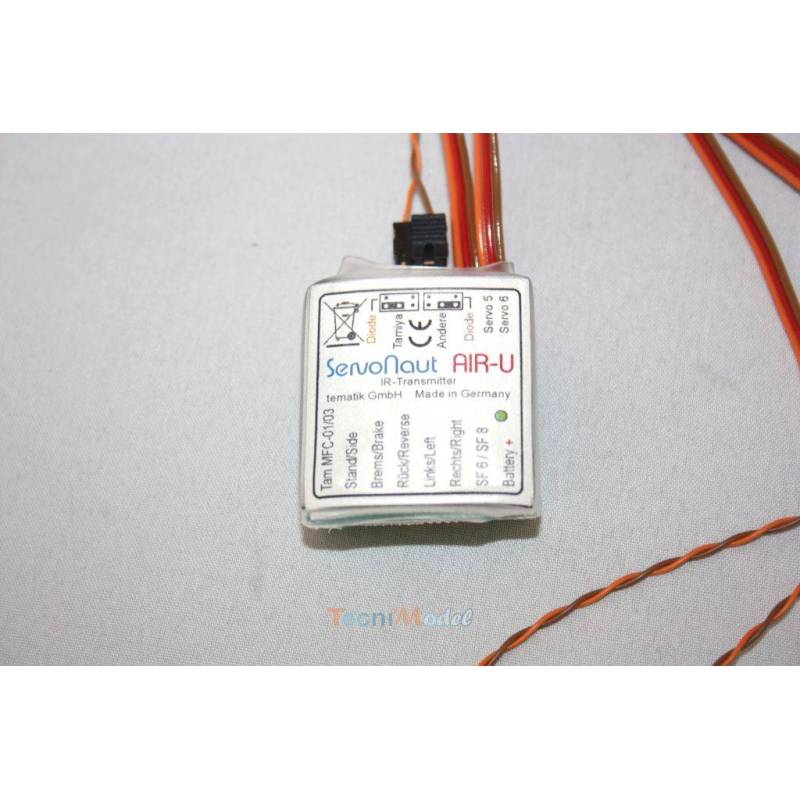

AIRU infrared transmitter Servonaut
Infrared transmitter for wireless remote control of a trailer in connection with the AMO receiver Servonaut.
Designed for use with Servonaut modules such as S20, E20 or M212T and M220 or systems of other brands such as the "MFU" Tamiya.
Note: With an M20+drive, use the AIR4 infrared module instead of this module.
Notice and wiring diagram in French (translation made by TECNIMODEL).
Transmission of 6 all-or-nothing functions
Transmission of 2 proportional functions
Connection system: UNI
Operating voltage: receiver 4.8 - 6V inputs: 7.2 -12V
Operating temperature: 0 ... 40°C
Dimensions: approx. 40x32x15 mm
Schema_AMO+AIRU
Schematic diagram of the infrared system
