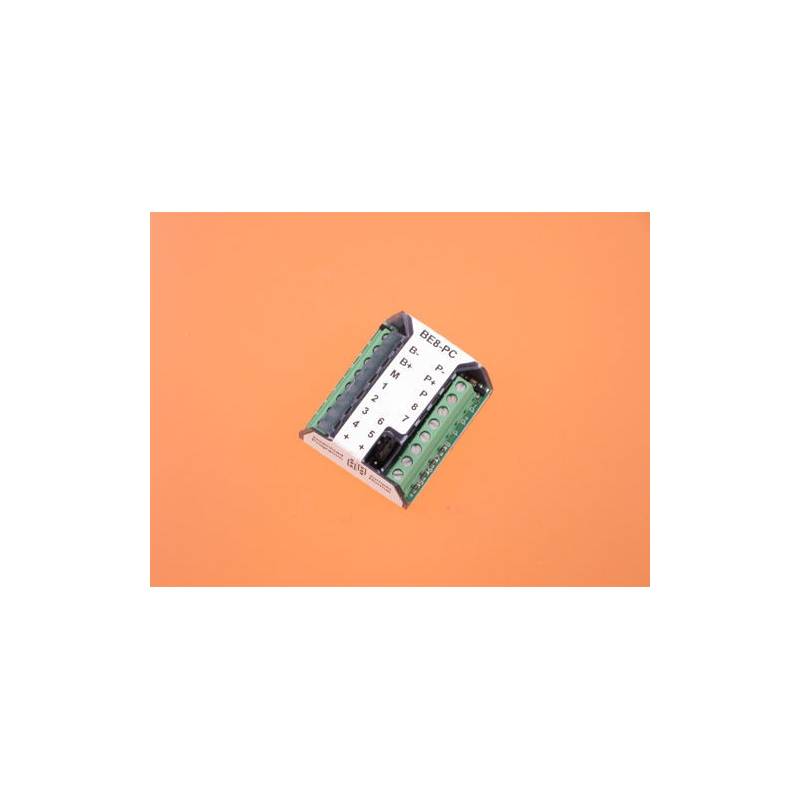

BE8-PC light effects module

Servonaut BE8-PC

The BE8-PC is a computer programmable light effects module using dedicated software provided. It can memorize and play on demand four different light sequences. It is possible to connect 8 bulbs or LEDs with their appropriate resistors.

The module produces 16 levels of light to produce a smooth transition effect and a great visual effect.

It works as a multiswitch module, with long or short pulses on the radio control channel.

Connecting to the computer:

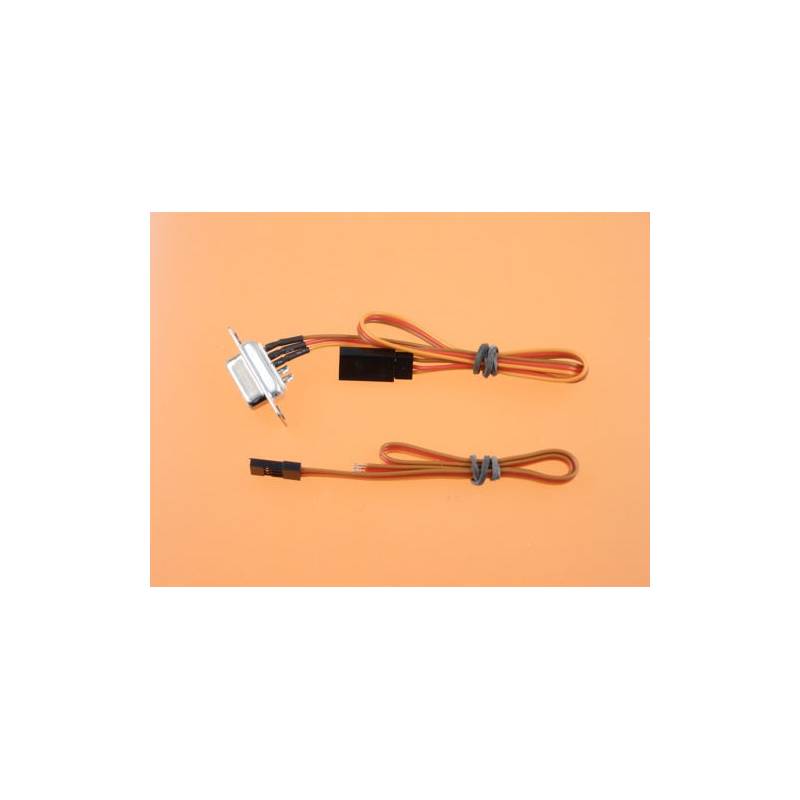

The connection to the computer is via a serial port. For computers without a serial port, it is necessary to use the adapter cord for USB port (available separately see "accessories" on this page)

Features:

4 different light effects freely programmable

Switchable with a radio controller channel or a control module (multiswitch, MM4, CTI, etc ...) or by simple switch

Voltage: 6 ... 12V NC/NiMH 2s ... 3s Li-Ion/Lipo

Intensity: Max 700 mA per output, 2 A in total

Dimensions: 42x36x18mm

Notices in French.

Downloading the program
