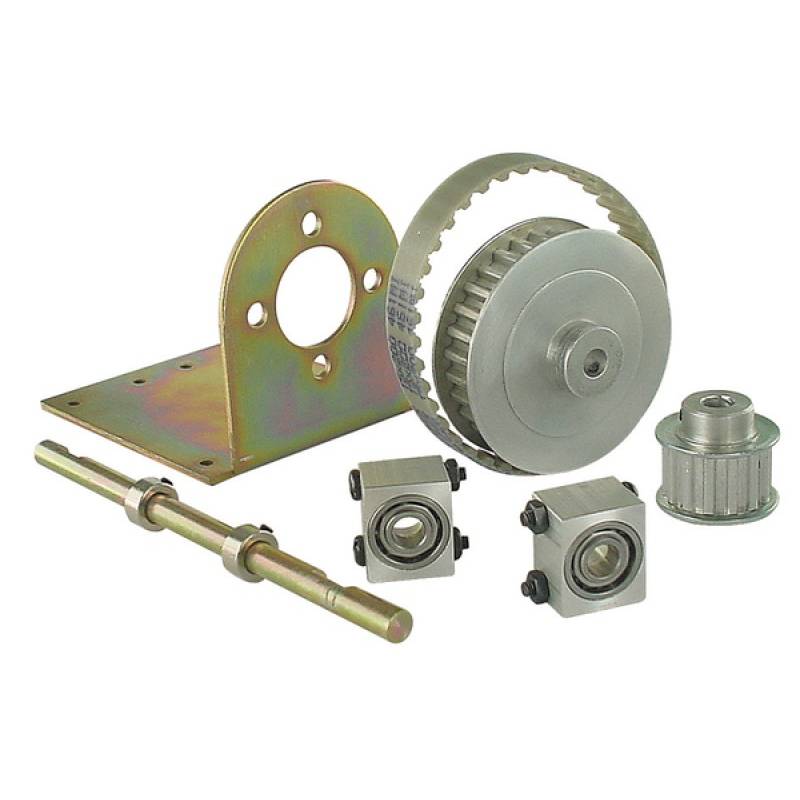

RE850 2.2:1 engine and gearbox
Ref MFA 965D2.11
Engine has powerful gearbox for the motorization of large models of boats.
Engine type MFA RE850
Reduction per notched belt ratio 2.2/1
Shaft on ball bearing.
Together to mount.
Full features: see attached doc (download tab above)
Weight: 745 g
Reduction 2.2/1 by pulleys and notched belt 9.8mm wide (no 5mm)
Pulley with 30 teeth and 14 teeth
Output shaft diameter: Ø6mm
Features of the engine:
| No load | Loaded at maximum efficiency | ||||||||
| Tension | Speed (rpm) | Conso (A) | Speed (rpm) | Conso (A) | Torque nM/m | Power | Yield | Blocking torque (nM/m) | |
| 12.0v | 12.0v CONSTANT | 9778 | 1.90 | 8311 | 10.82 | 92.13 | 80.16 | 61.74 | 614 |
Speed of rotation at the output of the gearbox (approx.):
- a empty: 4400 rpm
- Loaded: 3700 rpm
Traffic congestion:
Length: 115mm
Width: 62mm
Height: 95mm
