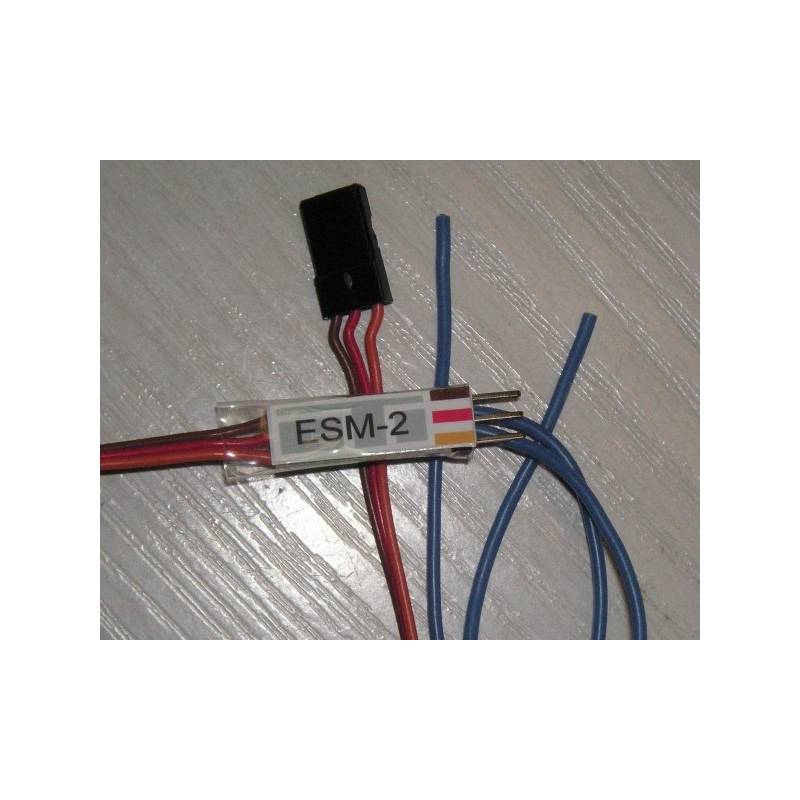

ESM-2 end-of-stroke module

Drive stop module by stroke end

This module makes it easy to install end-of-stroke contacts on a motor control provided by an Electronic Speed Controller (ESC). This module also works when the motor is a brushless motor.
The ESM-2 module is inserted between the radio controller receiver and the variable speed controller (or brushless controller)
The end-of-stroke contacts connect between the "minus" of the battery and one of the blue control wires of the ESM-2.
When one of the blue wires is in contact with the "minus", a direction of travel of the drive is stopped (the engine stops). The other direction of the drive remains available so that the motor can start again in the opposite direction.

Advantage:

• The end-of-stroke contacts are no longer subject to the passage of the power consumed by the engine.
• It is no longer necessary to use diodes on the end of stroke.
• This system also works with a motor and a brushless controller.
• the ESM-2 module and the end-of-stroke contacts are independent of the voltage and supply current of the drive.

Module dimensions: 20x8x3mm

End-of-stroke contacts are not delivered.

See the section "Switches and inters"
